Gs0 Series Series

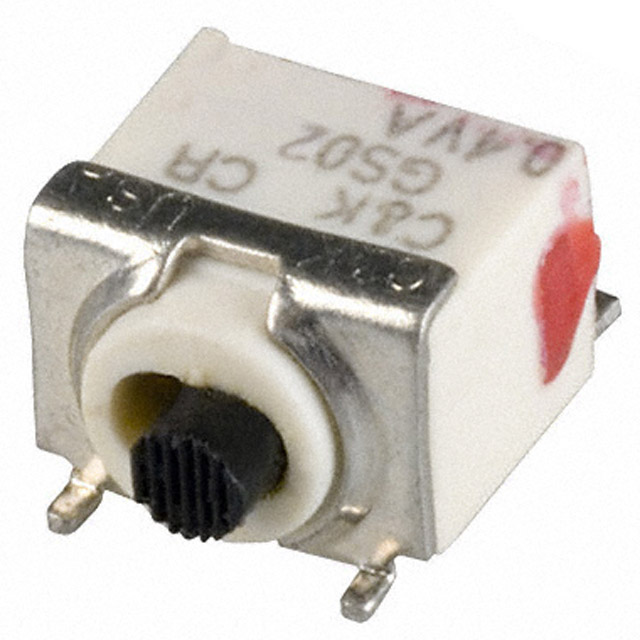

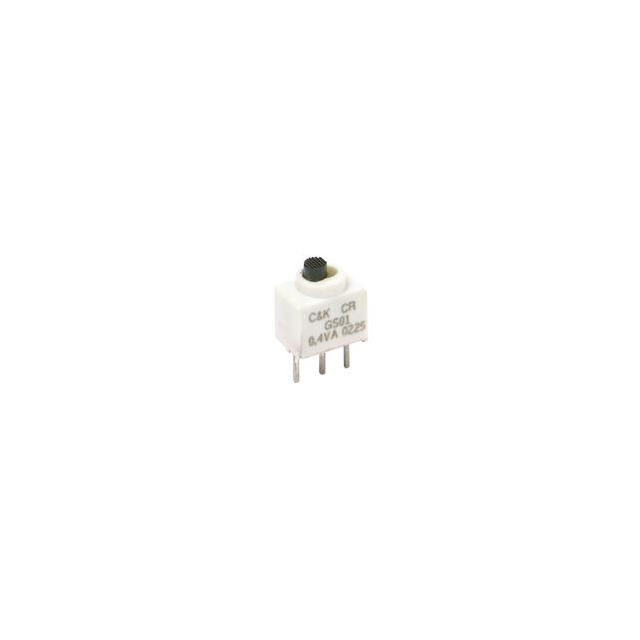

Sealed Ultraminiature Slide Switch Slide Switches Sw Gs01 Ultra Mini Slide

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Ultraminiature Slide Switch Slide Switches Sw Gs01 Ultra Mini Slide

Part	Actuator Material	Termination Style	Mounting Type	Current Rating (Amps)	Actuator Type	Contact Timing	Mechanical Life	Circuit	Contact Finish	Switch Function	Switch Travel [custom]	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Contact Material	Electrical Life	Features
Littelfuse/Commercial Vehicle Products GS01MSABE	Polyetherimide (PEI)	Gull Wing	Surface Mount Right Angle	0.4 VA	Standard	Not Specified	40000 Cycles	SPDT	Gold	On-On	1.27 mm	20 V	20 V	85 °C	-40 °C	1.27 mm	Copper	40000 Cycles	Epoxy Sealed Terminals
Littelfuse/Commercial Vehicle Products GS04MSABE	Polyetherimide (PEI)	Gull Wing	Surface Mount Right Angle	0.4 VA	Standard	Not Specified	40000 Cycles	SPST	Gold	On-Off	1.27 mm	20 V	20 V	85 °C	-40 °C	1.27 mm	Copper	40000 Cycles	Epoxy Sealed Terminals
Littelfuse/Commercial Vehicle Products GS02MSABE	Polyetherimide (PEI)	Gull Wing	Surface Mount Right Angle	0.4 VA	Standard	Not Specified	40000 Cycles	SPST	Gold	On-Off	1.27 mm	20 V	20 V	85 °C	-40 °C	1.27 mm	Copper	40000 Cycles	Epoxy Sealed Terminals

Catalog

Sealed Ultraminiature Slide Switch Slide Switches Sw Gs01 Ultra Mini Slide

Key Features

• Ultraminiature design saves PCB space

• Sealed construction, process compatible with most PCB wash processes

• Available in thru-hole and surface mount

• Long life contact design

Description

C&K’s GS series sealed ultraminiature slide switches are typically found in the computer peripherals & network products, test & measurement equipment and telephone & cable modem industries. Featuring an ultraminiature design that saves PCB space, the GS series have sealed construction, processes compatible with most PCB wash processes, long-life contact design and are available in thru-hole or surface mount options.
