1734839 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN FPC TOP 48POS 0.5MM R/A

Part	Voltage Rating	Termination	Contact Material	Pitch [x]	Pitch [x]	Locking Feature	Height Above Board [z]	Height Above Board [z]	Number of Positions	Current Rating (Amps)	Flat Flex Type	Actuator Material	Housing Color	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness	Mounting Type	Contact Finish Thickness	Cable End Type	Housing Material	Features	Contact Finish	Actuator Color	Material Flammability Rating
TE Connectivity Raychem Cable Protection 4-1734839-8	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	48	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0
TE Connectivity Raychem Cable Protection 4-1734839-7	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm		0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0
TE Connectivity Raychem Cable Protection 2-1734839-2	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	22 positions	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0
TE Connectivity Raychem Cable Protection 2-1734839-1	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	21	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0
TE Connectivity Raychem Cable Protection 4-1734839-5	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	45	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0
TE Connectivity Raychem Cable Protection 5-1734839-0	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	50	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0

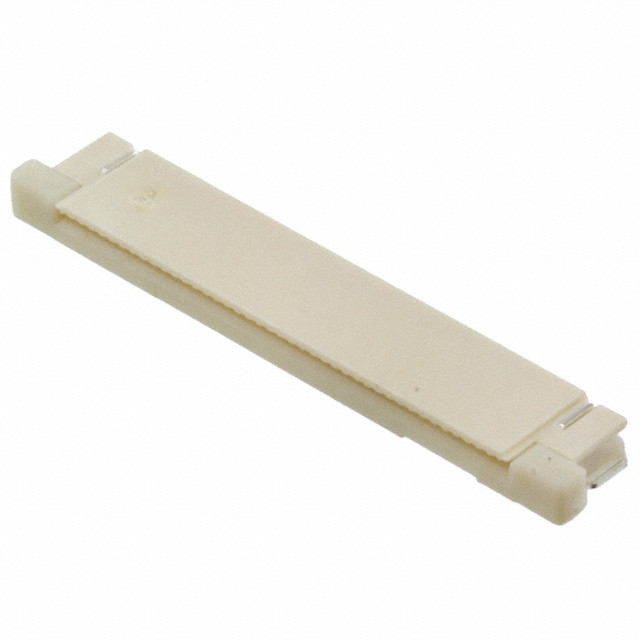

TE Connectivity Raychem Cable Protection 4-1734839-1	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	41	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0

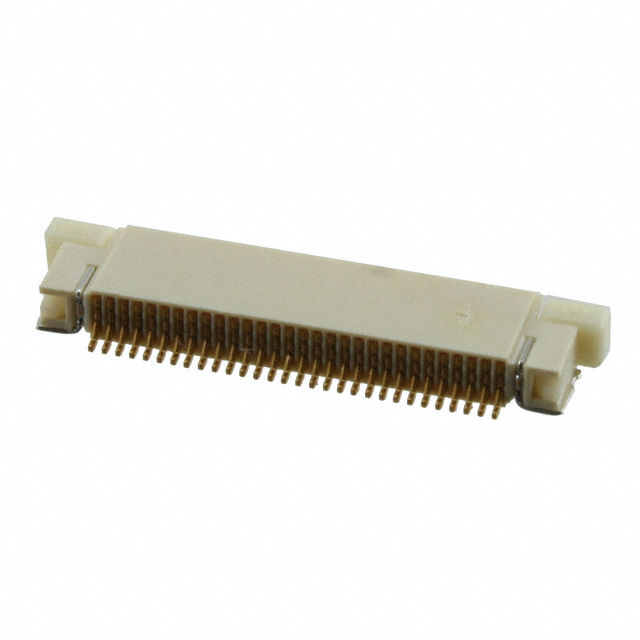

TE Connectivity Raychem Cable Protection 3-1734839-0	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	30	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0
TE Connectivity Raychem Cable Protection 3-1734839-9	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	39	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0

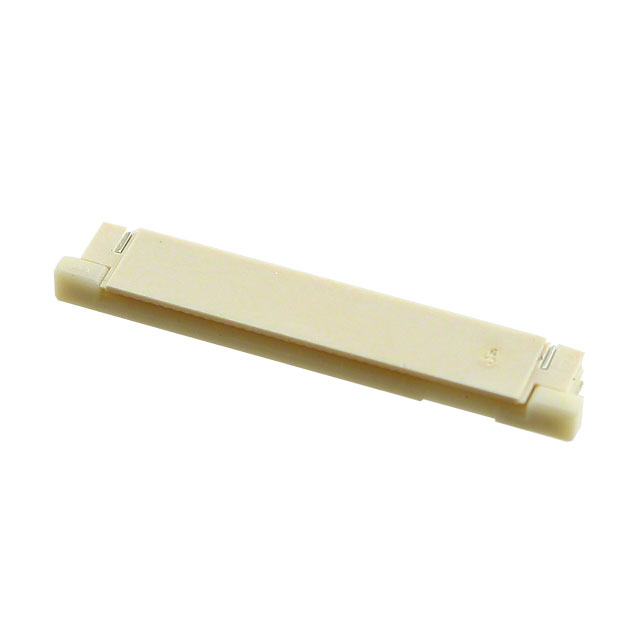

TE Connectivity Raychem Cable Protection 4-1734839-0	250 VDC	Solder	Phosphor Bronze	0.5 mm	0.02 in	Slide Lock	0.081 in	2.05 mm	40	0.5 A	FPC	Thermoplastic	Natural	Contacts Top	85 °C	-20 C	0.3 mm	Surface Mount Right Angle	Flash	Tapered	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Gold	Ivory	UL94 V-0
