TPS56921 Series
Manufacturer: Texas Instruments
Beta
⌘K

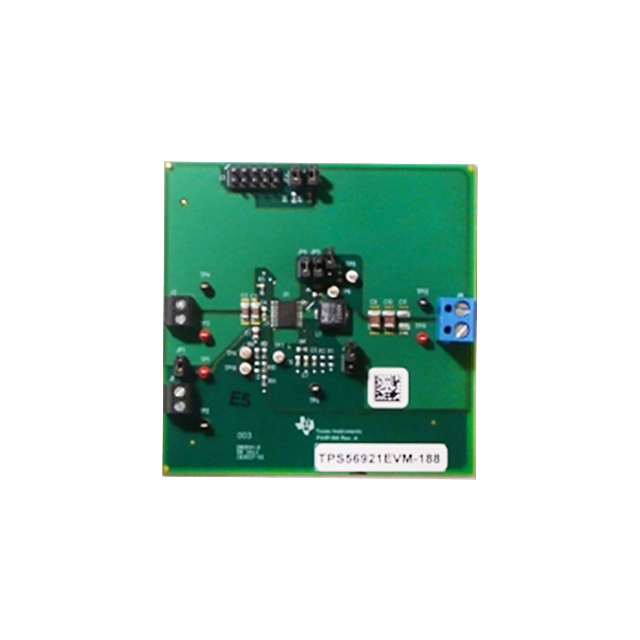

MODULE EVAL FOR TPS56921-188
| Part | Current - Output | Regulator Topology | Voltage - Output | Supplied Contents | Utilized IC / Part | Outputs and Type | Outputs and Type | Main Purpose | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Output Type | Output Configuration | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Supplier Device Package | Function | Synchronous Rectifier | Package / Case | Package / Case [custom] | Package / Case | Voltage - Input (Max) [Max] | Frequency - Switching [Min] | Frequency - Switching [Max] | Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 9 A | Buck | 1.1 V | Board(s) | TPS56921 | Non-Isolated | 1 | DC/DC Step Down | 500 kHz | 17 V | 4.5 V | Fully Populated | |||||||||||||||||||
Texas Instruments | 9 A | 0.72 V | 1.48 V | Adjustable (Programmable) | Positive | Surface Mount | -40 °C | 125 ¯C | 4.5 V | 1 | 20-HTSSOP | Step-Down | 20-PowerTSSOP | 4.4 mm | 0.173 in | 17 V | 200 kHz | 1.6 MHz | Buck | ||||||||||||
Texas Instruments | 9 A | 0.72 V | 1.48 V | Adjustable (Programmable) | Positive | Surface Mount | -40 °C | 125 ¯C | 4.5 V | 1 | 20-HTSSOP | Step-Down | 20-PowerTSSOP | 4.4 mm | 0.173 in | 17 V | 200 kHz | 1.6 MHz | Buck |
