H679 Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 4.94"L X 2.75"W

Part	Weight	Weight	Container Type	Material Flammability Rating	Thickness	Thickness	Color	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Features	Ratings	Material	Area (L x W)	Area (L x W)

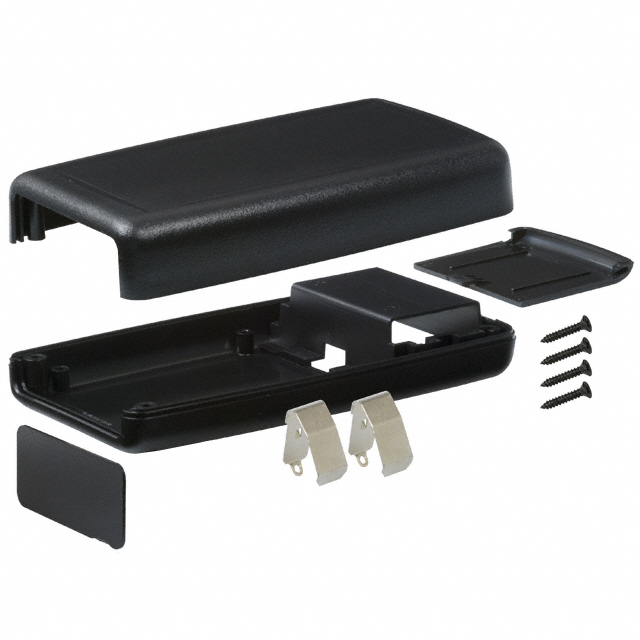

Serpac H679V,BK	58.97 g	0.13 lbs	Box	UL94 HB	0.08 in	2.03 mm	Black	32.51 mm	1.28 in	125.48 mm	4.94 "	2.75 in	69.85 mm	Battery Compartment PCB Supports	9 V	IP40	ABS Plastic	13.6 in˛	88 cm²

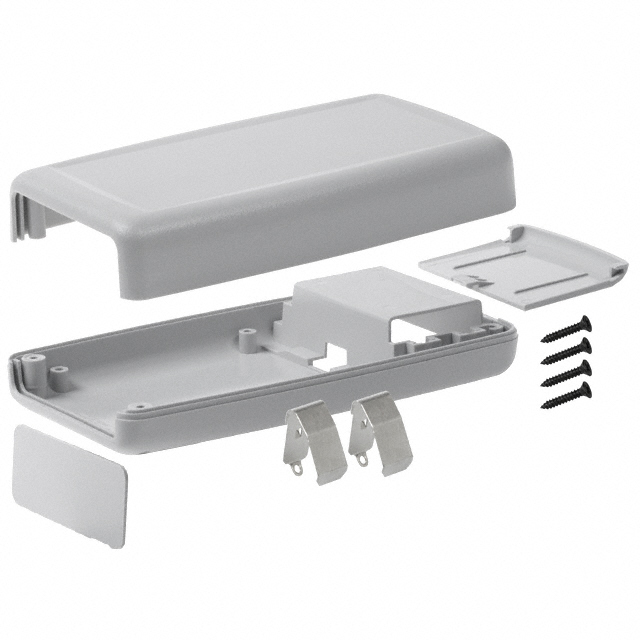

Serpac H679V,GY	58.97 g	0.13 lbs	Box	UL94 HB	0.08 in	2.03 mm	Gray	32.51 mm	1.28 in	125.48 mm	4.94 "	2.75 in	69.85 mm	Battery Compartment PCB Supports	9 V	IP40	ABS Plastic	13.6 in˛	88 cm²

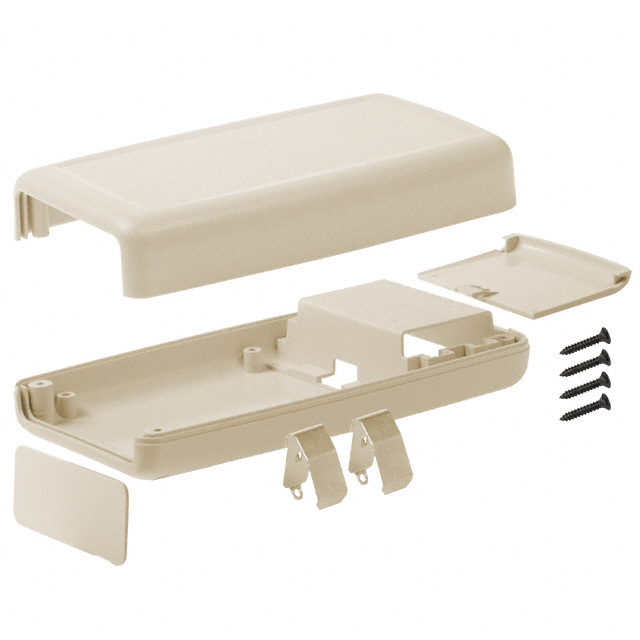

Serpac H679V,AL	58.97 g	0.13 lbs	Box	UL94 HB	0.08 in	2.03 mm	Almond	32.51 mm	1.28 in	125.48 mm	4.94 "	2.75 in	69.85 mm	Battery Compartment PCB Supports	9 V	IP40	ABS Plastic	13.6 in˛	88 cm²
