VOL628 Series

Catalog

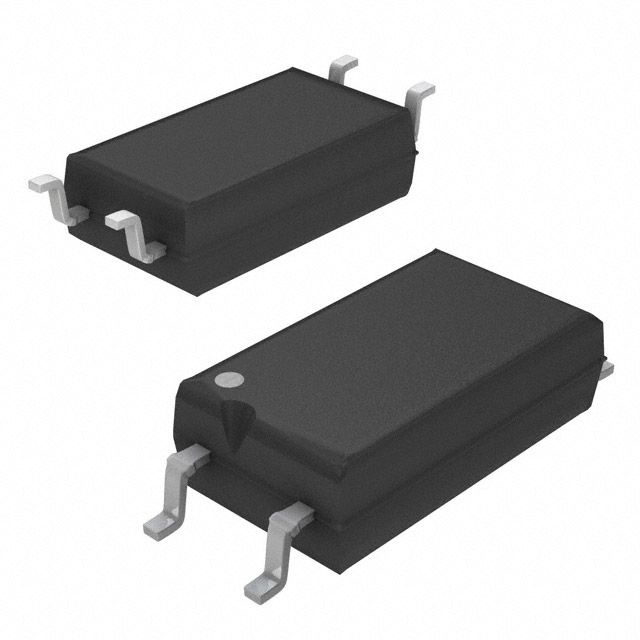

OPTOISOLATOR 5KV 1CH TRANS 4-SOP

Part	Current Transfer Ratio (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Vce Saturation (Max) [Max]	Package / Case	Current Transfer Ratio (Min)	Rise / Fall Time (Typ)	Current - Output / Channel [custom]	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Number of Channels [custom]	Output Type	Current Transfer Ratio (Max)	Current Transfer Ratio (Min) [Min]
Vishay Semiconductor Opto Division VOL628AT	600 %	-55 C	110 °C	6 µs	5.5 µs	400 mV	4-SMD Gull Wing	50 %	3.5 µs 5 µs	50 mA	Surface Mount	4-SOP	1.16 V	60 mA	1	Transistor
Vishay Semiconductor Opto Division VOL628A-2T		-55 C	110 °C	6 µs	5.5 µs	400 mV	4-SMD Gull Wing	63 %	3.5 µs 5 µs	50 mA	Surface Mount	4-SOP	1.16 V	60 mA	1	Transistor	125 %
Vishay Semiconductor Opto Division VOL628A-2X001T		-55 C	110 °C	6 µs	5.5 µs	400 mV	4-SMD Gull Wing	63 %	3.5 µs 5 µs	50 mA	Surface Mount	4-SOP	1.16 V	60 mA	1	Transistor	125 %
Vishay Semiconductor Opto Division VOL628A-3T		-55 C	110 °C	6 µs	5.5 µs	400 mV	4-SMD Gull Wing		3.5 µs 5 µs	50 mA	Surface Mount	4-SOP	1.16 V	60 mA	1	Transistor	200 %	100 %
Vishay Semiconductor Opto Division VOL628A-3X001T		-55 C	110 °C	6 µs	5.5 µs	400 mV	4-SMD Gull Wing		3.5 µs 5 µs	50 mA	Surface Mount	4-SOP	1.16 V	60 mA	1	Transistor	200 %	100 %
