QJ6016RH6 Series

Alternistor High Tj 600V 16A TO220R

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Alternistor High Tj 600V 16A TO220R

Part	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Package / Case	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Triac Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Supplier Device Package	Current - On State (It (RMS)) (Max)	Current - Gate Trigger (Igt) (Max) [Max] [custom]
Littelfuse/Commercial Vehicle Products QJ6016RH3TP	600 V	167 A 200 A	TO-220-3	35 mA	20 mA	Single	150 °C	-40 °C	Through Hole	Alternistor - Snubberless	1.3 V	TO-220AB	16 A

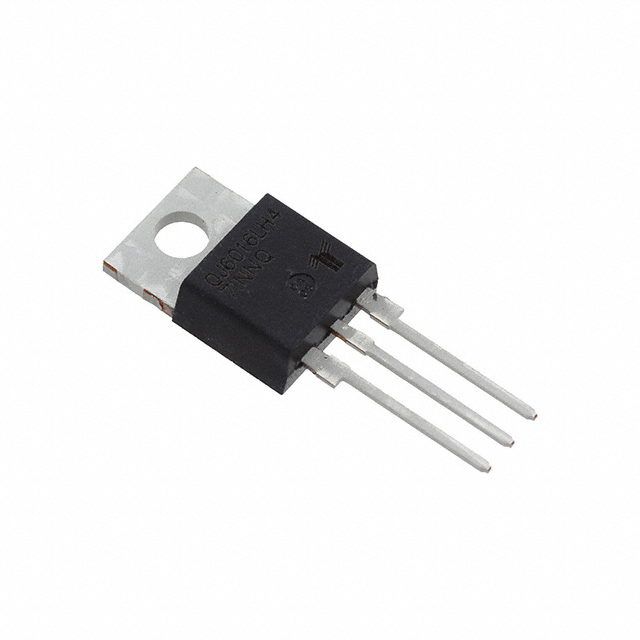

Littelfuse/Commercial Vehicle Products QJ6016LH4TP	600 V	167 A 200 A	TO-220-3 Isolated Tab	50 mA	35 mA	Single	150 °C	-40 °C	Through Hole	Alternistor - Snubberless	1.3 V	ITO-220AB	16 A

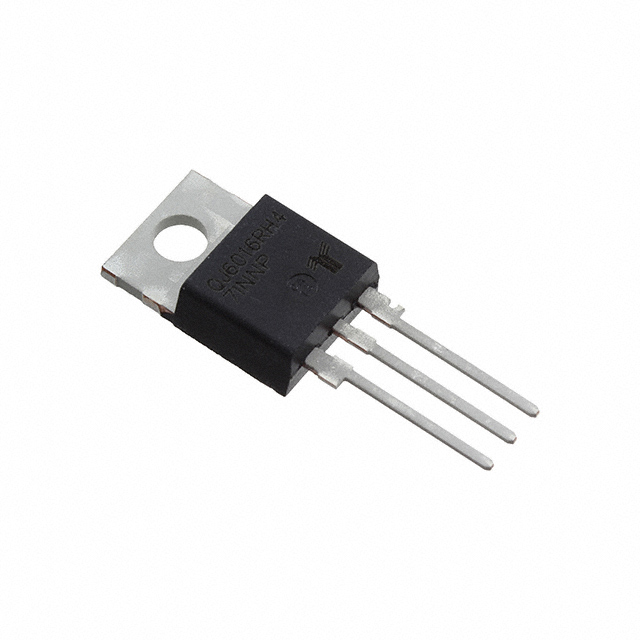

Littelfuse/Commercial Vehicle Products QJ6016RH4TP	600 V	167 A 200 A	TO-220-3	50 mA	35 mA	Single	150 °C	-40 °C	Through Hole	Alternistor - Snubberless	1.3 V	TO-220AB	16 A
Littelfuse/Commercial Vehicle Products QJ6016RH6TP	600 V	167 A 200 A	TO-220-3	70 mA		Single	150 °C	-40 °C	Through Hole	Alternistor - Snubberless	1.3 V	TO-220AB	16 A	80 mA
Littelfuse/Commercial Vehicle Products QJ6016NH3RP	600 V	167 A 200 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	35 mA	20 mA	Single	150 °C	-40 °C	Surface Mount	Alternistor - Snubberless	1.3 V	TO-263 (D2PAK)	16 A
Littelfuse/Commercial Vehicle Products QJ6016NH6RP	600 V	167 A 200 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	70 mA		Single	150 °C	-40 °C	Surface Mount	Alternistor - Snubberless	1.3 V	TO-263 (D2PAK)	16 A	80 mA
Littelfuse/Commercial Vehicle Products QJ6016RH2TP	600 V	167 A 200 A	TO-220-3	15 mA	10 mA	Single	150 °C	-40 °C	Through Hole	Alternistor - Snubberless	1.3 V	TO-220AB	16 A
Littelfuse/Commercial Vehicle Products QJ6016LH6TP	600 V	167 A 200 A	TO-220-3 Isolated Tab	70 mA		Single	150 °C	-40 °C	Through Hole	Alternistor - Snubberless	1.3 V	ITO-220AB	16 A	80 mA

Catalog

Alternistor High Tj 600V 16A TO220R

Key Features

• High TJ of 150°C

• Voltage capability up to 600 V

• Surge capability of 200 A

• Mechanically and thermally robust TO-220 clip-attach assembly

• Internally-isolated TO-220 package

• Halogen free and RoHS compliant

Description

This 16A high temperature Alternistor TRIAC, offered in TO-220AB, TO-220 isolated and TO-263 package, has 150C maximum junction temperature and 200A ITSM(60Hz). This series enables easier thermal management and higher surge handling capability in AC power control applications such as heater control, motor speed control, lighting controls, and static switching relays. Alternistor TRIAC operates in quadrants I, II, & III and offers high performance in applications requiring high commutation capability.
