391-086 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Card Type	Color	Termination	Mounting Type	Contact Type	Number of Positions	Pitch	Pitch	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Number of Rows [custom]	Read Out	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 391-086-522-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Through Hole	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43
EDAC Inc. 391-086-524-202	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Through Hole	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 391-086-556-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Board Edge Straddle Mount	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43				Card Extender
EDAC Inc. 391-086-556-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Through Hole	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Card Extender
EDAC Inc. 391-086-560-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Board Edge Straddle Mount	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43				Card Extender
EDAC Inc. 391-086-520-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Through Hole	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
EDAC Inc. 391-086-520-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Through Hole	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43	Floating Bobbin Flush Mount	2.95 mm	0.116 "

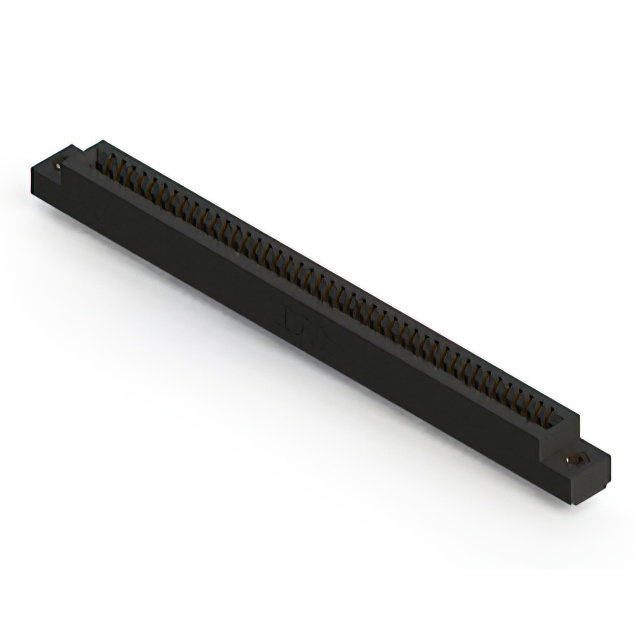

EDAC Inc. 391-086-524-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Through Hole	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 391-086-555-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder Eyelet(s)	Board Edge Straddle Mount	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43				Card Extender
EDAC Inc. 391-086-521-208	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Black	Solder	Through Hole	Semi Bellows	86	0.1 "	2.54 mm	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Copper Alloy	Gold	2	Dual	43	4-40 Flush Mount Threaded Insert Top Opening
