745-046 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 46POS 0.100

Part	Material - Insulation	Termination Rows	Number of Positions	Card Type	Number of Positions/Bay/Row	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Read Out	Color	Contact Material	Termination	Pitch	Pitch	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows [custom]	Number of Rows [custom]

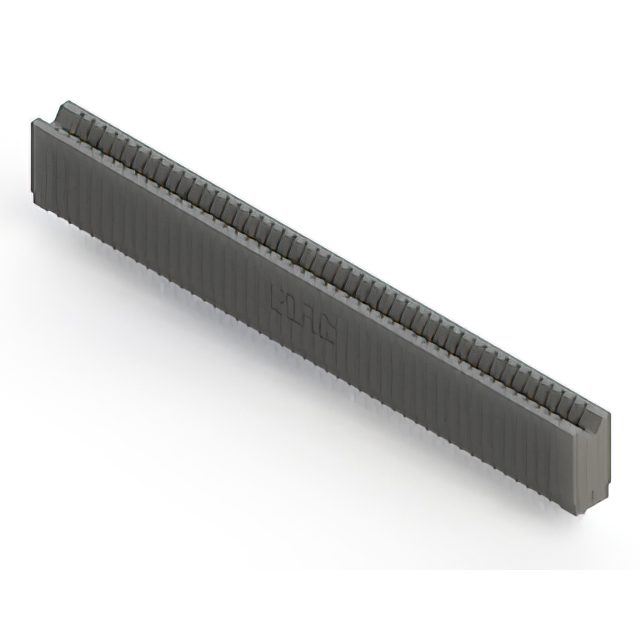

EDAC Inc. 745-046-525-106	Polyester Thermoplastic	1	46	Non Specified - Single Edge	46	Gold	Cantilever	30 Áin	0.76 Ám	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	Press-Fit	0.1 "	2.54 mm	Female	-40 C	105 ░C

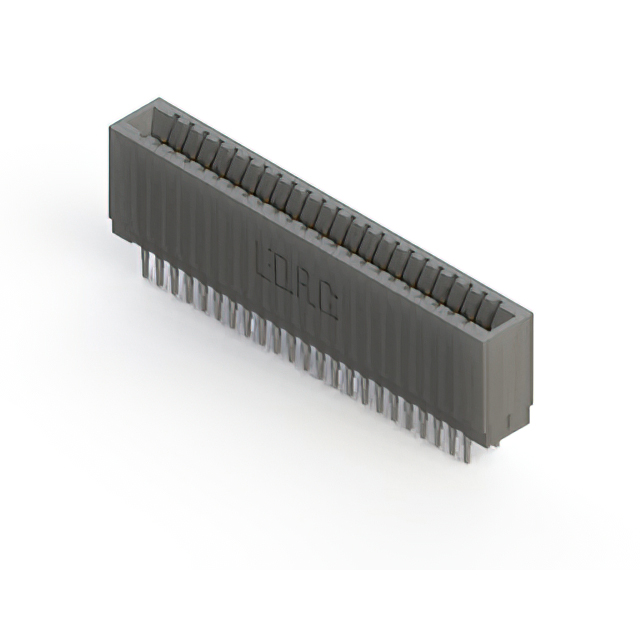

EDAC Inc. 745-046-545-201	Polyester Thermoplastic		46	Non Specified - Dual Edge	23	Gold	Cantilever	30 Áin	0.76 Ám		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Black	Copper Alloy	Press-Fit	0.1 "	2.54 mm	Female	-40 C	105 ░C	2	2
EDAC Inc. 745-046-540-206	Polyester Thermoplastic		46	Non Specified - Dual Edge	23	Gold	Cantilever	30 Áin	0.76 Ám		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Black	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	Female	-40 C	105 ░C	2	2
EDAC Inc. 745-046-541-101	Polyester Thermoplastic	1	46	Non Specified - Single Edge	46	Gold	Cantilever	30 Áin	0.76 Ám	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	Female	-40 C	105 ░C

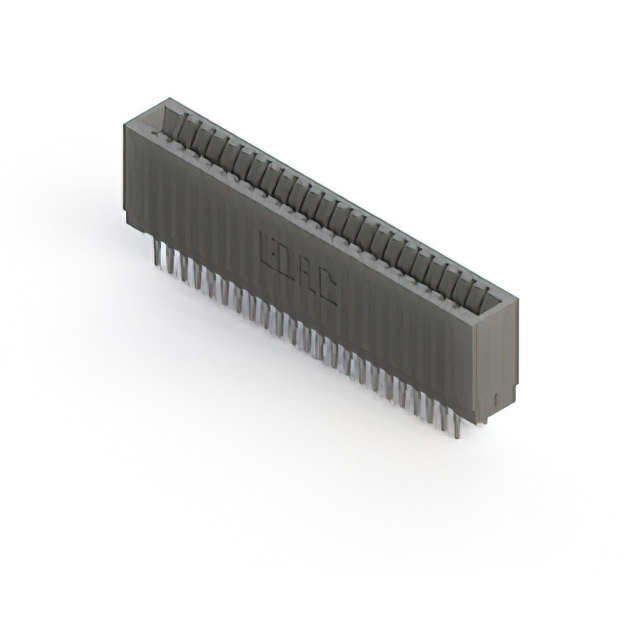

EDAC Inc. 745-046-541-201	Polyester Thermoplastic		46	Non Specified - Dual Edge	23	Gold	Cantilever	30 Áin	0.76 Ám		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Black	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	Female	-40 C	105 ░C	2	2
EDAC Inc. 745-046-545-206	Polyester Thermoplastic		46	Non Specified - Dual Edge	23	Gold	Cantilever	30 Áin	0.76 Ám		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Black	Copper Alloy	Press-Fit	0.1 "	2.54 mm	Female	-40 C	105 ░C	2	2
EDAC Inc. 745-046-522-201	Polyester Thermoplastic		46	Non Specified - Dual Edge	23	Gold	Cantilever	30 Áin	0.76 Ám		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Black	Copper Alloy	Press-Fit	0.1 "	2.54 mm	Female	-40 C	105 ░C	2	2
EDAC Inc. 745-046-540-201	Polyester Thermoplastic		46	Non Specified - Dual Edge	23	Gold	Cantilever	30 Áin	0.76 Ám		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Black	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	Female	-40 C	105 ░C	2	2
EDAC Inc. 745-046-540-106	Polyester Thermoplastic	1	46	Non Specified - Single Edge	46	Gold	Cantilever	30 Áin	0.76 Ám	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	Female	-40 C	105 ░C
EDAC Inc. 745-046-541-106	Polyester Thermoplastic	1	46	Non Specified - Single Edge	46	Gold	Cantilever	30 Áin	0.76 Ám	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	Female	-40 C	105 ░C
