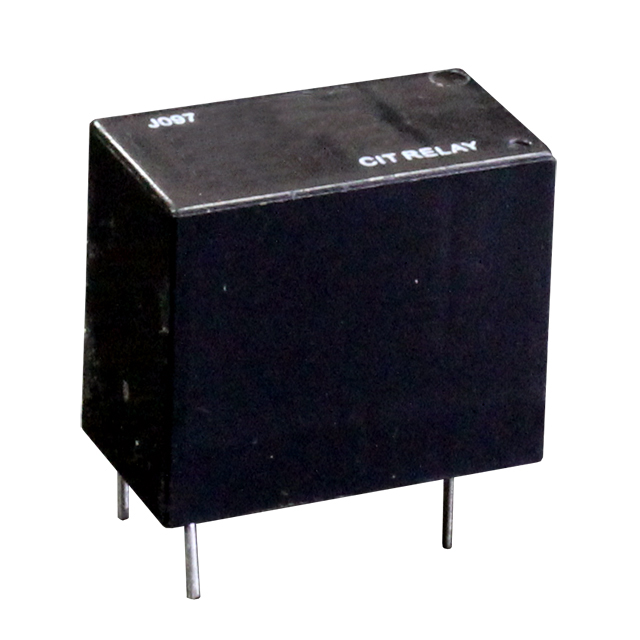

J0971CS Series

Catalog

RELAY GEN PURPOSE SPDT 10A 5V

Part	Coil Resistance	Contact Form	Contact Rating (Current)	Switching Voltage [Max]	Load - Max Switching	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Seal Rating	Operate Time	Contact Material	Coil Current	Coil Type	Coil Voltage	Relay Type	Termination Style	Release Time	Must Release Voltage
CIT Relay and Switch J0971CS5VDC.45	55 Ohms	SPDT (1 Form C)	10 A	277 VAC	2770 VA	3.75 VDC	-55 C	125 °C	Through Hole	Sealed - Fully	10 ms	Silver Tin Oxide (AgSnO)	90.9 mA	Non Latching	5 VDC	General Purpose	PC Pin	10 ms	0.5 VDC
CIT Relay and Switch J0971CS9VDC.45	180 Ohms	SPDT (1 Form C)	10 A	277 VAC	2770 VA	6.75 VDC	-55 C	85 °C	Through Hole	Sealed - Fully	10 ms	Silver Nickel (AgNi)	50 mA	Non Latching	9 VDC	General Purpose	PC Pin	10 ms	0.9 VDC

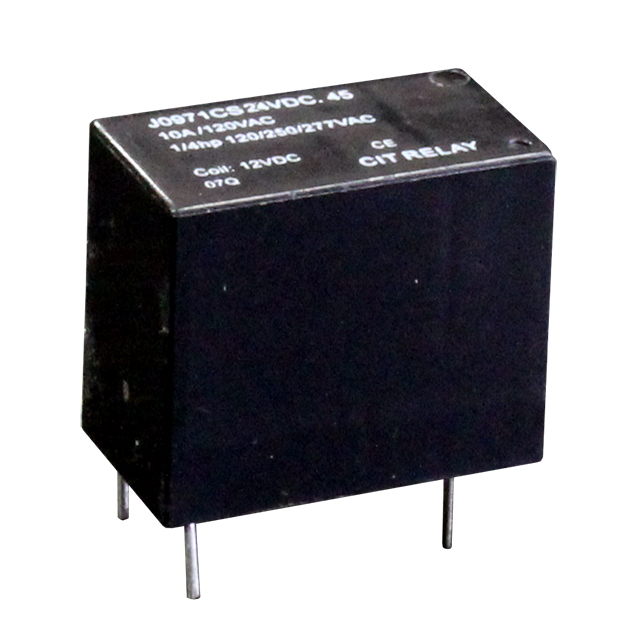

CIT Relay and Switch J0971CS24VDC.45	1280 Ohms	SPDT (1 Form C)	10 A	277 VAC	2770 VA	18 VDC	-55 C	125 °C	Through Hole	Sealed - Fully	10 ms	Silver Tin Oxide (AgSnO)	18.8 mA	Non Latching	24 VDC	General Purpose	PC Pin	10 ms	2.4 VDC
CIT Relay and Switch J0971CS18VDC.45	720 Ohms	SPDT (1 Form C)	10 A	277 VAC	2770 VA	13.5 VDC	-55 C	85 °C	Through Hole	Sealed - Fully	10 ms	Silver Nickel (AgNi)	25 mA	Non Latching	18 VDC	General Purpose	PC Pin	10 ms	1.8 VDC
CIT Relay and Switch J0971CS48VDC.45	5.12 kOhms	SPDT (1 Form C)	10 A	277 VAC	2770 VA	36 VDC	-55 C	125 °C	Through Hole	Sealed - Fully	10 ms	Silver Tin Oxide (AgSnO)	9.4 mA	Non Latching	48 VDC	General Purpose	PC Pin	10 ms	4.8 VDC
CIT Relay and Switch J0971CS3VDC.45	20 Ohms	SPDT (1 Form C)	10 A	277 VAC	2770 VA	2.25 VDC	-55 C	85 °C	Through Hole	Sealed - Fully	10 ms	Silver Nickel (AgNi)	0.15 A	Non Latching		General Purpose	PC Pin	10 ms	0.3 VDC
CIT Relay and Switch J0971CS6VDC.45	80 Ohms	SPDT (1 Form C)	10 A	277 VAC	2770 VA	4.5 VDC	-55 C	85 °C	Through Hole	Sealed - Fully	10 ms	Silver Nickel (AgNi)	0.075 A	Non Latching		General Purpose	PC Pin	10 ms	0.6 VDC
