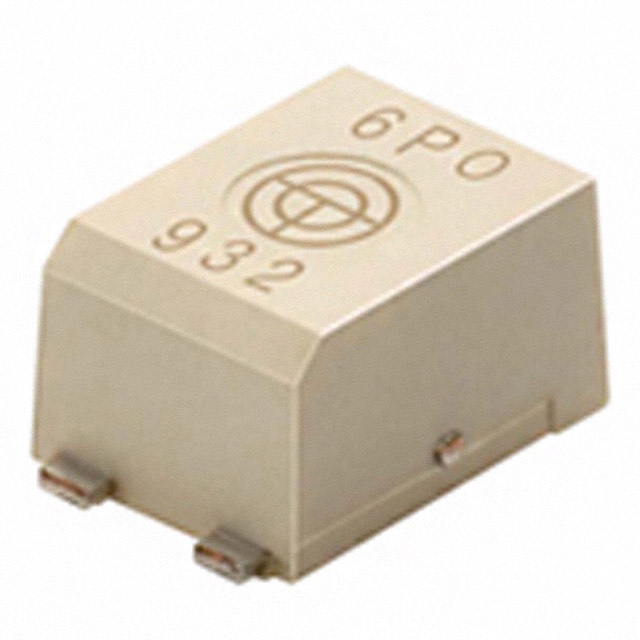

G3VM-21 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SSR RELAY SPST-NO 200MA 0-20V

Part	On-State Resistance (Max) [Max]	Mounting Type	Package / Case	Package / Case	Package / Case	Output Type	Load Current	Termination Style	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input	Voltage - Load [Max]	Package / Case

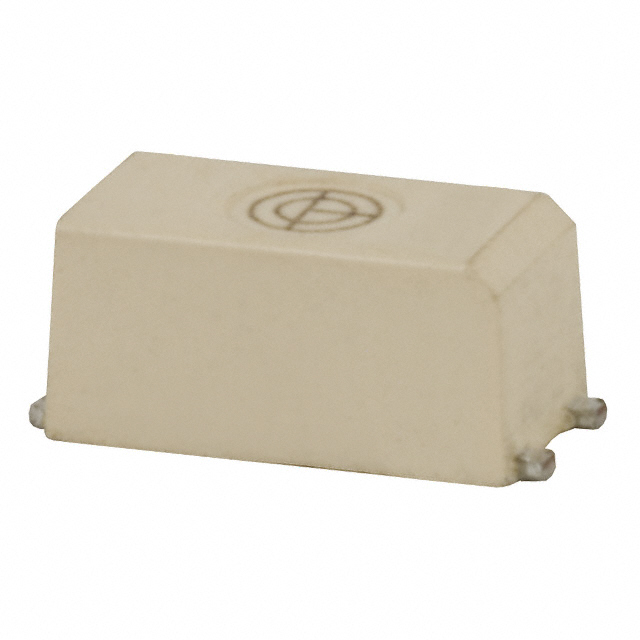

Omron Electronics Inc-EMC Div G3VM-21LR10(TR05)	5 Ohms	Surface Mount	0.165 in	4.2 mm	4-SMD	AC DC	200 mA	SMD (SMT) Tab	4-SSOP	85 °C	-40 °C	1.15 VDC	20 V

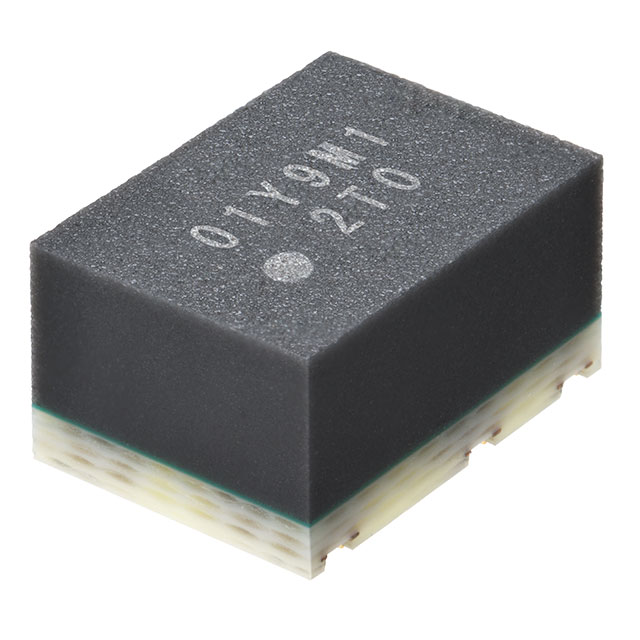

Omron Electronics Inc-EMC Div G3VM-21MT(TR01)	12 Ohm	Surface Mount			Module	AC DC	200 mA	SMD (SMT) Tab	Module	85 °C	-40 °C		20 V
Omron Electronics Inc-EMC Div G3VM-21PR10(TR)	5 Ohms	Surface Mount			4-SMD	AC DC	200 mA	SMD (SMT) Tab	4-USOP	85 °C	-40 °C	1.15 VDC	20 V
Omron Electronics Inc-EMC Div G3VM-21ERTR	50 mOhms	Surface Mount		0.3 in	6-SMD	AC DC	4 A	Gull Wing	6-SMD	85 °C	-40 °C	1.33 VDC	20 V	7.62 mm
Omron Electronics Inc-EMC Div G3VM-21PR10	5 Ohms	Surface Mount			4-SMD	AC DC	200 mA	SMD (SMT) Tab	4-USOP	85 °C	-40 °C	1.15 VDC	20 V
Omron Electronics Inc-EMC Div G3VM-21LR11-TR05		Surface Mount	0.165 in	4.2 mm	4-SMD	AC DC	900 mA	SMD (SMT) Tab	4-SSOP	85 °C	-40 °C	1.15 VDC	20 V

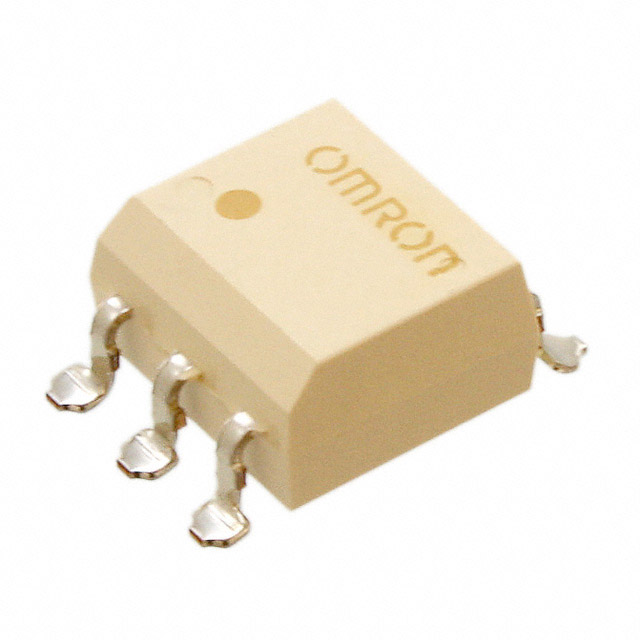

Omron Electronics Inc-EMC Div G3VM-21ER	50 mOhms	Surface Mount		0.3 in	6-SMD	AC DC	4 A	Gull Wing	6-SMD	85 °C	-40 °C	1.33 VDC	20 V	7.62 mm
Omron Electronics Inc-EMC Div G3VM-21LR1	1.2 Ohm	Surface Mount	0.165 in	4.2 mm	4-SMD	AC DC	450 mA	SMD (SMT) Tab	4-SSOP	85 °C	-40 °C	1.15 VDC	20 V
Omron Electronics Inc-EMC Div G3VM-21LR(TR10)		Surface Mount	0.165 in	4.2 mm	4-SMD	AC DC	160 mA	SMD (SMT) Tab	4-SSOP	85 °C	-40 °C	1.15 VDC	20 V
Omron Electronics Inc-EMC Div G3VM-21LR11		Surface Mount	0.165 in	4.2 mm	4-SMD	AC DC	900 mA	SMD (SMT) Tab	4-SSOP	85 °C	-40 °C	1.15 VDC	20 V
