GWCS8PM1.C Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

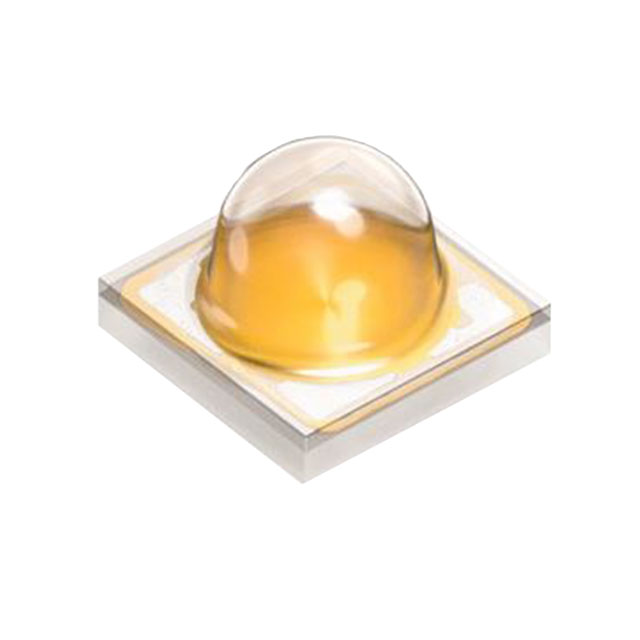

LED OSLON WARM WHT 2700K SMD
| Part | Thermal Resistance of Package | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | Mounting Type | Current - Max [Max] | CRI (Color Rendering Index) | Supplier Device Package | Viewing Angle | Flux @ 85°C, Current - Test [Min] | Flux @ 85°C, Current - Test [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | CCT (K) | Current - Test | Color | Flux @ 85°C, Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 5.25 °C/W | 101 lm/W | 2.85 V | Surface Mount | 1.3 A | 90 | SMD | 80 ° | 89 lm | 112 lm | 2-SMD No Lead Exposed Pad | 3 mm | 0.118 in | 3 mm | 0.118 " | 2700 K | 350 mA | Warm White | |
ams-OSRAM USA INC. | 5.25 °C/W | 109 lm/W | 2.85 V | Surface Mount | 1.3 A | 90 | SMD | 80 ° | 97 lm | 121 lm | 2-SMD No Lead | 3 mm | 0.118 in | 3 mm | 0.118 " | 3000 K | 350 mA | Warm White | |
ams-OSRAM USA INC. | 5.25 °C/W | 109 lm/W | 2.85 V | Surface Mount | 1.3 A | 90 | SMD | 80 ° | 97 lm | 121 lm | 2-SMD No Lead | 3 mm | 0.118 in | 3 mm | 0.118 " | 3500 K | 350 mA | Warm White | |
 ams-OSRAM USA INC. | 5.25 °C/W | 117 lm/W | 2.85 V | Surface Mount | 1.3 A | 90 | SMD | 80 ° | 104 lm | 130 lm | 2-SMD No Lead | 3 mm | 0.118 in | 3 mm | 0.118 " | 4000 K | 350 mA | Neutral White | 117 lm |
