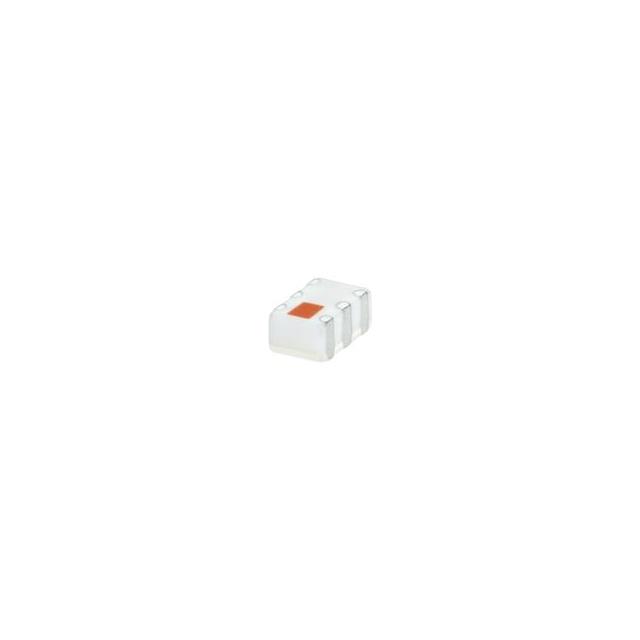

SCG-3 Series
Manufacturer: Mini-Circuits
Beta
⌘K
POWER SPLITTER
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Insertion Loss | Frequency [Min] | Frequency [Max] | Specifications [Min] | Specifications | Specifications [Max] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | 2.01 mm | 1.07 mm | 0.079 in | 0.049 " | 0.042 in | 1.24 mm | 1.2 dB | 2.7 GHz | 3.9 GHz | 14 dB | 13 Position | 10 ° | 6-SMD No Lead | |
 Mini-Circuits | 2 mm | 1.07 mm | 0.079 in | 0.049 " | 0.042 in | 1.25 mm | 1.2 dB | 4.4 GHz | 5.9 GHz | 13.5 dB | 13 Position | 10 ° | 0805 (2012 Metric) | 6 PC Pad |
Mini-Circuits | 2.01 mm | 1.07 mm | 0.079 in | 0.049 " | 0.042 in | 1.24 mm | 1.1 dB | 1.8 GHz | 2700 MHz | 11 dB | 13.5 dB | 10 ° | 6-SMD No Lead | |
Mini-Circuits | 2.01 mm | 0.85 mm | 0.079 in | 0.049 " | 0.033 in | 1.24 mm | 1.2 dB | 1.6 GHz | 2.6 GHz | 12.5 dB | 18 dB | 8.5 ° | 8-SMD No Lead | |
Mini-Circuits | 2 mm | 1.07 mm | 0.079 in | 0.049 " | 0.042 in | 1.25 mm | 1.2 dB | 900 MHz | 1.6 GHz | 0805 (2012 Metric) | 6 PC Pad |
