88777 Series
Manufacturer: Belden Inc.
Beta
⌘K

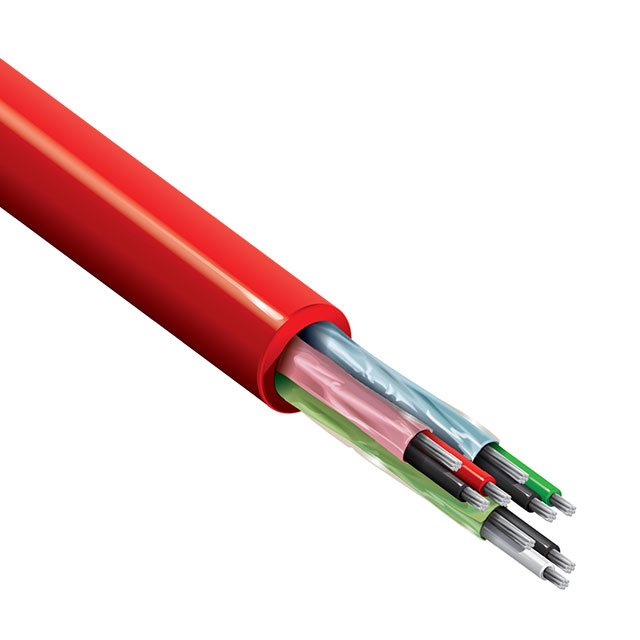

MULTI-PAIR 6COND 22AWG RED 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Number of Conductors | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Ratings | Jacket Color | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length | Length | Usage | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Fluorinated Ethylene-Propylene (FEP) | 6 | Multi-Pair | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Red | Drain Wire | 5.94 mm | 0.234 in | Foil | -70 °C | 200 °C | 100 ft | 30.5 m | 22 AWG | 30 AWG | 7 | Copper Tinned | ||||
 Belden Inc. | Aluminum | 100 % | Fluorinated Ethylene-Propylene (FEP) Plenum | 6 | Multi-Pair | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Red | Drain Wire | 5.94 mm | 0.234 in | Foil | -70 °C | 200 °C | 22 AWG | 30 AWG | 7 | Copper Tinned | 152.4 m | 500 ft | Audio Control Instrumentation | 300 VDC |
