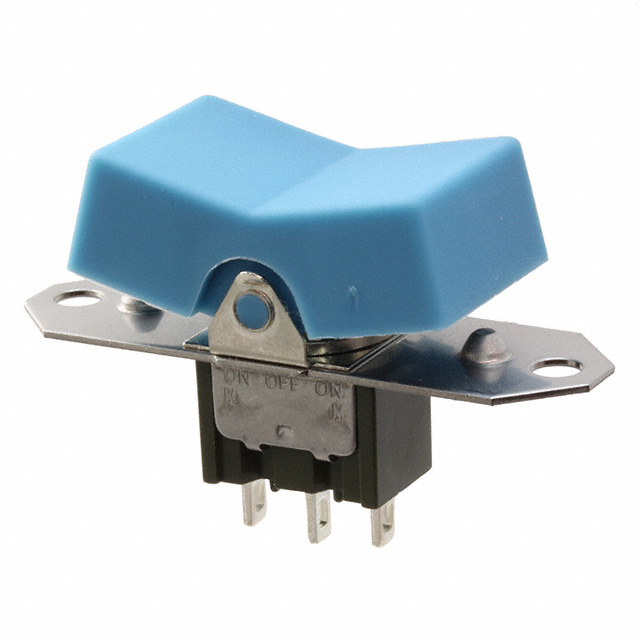

M2018TY Series

Catalog

SWITCH ROCKER SPDT 6A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Function	Current Rating (Amps)	Termination Style	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Circuit	Voltage Rating - AC	Features	Actuator Marking	Actuator Type	Color - Actuator/Cap
NKK Switches M2018TYW01-HB	50000 Cycles	25000 Steps	30 V	16 mm	28.5 mm	Mom-Off-Mom	3 A 6 A	Solder Lug	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	125 V	Epoxy Sealed Terminals	No Marking	Paddle	White
NKK Switches M2018TYW01-HH	50000 Cycles	25000 Steps	30 V	16 mm	28.5 mm	Mom-Off-Mom	3 A 6 A	Solder Lug	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	125 V	Epoxy Sealed Terminals	No Marking	Paddle
NKK Switches M2018TYG03-JA	50000 Cycles	50000 Cycles	28 V	16 mm	28.5 mm	Mom-Off-Mom	0.4 VA	PC Pin	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	28 V	Epoxy Sealed Terminals	No Marking	Concave	Black
NKK Switches M2018TYW01-JB	50000 Cycles	25000 Steps	30 V	16 mm	28.5 mm	Mom-Off-Mom	3 A 6 A	Solder Lug	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	125 V	Epoxy Sealed Terminals	No Marking	Concave	White
NKK Switches M2018TYW01-HA	50000 Cycles	25000 Steps	30 V	16 mm	28.5 mm	Mom-Off-Mom	3 A 6 A	Solder Lug	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	125 V	Epoxy Sealed Terminals	No Marking	Paddle	Black
NKK Switches M2018TYG03	50000 Cycles	50000 Cycles	28 V	16 mm	28.5 mm	Mom-Off-Mom	0.4 VA	PC Pin	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	28 V	Epoxy Sealed Terminals	Varies by Cap	Actuator Arm Cap Required

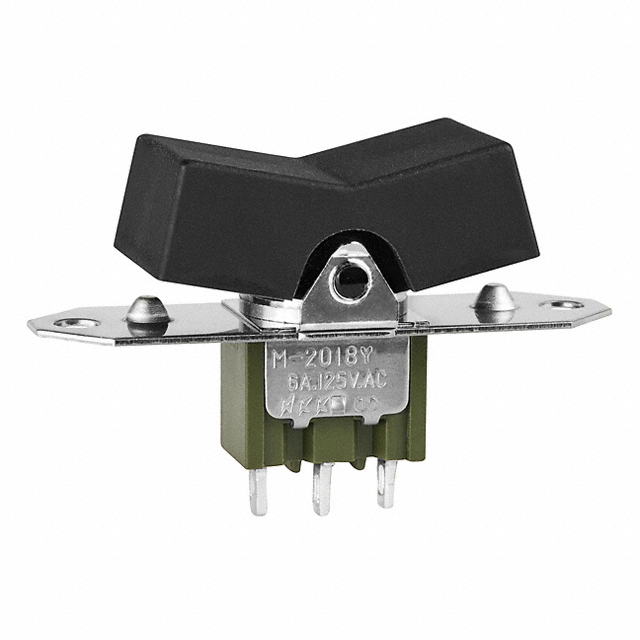

NKK Switches M2018TYW01-JA	50000 Cycles	25000 Steps	30 V	16 mm	28.5 mm	Mom-Off-Mom	3 A 6 A	Solder Lug	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	125 V	Epoxy Sealed Terminals	No Marking	Concave	Black
NKK Switches M2018TYG01	50000 Cycles	50000 Cycles	28 V	16 mm	28.5 mm	Mom-Off-Mom	0.4 VA	Solder Lug	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	28 V	Epoxy Sealed Terminals	Varies by Cap	Actuator Arm Cap Required
NKK Switches M2018TYG03-HC	50000 Cycles	50000 Cycles	28 V	16 mm	28.5 mm	Mom-Off-Mom	0.4 VA	PC Pin	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	28 V	Epoxy Sealed Terminals	No Marking	Paddle	Red
NKK Switches M2018TYW01	50000 Cycles	25000 Steps	30 V	16 mm	28.5 mm	Mom-Off-Mom	3 A 6 A	Solder Lug	CSA UL	85 °C	-30 ░C	Flange Panel Mount	SPDT	125 V	Epoxy Sealed Terminals	Varies by Cap	Actuator Arm Cap Required
