TA1-1F Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH TOGGLE SPDT 20A 12V
| Part | Electrical Life (Cycles) | Illumination | Current Rating | Voltage Rating - DC | Actuator Type | Circuit | Actuator Length | Mounting Type | Panel Cutout Diameter | Panel Cutout Shape | Bushing Thread Pitch | Bushing Thread | Bushing Thread Diameter | Switch Function | Quick Connect Size (0.250") | Termination Style | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

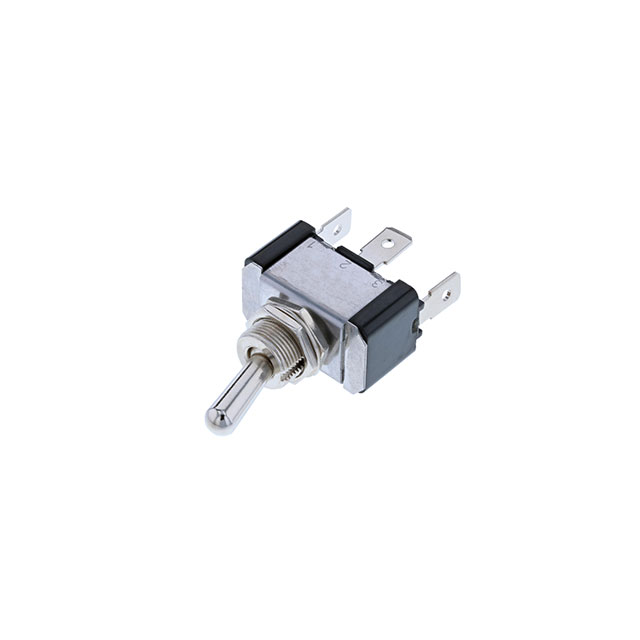

 Switch Components | 6000 Cycles | Non-Illuminated | 20 A | 12 V | Standard Round | SPDT | 16.5 mm | Panel Mount | 12.2 mm | Circular | 0.75 mm | M12 x 0.75 | 12 mm | On-Off-On | 0.25 in | Quick Connect | 0 °C | 65 °C |

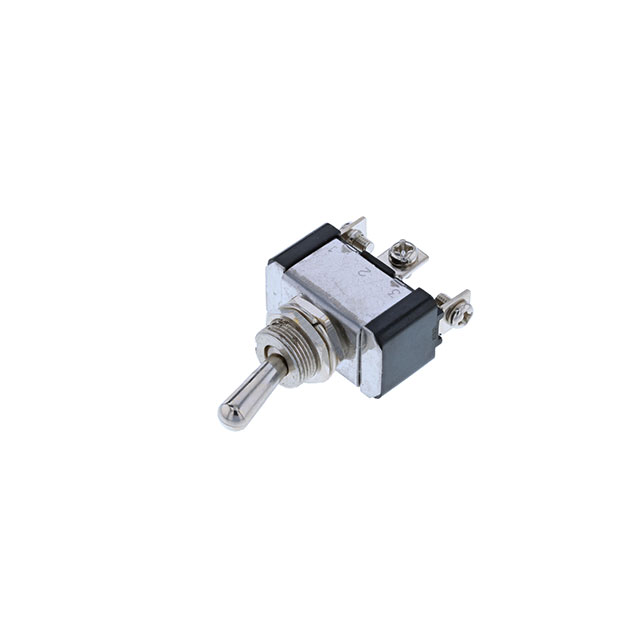

 Switch Components | 6000 Cycles | Non-Illuminated | 20 A | 12 V | Standard Round | SPDT | 16.5 mm | Panel Mount | 12.2 mm | Circular | 0.75 mm | M12 x 0.75 | 12 mm | On-Off-On | Screw Terminal | 0 °C | 65 °C |
