RT9080 Series

Catalog

IC REG LIN 1.8V 600MA TSOT23-5

Part	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Protection Features	Supplier Device Package	PSRR	Current - Quiescent (Iq)	Current - Output	Package / Case	Control Features	Mounting Type	Voltage Dropout (Max) [Max]	Voltage Dropout (Max)
Richtek USA Inc. RT9080-18GJ5	Positive	85 C	-40 ¯C	1	5.5 V	1.8 V	Over Current Over Temperature	TSOT-23-5	75 dB	4 çA	600 mA	SOT-23-5 Thin TSOT-23-5	Enable	Surface Mount	0.83 V

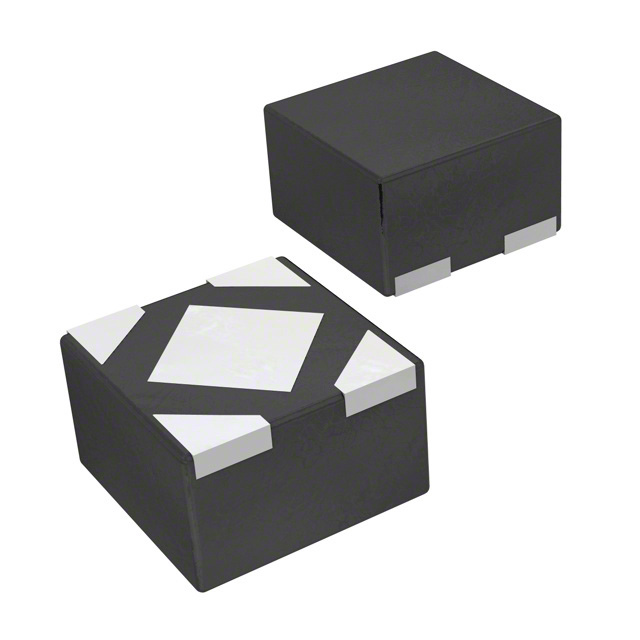

Richtek USA Inc. RT9080-12GQZ	Positive	85 C	-40 ¯C	1	5.5 V	1.2 V	Over Current Over Temperature	4-ZQFN (1x1)	75 dB	4 çA	600 mA	4-XDFN Exposed Pad	Enable	Surface Mount		1.03 V
Richtek USA Inc. RT9080-33GQZ	Positive	85 C	-40 ¯C	1	5.5 V	3.3 V	Over Current Over Temperature	4-ZQFN (1x1)	75 dB	4 çA	600 mA	4-XDFN Exposed Pad	Enable	Surface Mount	0.53 V
Richtek USA Inc. RT9080-28GJ5	Positive	85 C	-40 ¯C	1	5.5 V	2.8 V	Over Current Over Temperature Short Circuit	TSOT-23-5		4 çA	600 mA	SOT-23-5 Thin TSOT-23-5	Enable	Surface Mount	0.63 V
Richtek USA Inc. RT9080N-18GJ5	Positive	85 C	-40 ¯C	1	5.5 V	1.8 V	Over Current Over Temperature	TSOT-23-5	75 dB	4 çA	600 mA	SOT-23-5 Thin TSOT-23-5	Enable	Surface Mount	0.83 V
Richtek USA Inc. RT9080-12GJ5	Positive	85 C	-40 ¯C	1	5.5 V	1.2 V	Over Current Over Temperature Short Circuit	TSOT-23-5		4 çA	600 mA	SOT-23-5 Thin TSOT-23-5	Enable	Surface Mount		1.03 V
Richtek USA Inc. RT9080N-08GJ5	Positive	85 C	-40 ¯C	1	5.5 V	0.8 V	Over Current Over Temperature	TSOT-23-5	75 dB	4 çA	600 mA	SOT-23-5 Thin TSOT-23-5	Enable	Surface Mount		1.33 V
