284517 Series

Catalog

TERM BLOCK HDR 18POS VERT 3.81MM

Part	Voltage - UL	Current - UL	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Color	Material Flammability Rating	Contact Material	Mounting Type	Insulation Height	Insulation Height	Number of Levels	Contact Mating Finish	Number of Positions	Termination Style	Pitch [x]	Pitch [x]	Header Orientation	Type
TE Connectivity Raychem Cable Protection 1-284517-8	300 V	11 A	18	-40 °C	110 °C	Green	UL94 V-0	Phosphor Bronze	Through Hole	0.362 in	9.2 mm	1	Tin	18	Solder	0.15 in	3.81 mm	Vertical	Header Male Pins Shrouded (4 Side)
TE Connectivity Raychem Cable Protection 284517-3	300 V	11 A	3	-40 °C	110 °C	Green	UL94 V-0	Phosphor Bronze	Through Hole	0.362 in	9.2 mm	1	Tin		Solder	0.15 in	3.81 mm	Vertical	Header Male Pins Shrouded (4 Side)
TE Connectivity Raychem Cable Protection 284517-8	300 V	11 A	8	-40 °C	110 °C	Green	UL94 V-0	Phosphor Bronze	Through Hole	0.362 in	9.2 mm	1	Tin	8	Solder	0.15 in	3.81 mm	Vertical	Header Male Pins Shrouded (4 Side)
TE Connectivity Raychem Cable Protection 284517-6	300 V	11 A	6	-40 °C	110 °C	Green	UL94 V-0	Phosphor Bronze	Through Hole	0.362 in	9.2 mm	1	Tin	6	Solder	0.15 in	3.81 mm	Vertical	Header Male Pins Shrouded (4 Side)

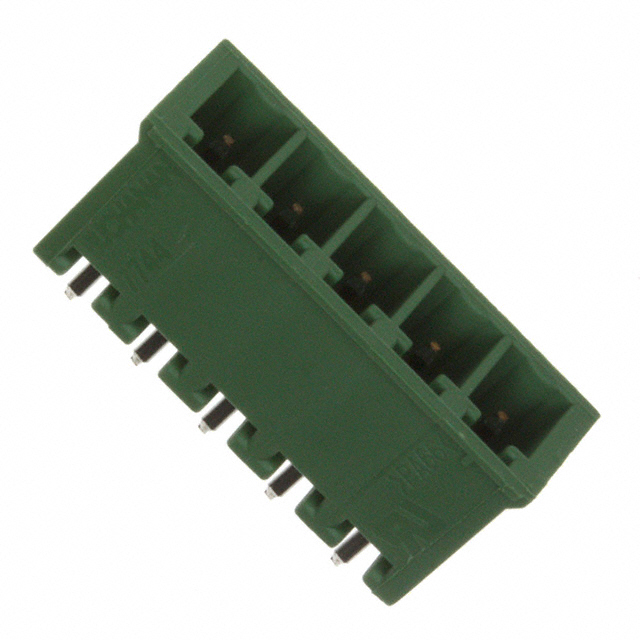

TE Connectivity Raychem Cable Protection 284517-5	300 V	11 A	5	-40 °C	110 °C	Green	UL94 V-0	Phosphor Bronze	Through Hole	0.362 in	9.2 mm	1	Tin		Solder	0.15 in	3.81 mm	Vertical	Header Male Pins Shrouded (4 Side)
