316516 Series

Catalog

CONN HEADER VERT 12POS 5.08MM

Part	Mounting Type	Style	Contact Finish - Post	Number of Rows	Number of Positions Loaded	Applications	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Insulation Material	Contact Material	Shrouding	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Shape	Number of Positions	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Mating	Connector Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]

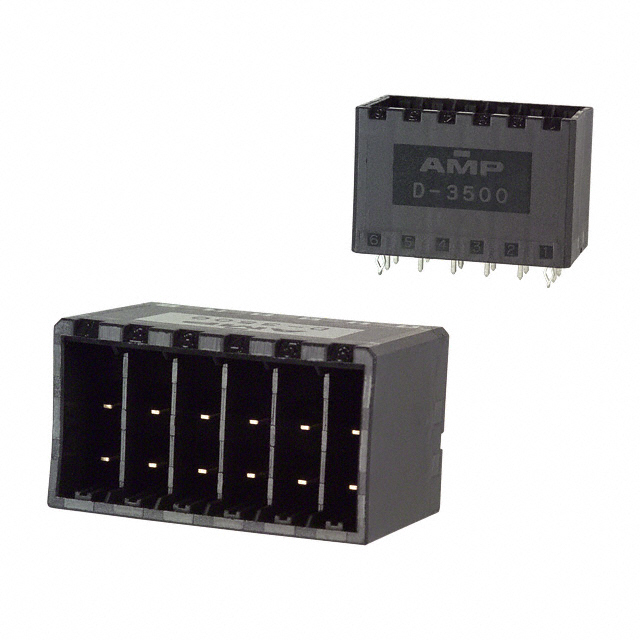

TE Connectivity Raychem Cable Protection 316516-3	Through Hole	Board to Board Cable	Tin	2	All	General Purpose Industrial	5.08 mm	0.2 "	UL94 V-0	Glass Filled Polyester Thermoplastic	Copper Alloy	Shrouded - 4 Wall	Solder	30 Áin	0.76 Ám	Black	Rectangular	12	0.85 in	21.59 mm	0.15 in	3.81 mm	Detent Lock	5.08 mm	0.2 in	Tab	Gold	Header	600 V	105 ░C	-55 °C

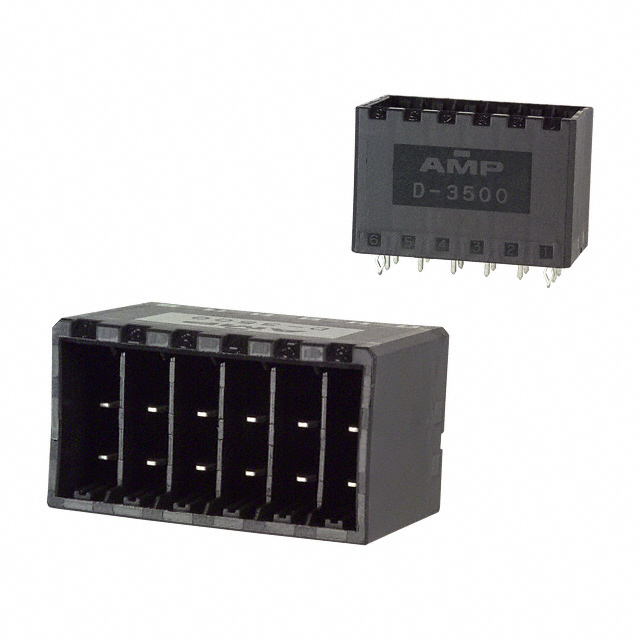

TE Connectivity Raychem Cable Protection 316516-5	Through Hole	Board to Board Cable	Tin	2	All	General Purpose Industrial	5.08 mm	0.2 "	UL94 V-0	Glass Filled Polyester Thermoplastic	Copper Alloy	Shrouded - 4 Wall	Solder	78.7 µin	2 µm	Black	Rectangular	12	0.85 in	21.59 mm	0.15 in	3.81 mm	Detent Lock	5.08 mm	0.2 in	Tab		Header	600 V	105 ░C	-55 °C
