2823076 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8P,2MM,BRK HDR,SRVT,2.8,SN,TB

Part	Insulation Height	Insulation Height	Number of Positions Loaded	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Overall Contact Length	Overall Contact Length	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Material Flammability Rating	Current Rating (Amps)	Shrouding	Number of Positions	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Connector Type	Contact Type	Contact Finish - Post	Insulation Material

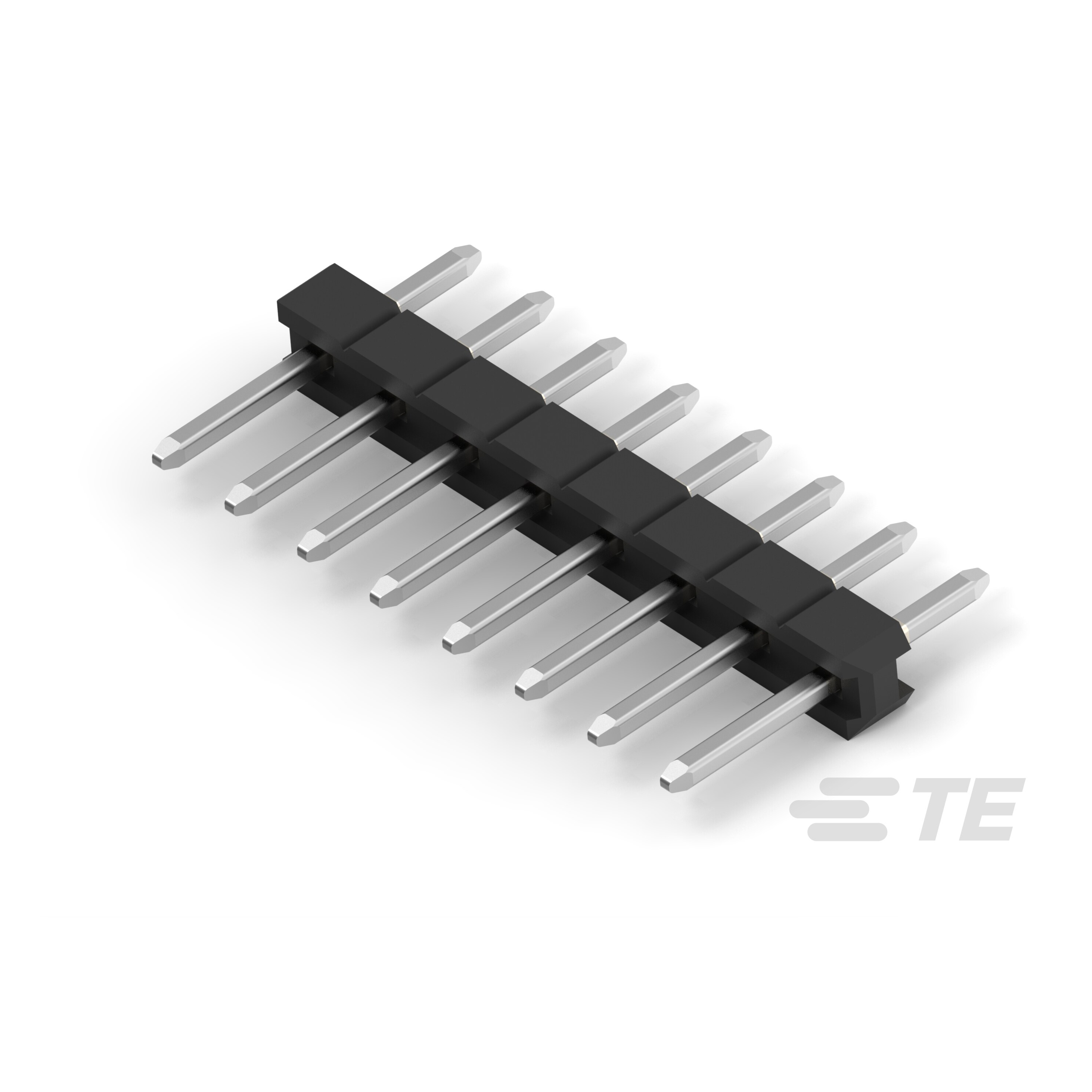

TE Connectivity Raychem Cable Protection 2823076-8	1.5 mm	0.059 "	All	Solder	4 mm	0.157 in	0.3 µm	12 µin	0.11 in	2.8 mm	Black	-40 °C	105 ░C	Phosphor Bronze	8.3 mm	0.327 in	Push-Pull	Through Hole	118.1 µin	3 µm	125 VAC	UL94 V-0	2 A	Unshrouded	8	1	0.079 in	2 mm	Square	Breakaway Header	Male Pin	Tin	Thermoplastic

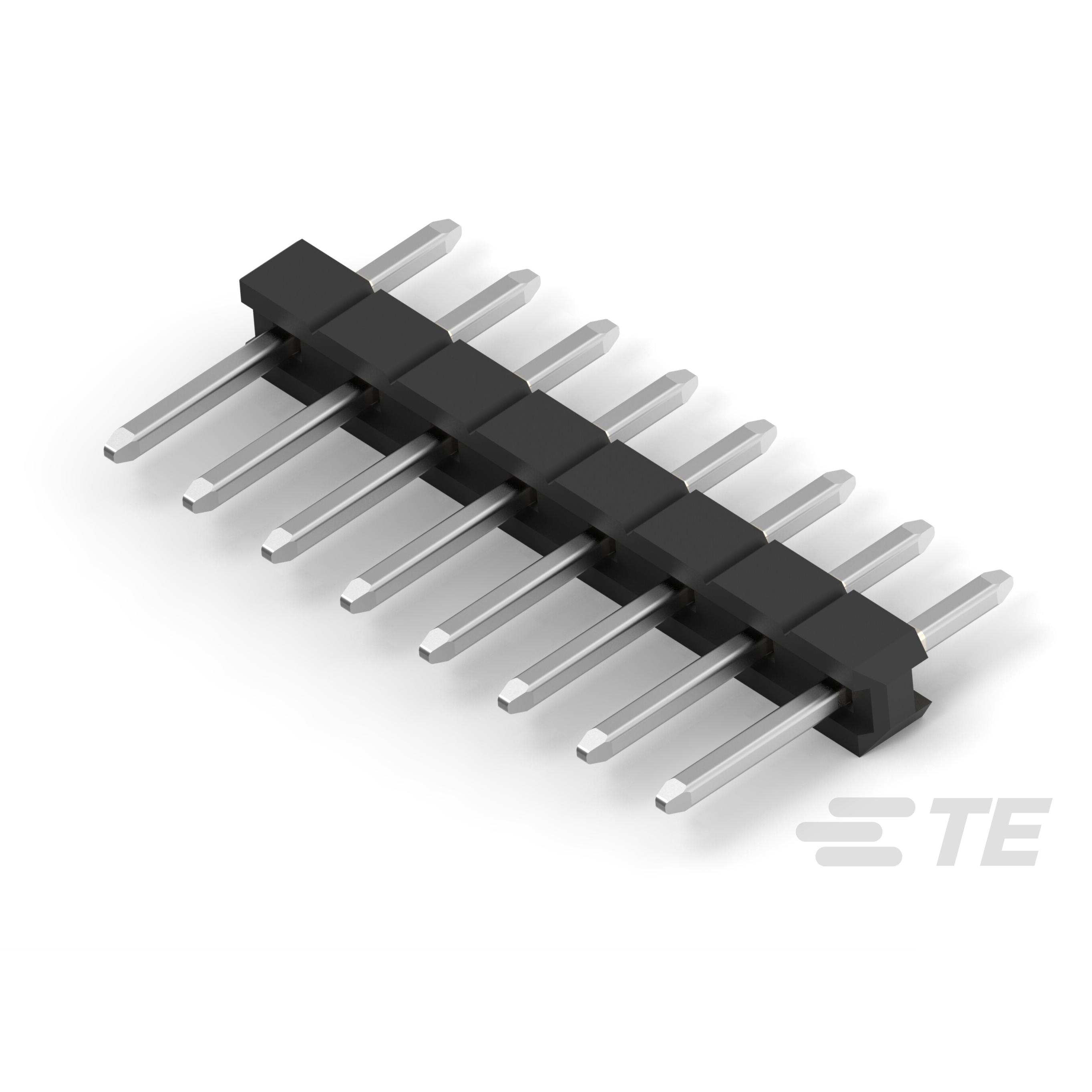

TE Connectivity Raychem Cable Protection 1-2823076-0	1.5 mm	0.059 "	All	Solder	4 mm	0.157 in	0.3 µm	12 µin	0.11 in	2.8 mm	Black	-40 °C	105 ░C	Phosphor Bronze	8.3 mm	0.327 in	Push-Pull	Through Hole	118.1 µin	3 µm	125 VAC	UL94 V-0	2 A	Unshrouded	10	1	0.079 in	2 mm	Square	Breakaway Header	Male Pin	Tin	Thermoplastic

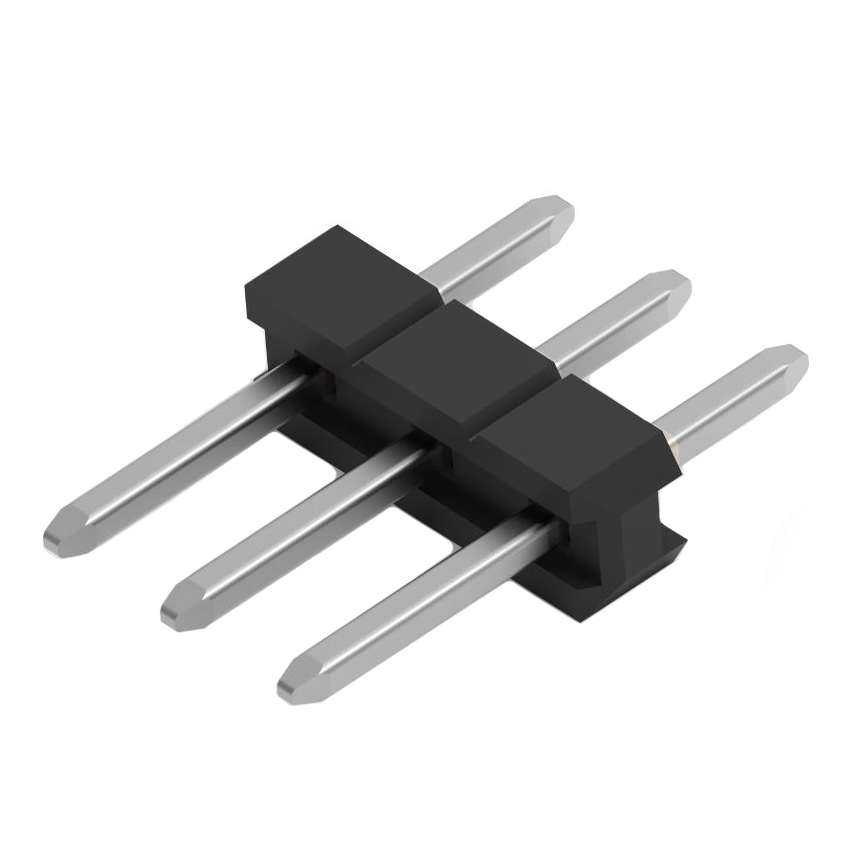

TE Connectivity Raychem Cable Protection 2823076-4	1.5 mm	0.059 "	All	Solder	4 mm	0.157 in	0.3 µm	12 µin	0.11 in	2.8 mm	Black	-40 °C	105 ░C	Phosphor Bronze	8.3 mm	0.327 in	Push-Pull	Through Hole	118.1 µin	3 µm	125 VAC	UL94 V-0	2 A	Unshrouded	4	1	0.079 in	2 mm	Square	Breakaway Header	Male Pin	Tin	Thermoplastic

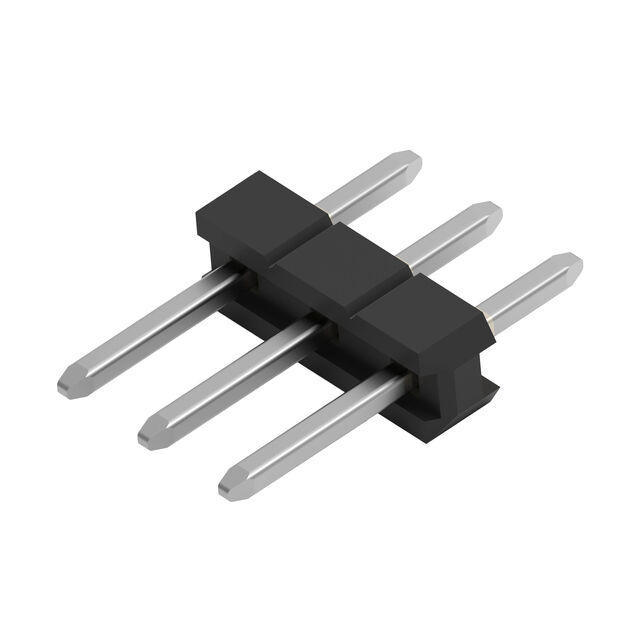

TE Connectivity Raychem Cable Protection 2823076-3	1.5 mm	0.059 "	All	Solder	4 mm	0.157 in	0.3 µm	12 µin	0.11 in	2.8 mm	Black	-40 °C	105 ░C	Phosphor Bronze	8.3 mm	0.327 in	Push-Pull	Through Hole	118.1 µin	3 µm	125 VAC	UL94 V-0	2 A	Unshrouded		1	0.079 in	2 mm	Square	Breakaway Header	Male Pin	Tin	Thermoplastic

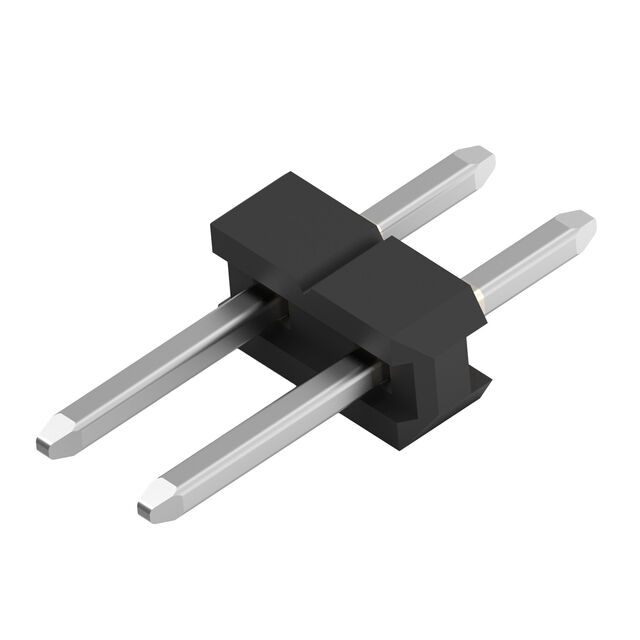

TE Connectivity Raychem Cable Protection 2823076-2	1.5 mm	0.059 "	All	Solder	4 mm	0.157 in	0.3 µm	12 µin	0.11 in	2.8 mm	Black	-40 °C	105 ░C	Phosphor Bronze	8.3 mm	0.327 in	Push-Pull	Through Hole	118.1 µin	3 µm	125 VAC	UL94 V-0	2 A	Unshrouded	2	1	0.079 in	2 mm	Square	Breakaway Header	Male Pin	Tin	Thermoplastic

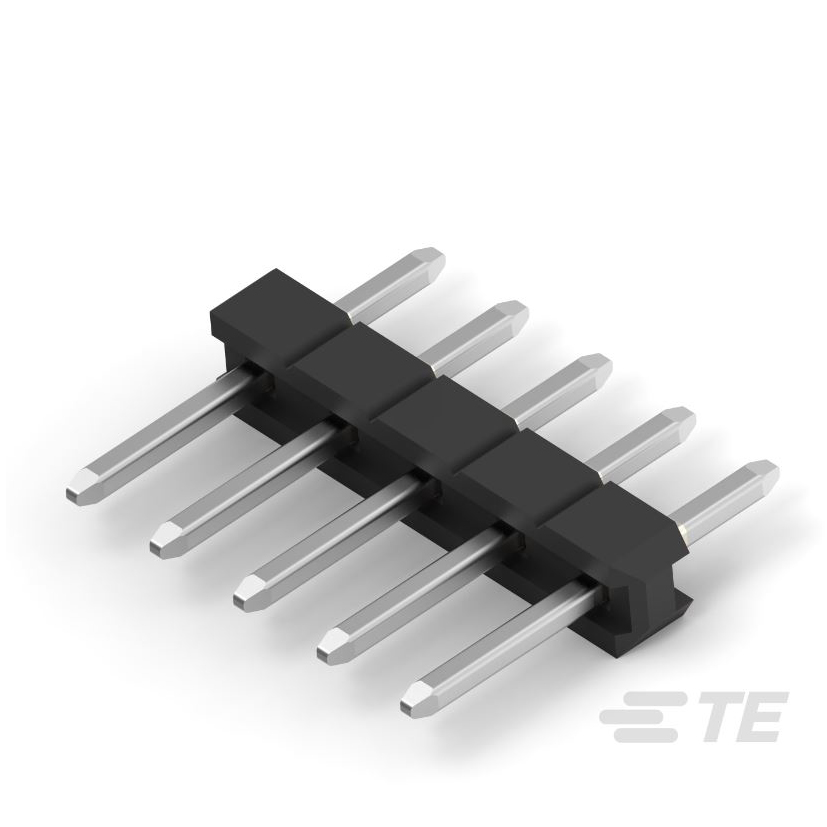

TE Connectivity Raychem Cable Protection 2823076-6	1.5 mm	0.059 "	All	Solder	4 mm	0.157 in	0.3 µm	12 µin	0.11 in	2.8 mm	Black	-40 °C	105 ░C	Phosphor Bronze	8.3 mm	0.327 in	Push-Pull	Through Hole	118.1 µin	3 µm	125 VAC	UL94 V-0	2 A	Unshrouded	6	1	0.079 in	2 mm	Square	Breakaway Header	Male Pin	Tin	Thermoplastic

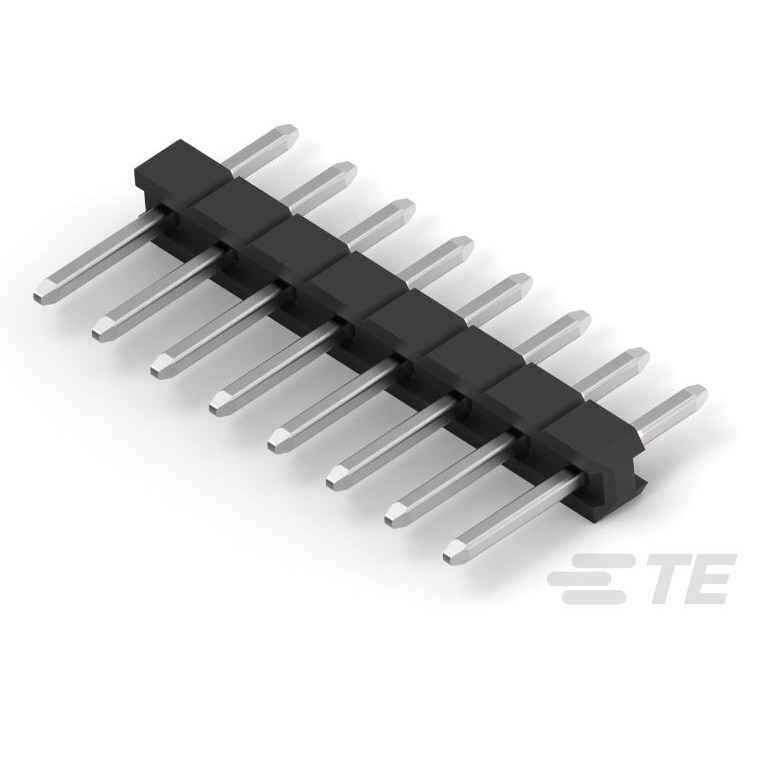

TE Connectivity Raychem Cable Protection 2-2823076-5	1.5 mm	0.059 "	All	Solder	4 mm	0.157 in	0.3 µm	12 µin	0.11 in	2.8 mm	Black	-40 °C	105 ░C	Phosphor Bronze	8.3 mm	0.327 in	Push-Pull	Through Hole	118.1 µin	3 µm	125 VAC	UL94 V-0	2 A	Unshrouded		1	0.079 in	2 mm	Square	Breakaway Header	Male Pin	Tin	Thermoplastic
