TPD4E110 Series

Quad 0.45-pF, 5.5-V, ±12-kV ESD protection diode for High Speed Interfaces

Catalog

Quad 0.45-pF, 5.5-V, ±12-kV ESD protection diode for High Speed Interfaces

Part	Voltage - Breakdown (Min) [Min]	Package / Case	Mounting Type	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Power Line Protection	Power - Peak Pulse	Applications	Function	Utilized IC / Part	Supplied Contents
Texas Instruments TPD4E110DPWR	6.5 V	4-XFDFN Exposed Pad	Surface Mount	5.5 V	13 V	4	5 A	0.8	4-X2SON	0.8	-40 °C	125 °C	Steering		35 W	HDMI

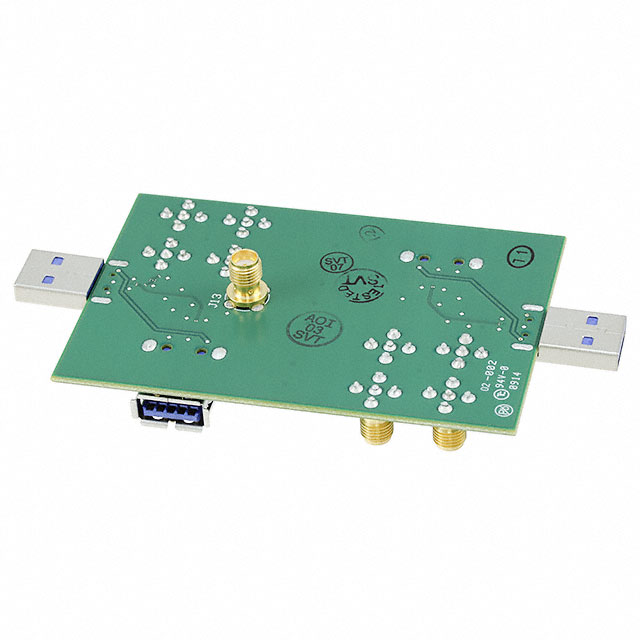

Texas Instruments TPD4E110DPWEVM																	Electrostatic Discharge (ESD)	TPD4E110	Board(s)

Catalog

Quad 0.45-pF, 5.5-V, ±12-kV ESD protection diode for High Speed Interfaces

Key Features

• Provides System Level ESD Protection for Low-Voltage IO InterfaceIO Capacitance 0.45pF (Typ)IEC 61000-4-2 Level 4±12kV (Contact Discharge)±15kV (Air Gap Discharge)IEC61000-4-5 (Surge): 2.5A (8/20 µs)DC Breakdown Voltage 6.5V (Min)Ultra Low Leakage Current 1nA (Max)Low ESD Clamping VoltageIndustrial Temperature Range: –40°C to 125°CSpace Minimizing 0.8mm x 0.8mm DPW PackageProvides System Level ESD Protection for Low-Voltage IO InterfaceIO Capacitance 0.45pF (Typ)IEC 61000-4-2 Level 4±12kV (Contact Discharge)±15kV (Air Gap Discharge)IEC61000-4-5 (Surge): 2.5A (8/20 µs)DC Breakdown Voltage 6.5V (Min)Ultra Low Leakage Current 1nA (Max)Low ESD Clamping VoltageIndustrial Temperature Range: –40°C to 125°CSpace Minimizing 0.8mm x 0.8mm DPW Package

Description

The TPD4E110 is a uni-directional Electrostatic Discharge (ESD) protection device with ultra-low capacitance. The device is constructed with a central ESD clamp and features two hiding diodes per channel to reduce the capacitive loading. Each channel is rated to dissipate ESD strikes above the maximum level specified in the IEC61000-4-2 level 4 international standard. The TPD4E110's ultra-low loading capacitance makes the device ideal for protecting high-speed signal pins. The TPD4E110 is a uni-directional Electrostatic Discharge (ESD) protection device with ultra-low capacitance. The device is constructed with a central ESD clamp and features two hiding diodes per channel to reduce the capacitive loading. Each channel is rated to dissipate ESD strikes above the maximum level specified in the IEC61000-4-2 level 4 international standard. The TPD4E110's ultra-low loading capacitance makes the device ideal for protecting high-speed signal pins.
