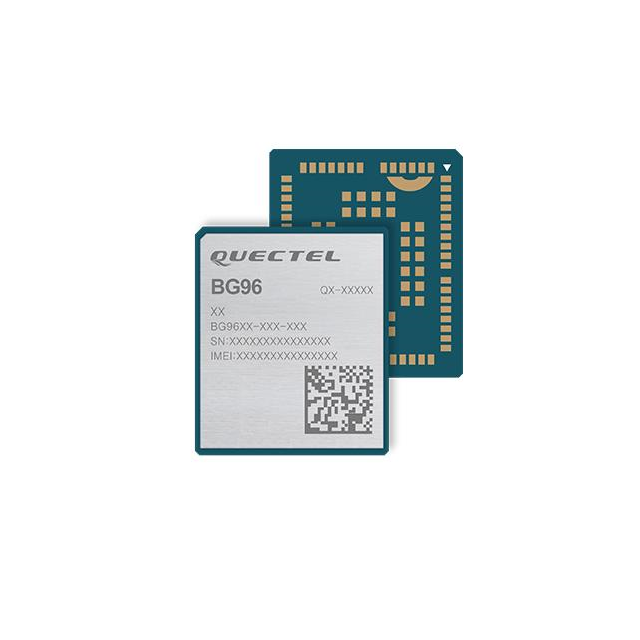

BG96 Series
Manufacturer: Quectel
Beta
⌘K
CAT M1/CAT NB1/EGPRS/LTE CELLULAR MODULE 850MHZ/900MHZ/1800MHZ/1900MHZ M2M 102-PIN LGA MODULE
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Protocol | Sensitivity | Antenna Type | Utilized IC / Part | Current - Receiving | Frequency | Power - Output | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Serial Interfaces | RF Family/Standard | Data Rate | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | 4.3 V | 3.3 V | EDGE GPRS GSM HSPA LTE UMTS | -117 dBm | Antenna Not Included | MDM9206-0 | 16 mA | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | 23 dBm | 85 °C | -40 C | Module | ADC GPIO I2C PCM UART USB | Cellular | 375 kbps | Surface Mount |
 Quectel | 4.3 V | 3.3 V | EDGE GPRS GSM HSPA LTE UMTS | -117 dBm | Antenna Not Included | MDM9206-0 | 16 mA | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | 23 dBm | 85 °C | -40 C | Module | ADC GPIO I2C PCM UART USB | Cellular | 375 kbps | Surface Mount |
 Quectel | 4.3 V | 3.3 V | EDGE GPRS GSM HSPA LTE UMTS | -117 dBm | Antenna Not Included | MDM9206-0 | 16 mA | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | 23 dBm | 85 °C | -40 C | Module | ADC GPIO I2C PCM UART USB | Cellular | 375 kbps | Surface Mount |
 Quectel | 4.3 V | 3.3 V | EDGE GPRS GSM HSPA LTE UMTS | -117 dBm | Antenna Not Included | 16 mA | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | 23 dBm | 85 °C | -40 C | Module | ADC GPIO I2C PCM UART USB | Cellular | 375 kbps | Surface Mount |
