UBAL Series

DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A

Manufacturer: Phoenix Contact

Catalog

DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A

Catalog

DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A

Part	Material Flammability Rating	Material - Insulation	Stripping Length	Termination Style	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Terminal - Width [y]	Number of Levels	Current - IEC	Voltage - IEC	Type	Color	For Use With/Related Products	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Min]

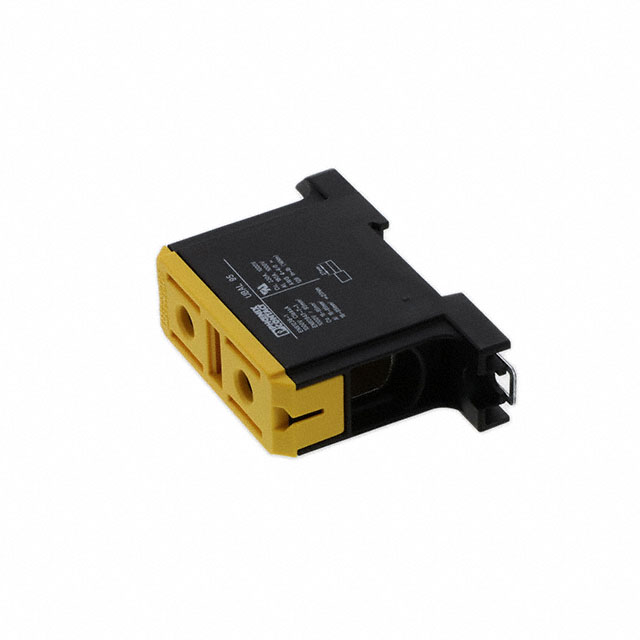

Phoenix Contact 1086480	UL94 V-0	Nylon Polyamide (PA)	27 mm	Screw	4 aught AWG	4 AWG	2	25.1 mm	1	220 A	1 kV	Feed Through	Yellow

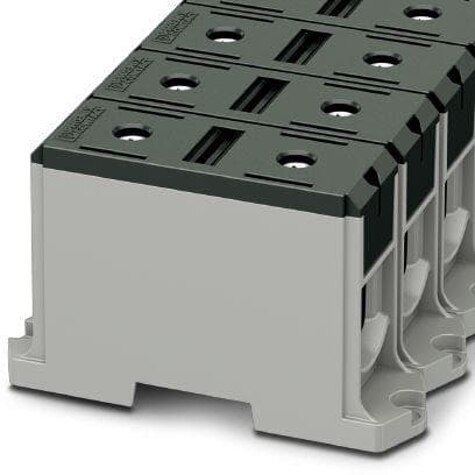

Phoenix Contact 1086473												Cover	Yellow	CLIPLINE UBAL Series
Phoenix Contact 1086470	UL94 V-0	Nylon Polyamide (PA)	23 mm	Screw		6 AWG	2	19.2 mm	1	145 A	1 kV	Feed Through	Brown		50 mm²	6 mm²	1/0

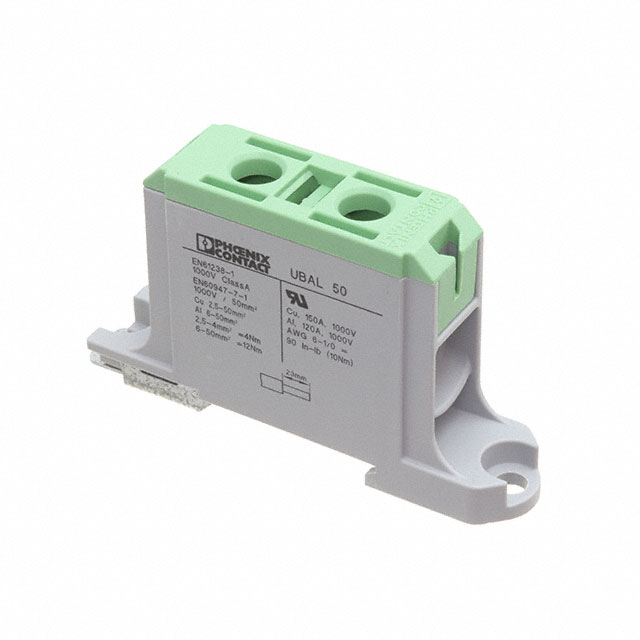

Phoenix Contact 1086468	UL94 V-0	Nylon Polyamide (PA)	23 mm	Screw		6 AWG	2	19.2 mm	1	145 A	1 kV	Feed Through	Green		50 mm²	6 mm²	1/0

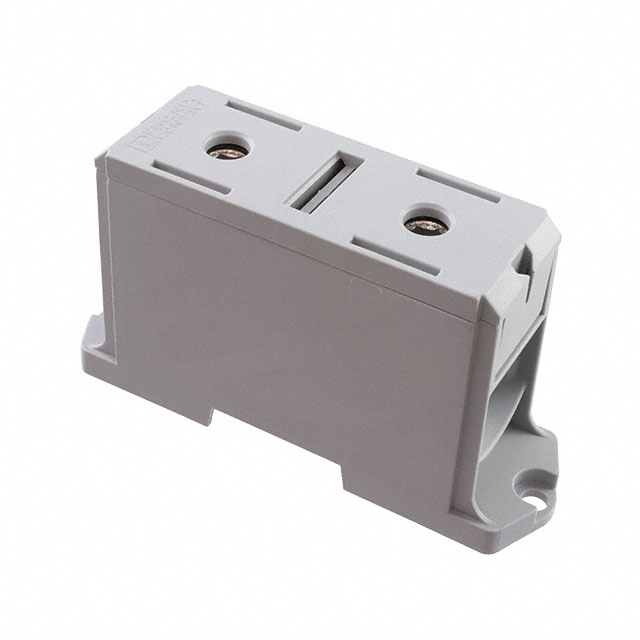

Phoenix Contact 1086505	UL94 V-0	Nylon Polyamide (PA)	43 mm	Screw	3 aught AWG	300 AWG	2	37.5 mm	1	380 A	1 kV	Feed Through	Gray		240 mm²	35 mm²

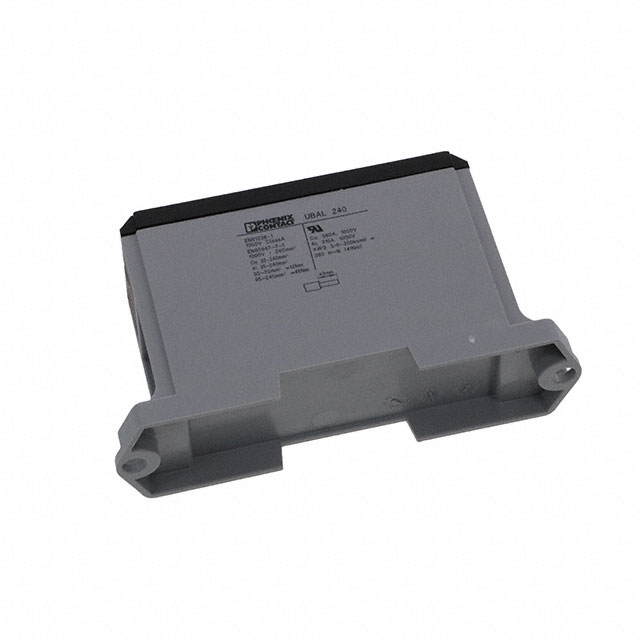

Phoenix Contact 1086508	UL94 V-0	Nylon Polyamide (PA)	43 mm	Screw	3 aught AWG	300 AWG	2	37.5 mm	1	380 A	1 kV	Feed Through	Black		240 mm²	35 mm²
Phoenix Contact 1086502				Screw	2 AWG	300 AWG	2	30.5 mm	1	290 A	1 kV	Feed Through	Black		150 mm²	35 mm²

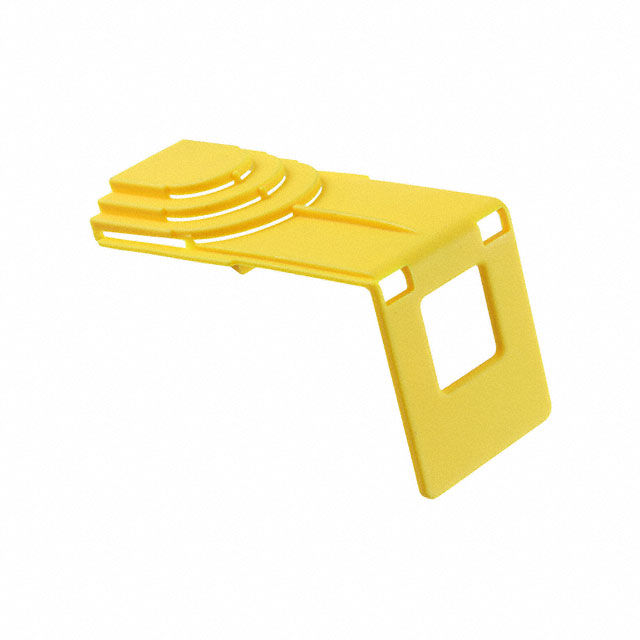

Phoenix Contact 1090037												Cover	Yellow	CLIPLINE UBAL Series
Phoenix Contact 1086465	UL94 V-0	Nylon Polyamide (PA)	23 mm	Screw		6 AWG	2	19.2 mm	1	145 A	1 kV	Feed Through	Gray		50 mm²	6 mm²	1/0

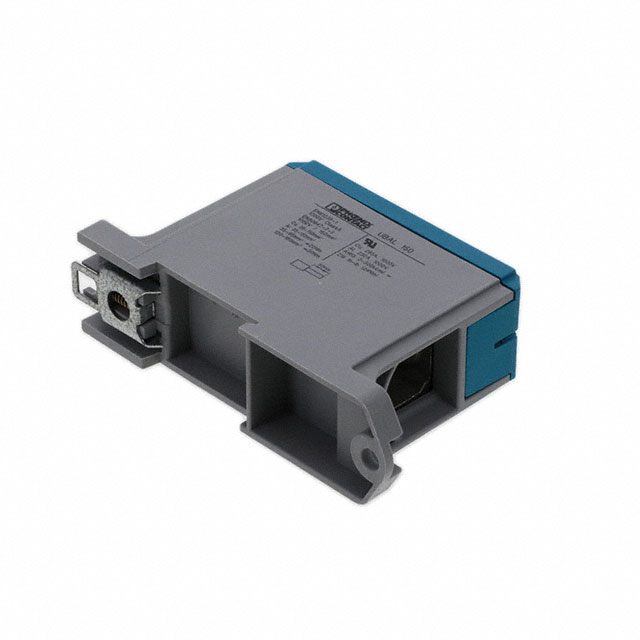

Phoenix Contact 1086499	UL94 V-0	Nylon Polyamide (PA)	30 mm	Screw	2 AWG	300 AWG	2	30.5 mm	1	290 A	1 kV	Feed Through	Blue		150 mm²	35 mm²
