002204 Series

Manufacturer: Molex

Catalog

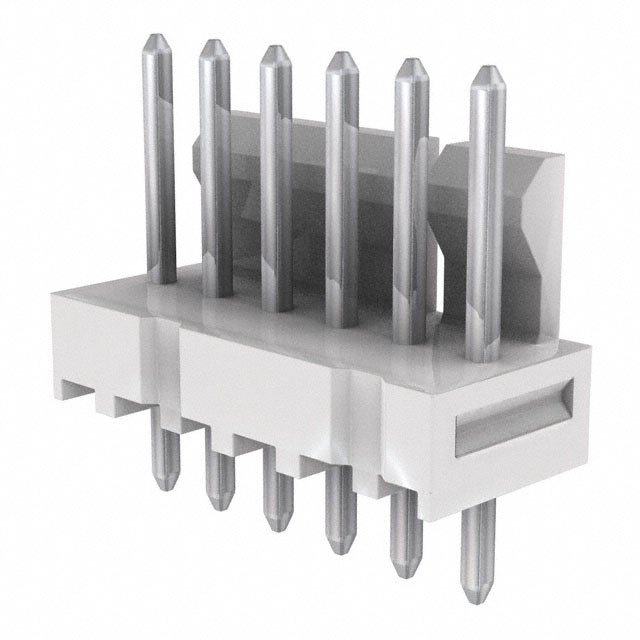

CONN HEADER VERT 6POS 2.54MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Rows	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Material	Insulation Color	Fastening Type	Connector Type	Mounting Type	Contact Shape	Shrouding	Number of Positions Loaded	Contact Type	Style	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Finish - Mating	Contact Length - Post [x]	Number of Positions Loaded
Molex 0022045067	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	UL94 V-0	1	Solder	Brass	100 çin	2.54 çm	0.1 "	2.54 mm	6	Nylon Polyamide (PA)	White	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall	4	Male Pin	Board to Board Cable	0.322 in	8.18 mm	7.49 mm	0.295 in	0.56 in	14.22 mm	Tin
Molex 0022045066	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	UL94 V-0	1	Solder	Brass	100 çin	2.54 çm	0.1 "	2.54 mm	6	Nylon Polyamide (PA)	White	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall	4	Male Pin	Board to Board Cable	0.322 in	8.18 mm	7.49 mm	0.295 in	0.56 in	14.22 mm	Tin
Molex 0022046104	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	UL94 V-0	1	Solder	Brass	20 µin	0.51 µm	0.1 "	2.54 mm	10	Nylon Polyamide (PA)	White	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall	9	Male Pin	Board to Board Cable	0.322 in	8.18 mm	7.49 mm	0.295 in	0.56 in	14.22 mm	Tin	Gold
Molex 0022045139	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	UL94 V-0	1	Solder	Brass	100 çin	2.54 çm	0.1 "	2.54 mm	13	Nylon Polyamide (PA)	White	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall	12	Male Pin	Board to Board Cable	0.322 in	8.18 mm	7.49 mm	0.295 in	0.56 in	14.22 mm	Tin
Molex 0022045088	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	UL94 V-0	1	Solder	Brass	100 çin	2.54 çm	0.1 "	2.54 mm	8	Nylon Polyamide (PA)	White	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall		Male Pin	Board to Board Cable	0.322 in	8.18 mm	7.49 mm	0.295 in	0.56 in	14.22 mm	Tin

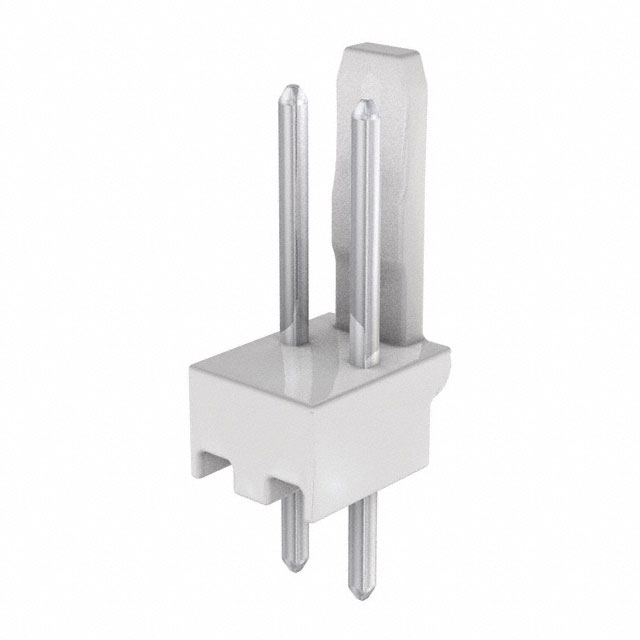

Molex 0022041021				3.4 mm		UL94 V-0	1	Solder	Brass	200 µin	5.08 µm	0.098 in	2.5 mm	2	Nylon Polyamide (PA)	Natural	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall		Male Pin	Board to Cable/Wire	0.461 in	11.7 mm	7.49 mm	0.295 in	0.559 "	14.2 mm	Tin		0.134 "	All
Molex 0022046084	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	UL94 V-0	1	Solder	Brass	20 µin	0.51 µm	0.1 "	2.54 mm	8	Nylon Polyamide (PA)	White	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall	7	Male Pin	Board to Board Cable	0.322 in	8.18 mm	7.49 mm	0.295 in	0.56 in	14.22 mm	Tin	Gold
Molex 0022045116	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	UL94 V-0	1	Solder	Brass	100 çin	2.54 çm	0.1 "	2.54 mm	11	Nylon Polyamide (PA)	White	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall	10	Male Pin	Board to Board Cable	0.322 in	8.18 mm	7.49 mm	0.295 in	0.56 in	14.22 mm	Tin
Molex 0022045071	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	UL94 V-0	1	Solder	Brass	100 çin	2.54 çm	0.1 "	2.54 mm	7	Nylon Polyamide (PA)	White	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall		Male Pin	Board to Board Cable	0.322 in	8.18 mm	7.49 mm	0.295 in	0.56 in	14.22 mm	Tin
Molex 0022041071				3.4 mm		UL94 V-0	1	Solder	Brass	200 µin	5.08 µm	0.098 in	2.5 mm	7	Nylon Polyamide (PA)	Natural	Friction Lock	Header	Through Hole	Square	Shrouded - 1 Wall		Male Pin	Board to Cable/Wire	0.461 in	11.7 mm	7.49 mm	0.295 in	0.559 "	14.2 mm	Tin		0.134 "	All
