Q60BB6 Series

Catalog

LASER SENSOR, Q60LAF SERIES, ADJUSTABLE, 200 MM TO 1.4 M, NPN / PNP, 10 TO 30 VDC

Part	Ingress Protection	Sensing Method	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Adjustment Type	Output Configuration	Response Time	Sensing Distance [Max]	Sensing Distance [Min]	Connection Method	Cable Length	Cable Length

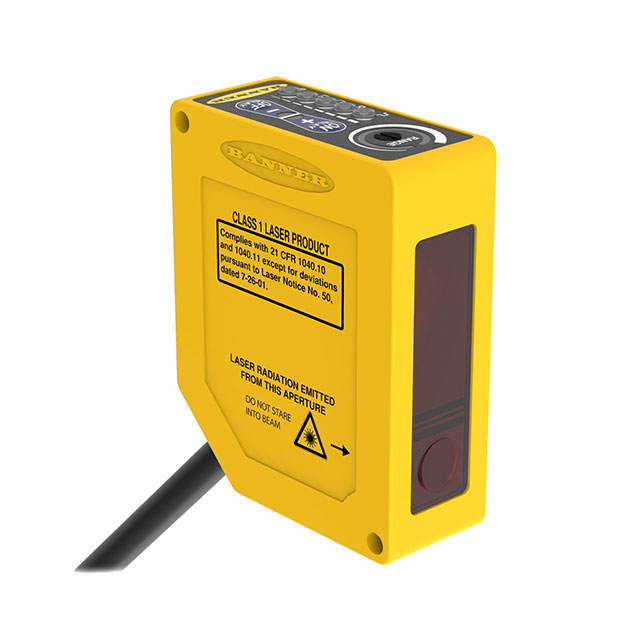

BANNER ENGINEERING Q60BB6LAF1400Q	IEC IEC IP67 IP67 NEMA 6P	Background Suppression Reflective	LED	50 °C	-10 °C	10 VDC	30 VDC	39.37 in	1 m	Adjustable	Dark-ON/Light-ON NPN/PNP	2 ms

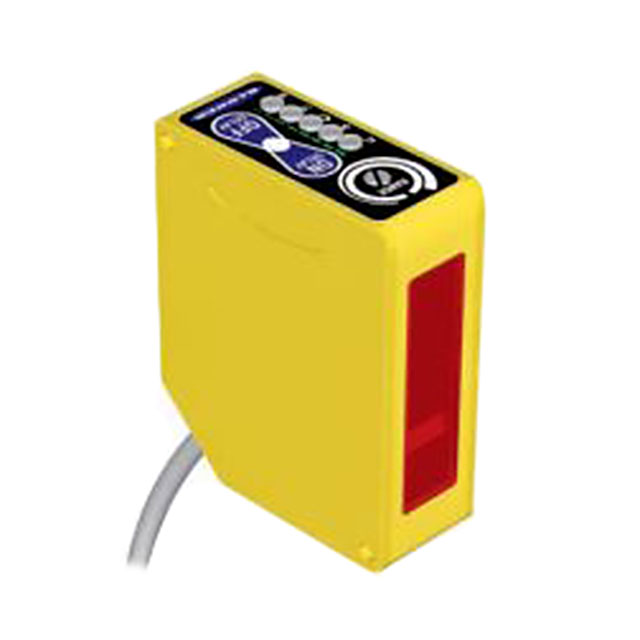

BANNER ENGINEERING Q60BB6AF2000	IP67 NEMA 6P	Background Suppression	Infrared LED	55 °C	-20 ░C	10 VDC	30 VDC			Adjustable	Dark-ON/Light-ON NPN/PNP	2 ms	78.74 " 200 cm	7.87 in 200 mm	Cable	78.74 "	2 m
BANNER ENGINEERING Q60BB6LAF1400	IEC IEC IP67 IP67 NEMA 6P	Background Suppression	LED	50 °C	-10 °C	10 VDC	30 VDC	55.118 in	1.4 m	Adjustable	NPN/PNP - Dark-ON/Light-ON - Selectable	2 ms			Cable	78.74 "	2 m

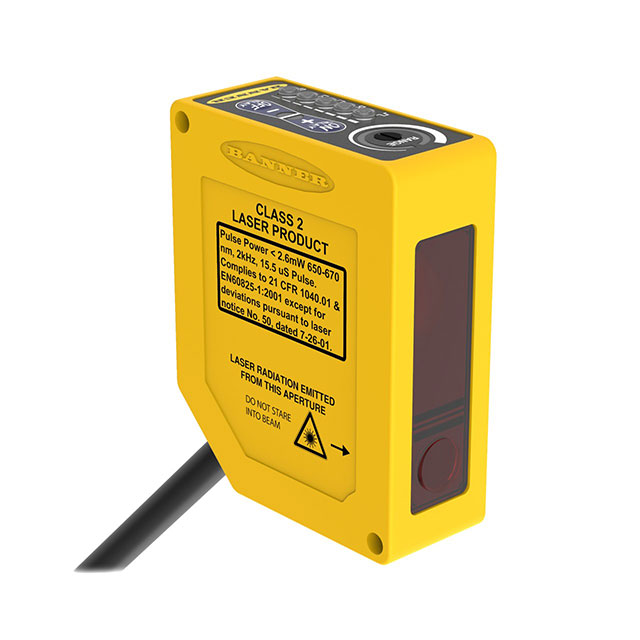

BANNER ENGINEERING Q60BB6LAF2000Q	IEC IEC IP67 IP67 NEMA 6P	Background Suppression Reflective	LED	50 °C	-10 °C	10 VDC	30 VDC	78.74 in	2 m	Adjustable	Dark-ON/Light-ON NPN/PNP	2 ms
BANNER ENGINEERING Q60BB6AF2000Q	IP67 NEMA 6P	Background Suppression	Infrared LED	55 °C	-20 ░C	10 VDC	30 VDC			Adjustable	Dark-ON/Light-ON NPN/PNP	2 ms	78.74 " 200 cm	7.87 in 200 mm	Connector
BANNER ENGINEERING Q60BB6AFV1000QPMA	IP67 NEMA 6P	Background Suppression	Red LED	55 °C	-20 ░C	10 VDC	30 VDC	39.37 in	1 m	Adjustable	Dark-ON/Light-ON NPN/PNP	2 ms			Connector
BANNER ENGINEERING Q60BB6AFV1000Q	IP67 NEMA 6P	Background Suppression	Red LED	55 °C	-20 ░C	10 VDC	30 VDC	39.37 in	1 m	Adjustable	Dark-ON/Light-ON NPN/PNP	2 ms			Connector
