RER220 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

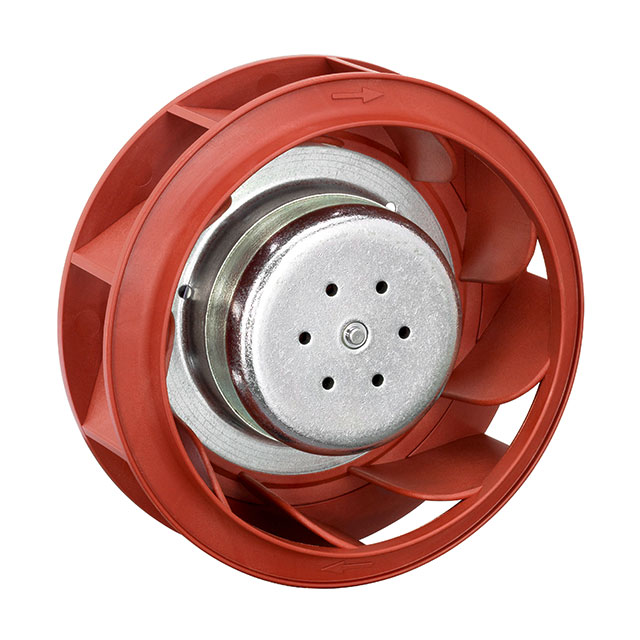

FAN IMP MTRZD 221X71MM 48VDC
| Part | Material - Blade | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Power (Watts) | Bearing Type | Features | RPM | Termination | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Air Flow | Air Flow | Fan Type | Voltage - Rated | Width | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Plastic | 75000 Hrs | 72 VDC | 36 VDC | 80 W | Ball | PWM Control Speed Sensor (Tach) | 3000 RPM | 4 Wire Leads | 55 °C | 55 °C | -4 °F | -20 ░C | 641 CFM | 17.95 m³/min | Motorized Impellers | 48 VDC | 71 mm | Round | 221 mm |
