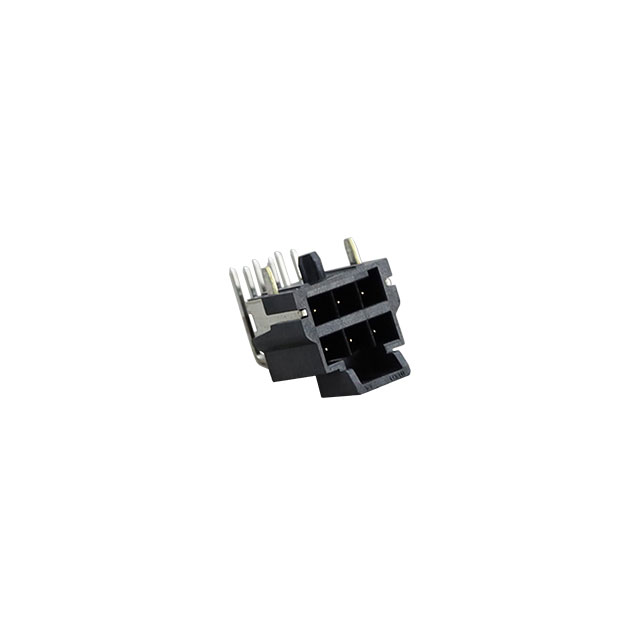

Ultra-Fit Right-Angle Header with Solder Nail, 3.50mm Pitch, Dual Row, 6 Circuits, 0.76µm Gold (Au) Plating, Black, Glow-Wire Capable
Ultra-Fit Right-Angle Header with Solder Nail, 3.50mm Pitch, Dual Row, 6 Circuits, 0.76µm Gold (Au) Plating, Black, Glow-Wire Capable
Ultra-Fit Right-Angle Header with Solder Nail, 3.50mm Pitch, Dual Row, 6 Circuits, 0.76µm Gold (Au) Plating, Black, Glow-Wire Capable
| Part | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Number of Positions Loaded | Number of Rows | Fastening Type | Contact Type | Number of Positions | Current Rating (Amps) | Contact Shape | Contact Material | Insulation Material | Connector Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Type | Termination | Shrouding | Pitch - Mating | Pitch - Mating | Style | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post [x] | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Finish - Mating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | 10 | Varies by Wire Gauge | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 105 ░C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | |||||||||||||
 Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | 12 | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 120 °C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide | 30 Áin | 0.76 Ám | Tin | Gold | Black | 60 µin | 1.52 µm | ||

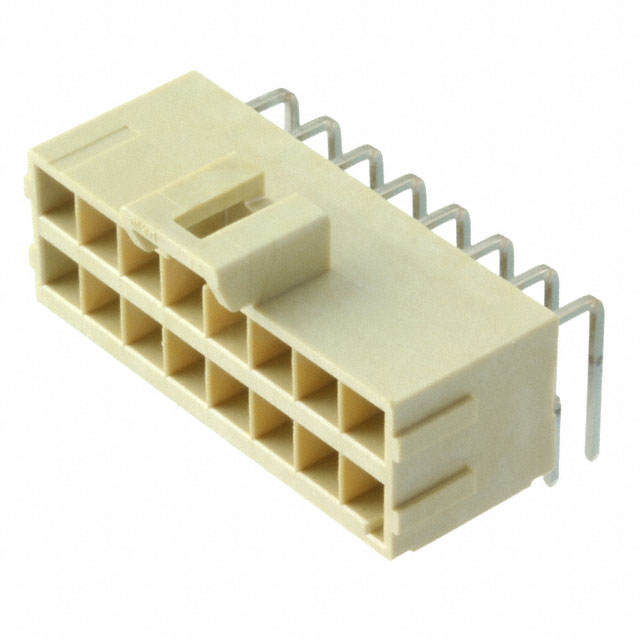

 Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 120 °C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide | 30 Áin | 0.76 Ám | Tin | Gold | Natural | 60 µin | 1.52 µm | 16 | ||

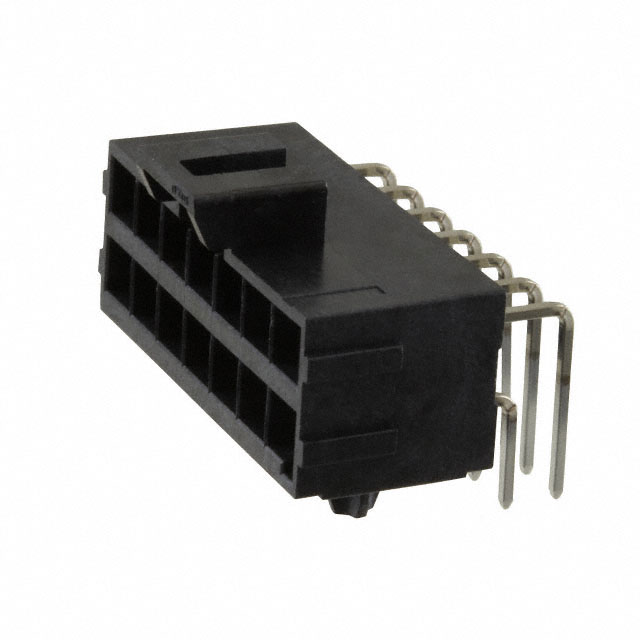

 Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | 14 | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 120 °C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide | 15 µin | 0.38 µm | Tin | Gold | Black | 60 µin | 1.52 µm | ||

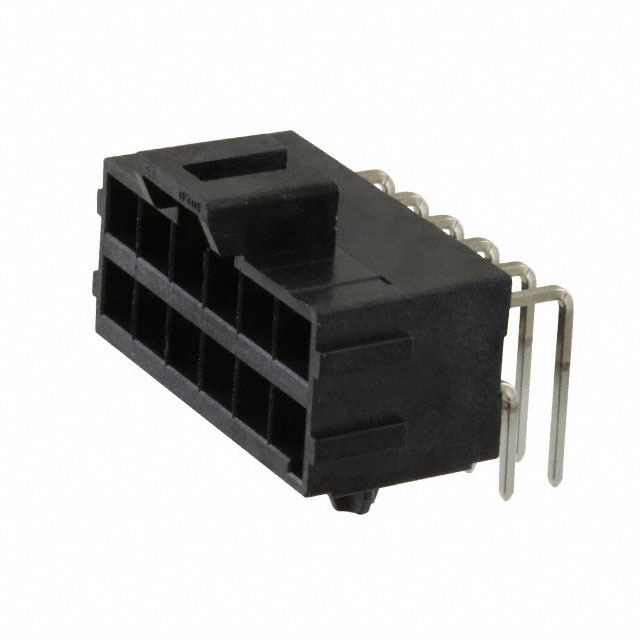

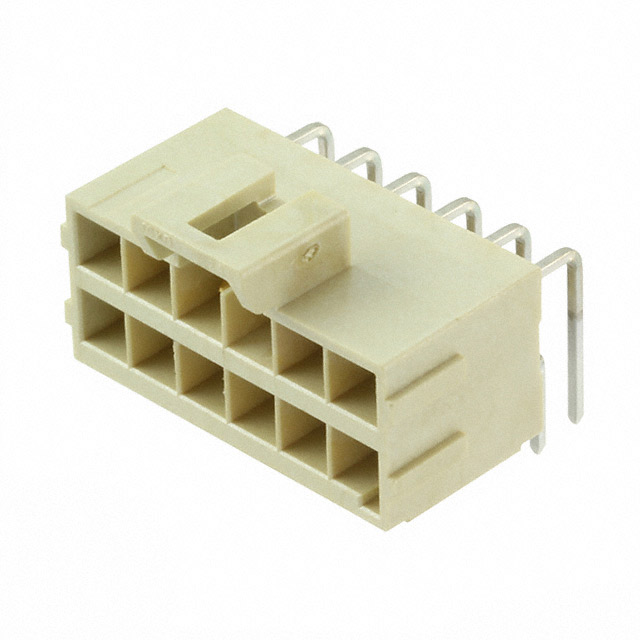

 Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | 12 | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 120 °C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide | 30 Áin | 0.76 Ám | Tin | Gold | Natural | 60 µin | 1.52 µm | ||

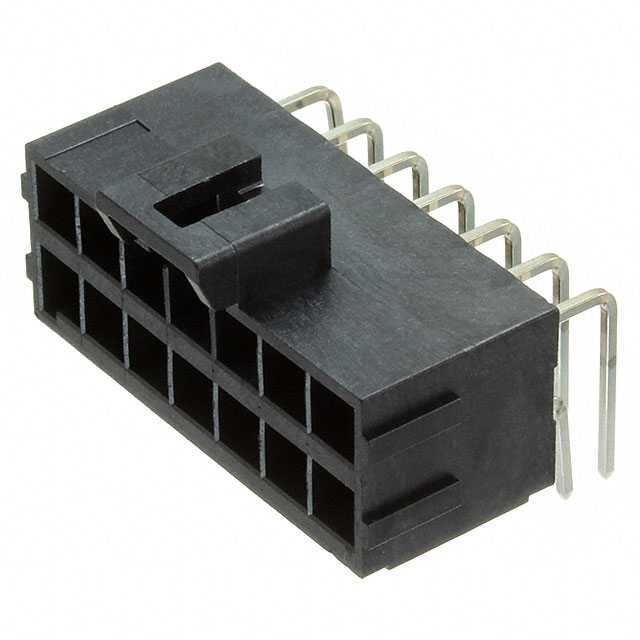

 Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | 14 | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 120 °C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide | 30 Áin | 0.76 Ám | Tin | Gold | Black | 60 µin | 1.52 µm | ||

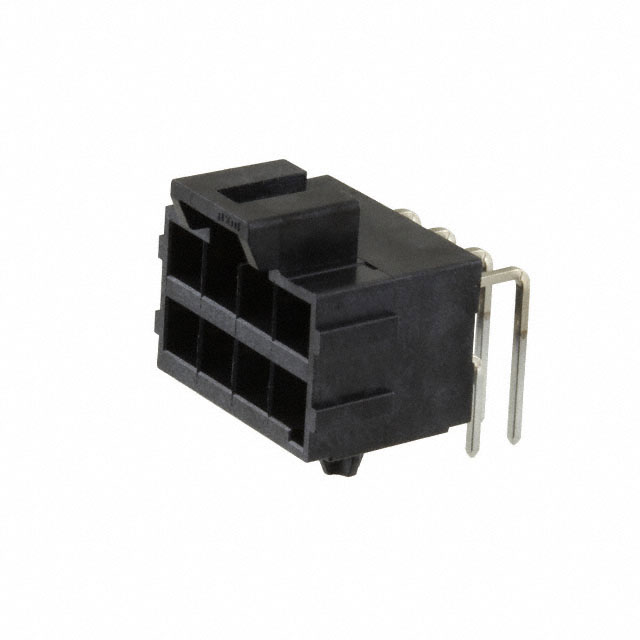

 Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | 8 | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 120 °C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide | 15 µin | 0.38 µm | Tin | Gold | Black | 60 µin | 1.52 µm | ||

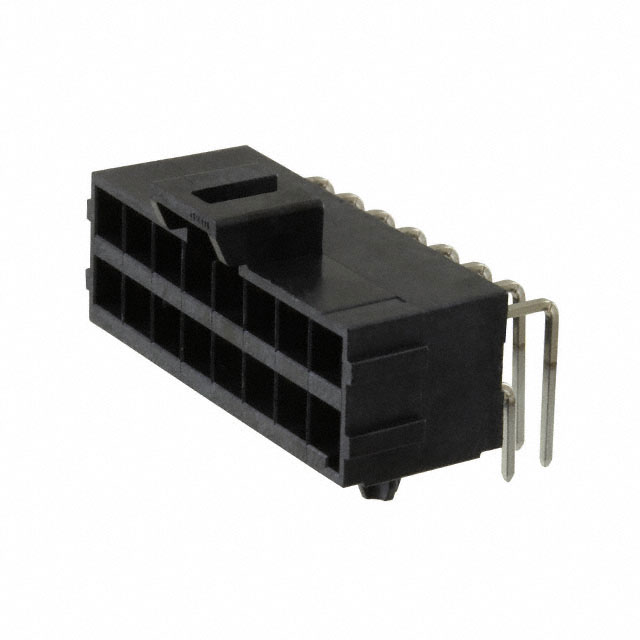

 Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 120 °C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide | 30 Áin | 0.76 Ám | Tin | Gold | Black | 60 µin | 1.52 µm | 16 | ||
 Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | 6 | Varies by Wire Gauge | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 105 ░C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide | 30 Áin | 0.76 Ám | Tin | Gold | Black | 60 µin | 1.52 µm | |
Molex | 4.6 mm | 0.181 in | 600 VAC | All | 2 | Latch Holder | Male Pin | 10 | Varies by Wire Gauge | Square | Copper Alloy | Liquid Crystal Polymer (LCP) | Header | UL94 V-0 | -40 °C | 105 ░C | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Through Hole Right Angle | Solder | Shrouded - 4 Wall | 0.138 in | 3.5 mm | Board to Cable/Wire | 13.56 mm | 0.534 in | 3.2 mm | 0.126 in | Board Guide Glow Wire Compliant | 15 µin | 0.38 µm | Tin | Gold | Natural | 60 µin | 1.52 µm |
