305-072 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, PANEL MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Type	Number of Rows [custom]	Read Out	Number of Positions/Bay/Row	Termination	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Card Type	Color	Pitch	Pitch	Number of Positions	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]

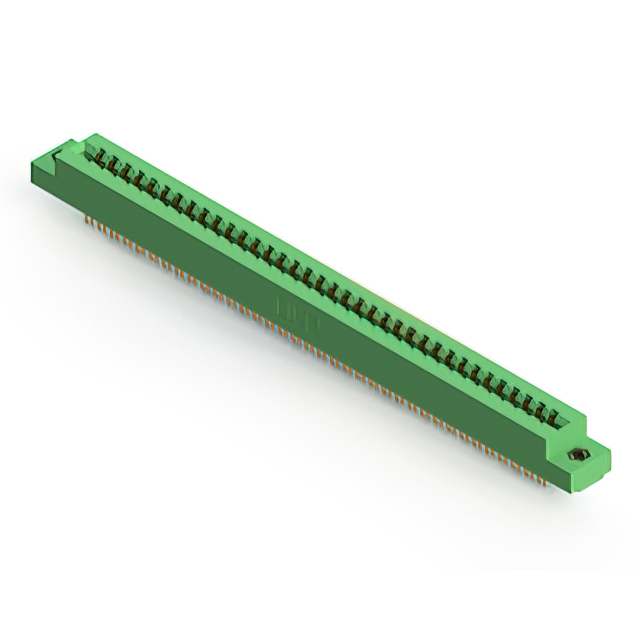

EDAC Inc. 305-072-500-208	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Panel Mount	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 305-072-500-268	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Panel Mount	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	4-40 Flush Mount Threaded Insert Top Opening

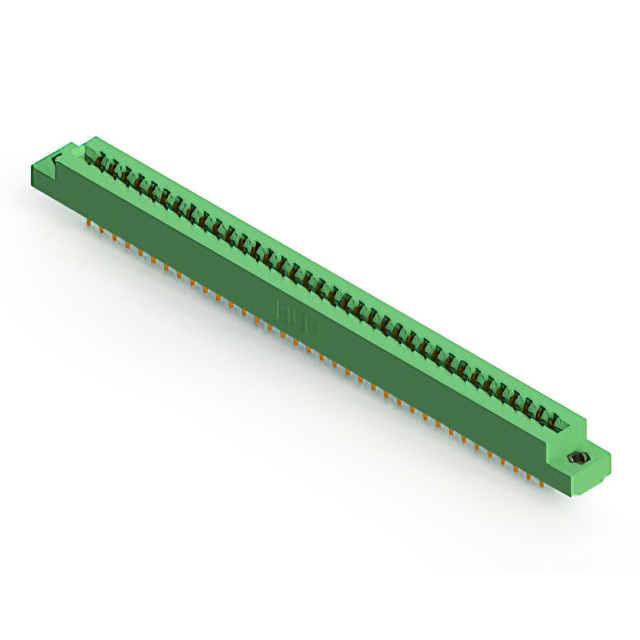

EDAC Inc. 305-072-520-207	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Panel Mount Through Hole	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 305-072-556-568	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides

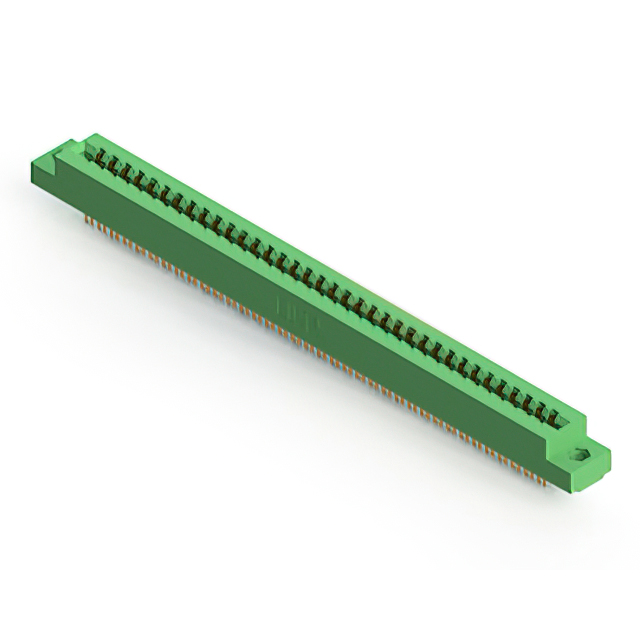

EDAC Inc. 305-072-500-504	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Panel Mount	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	Flush Mount Top Opening Unthreaded		0.156 "	3.96 mm

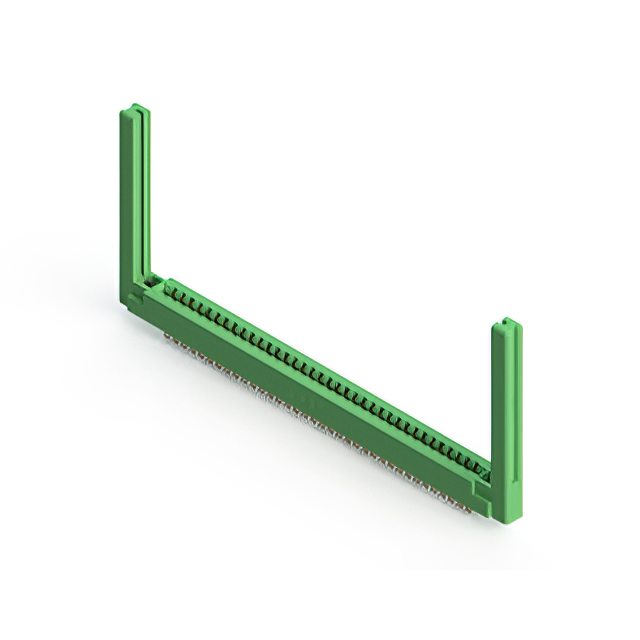

EDAC Inc. 305-072-555-258	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides

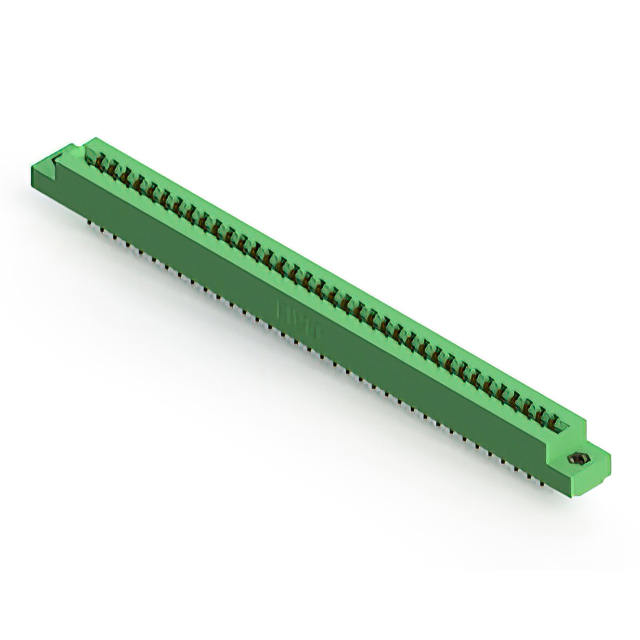

EDAC Inc. 305-072-556-508	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	4-40 Flush Mount Threaded Insert Top Opening	Card Extender

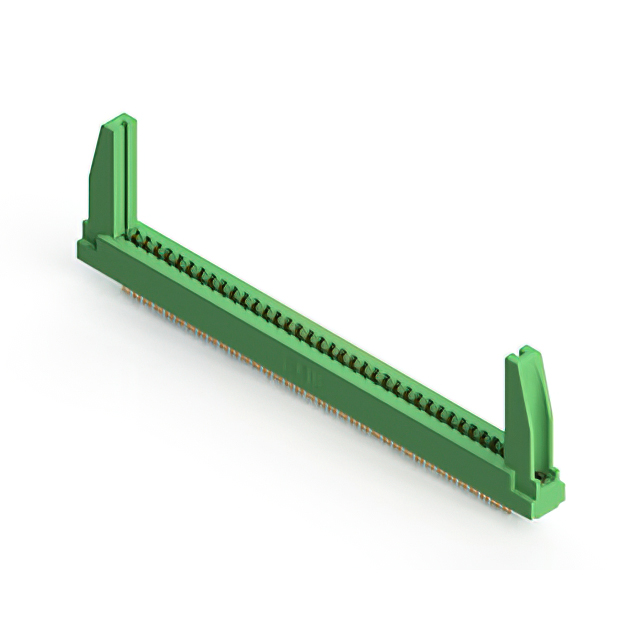

EDAC Inc. 305-072-500-278	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Panel Mount	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	4-40 Flush Mount Threaded Insert Top Opening

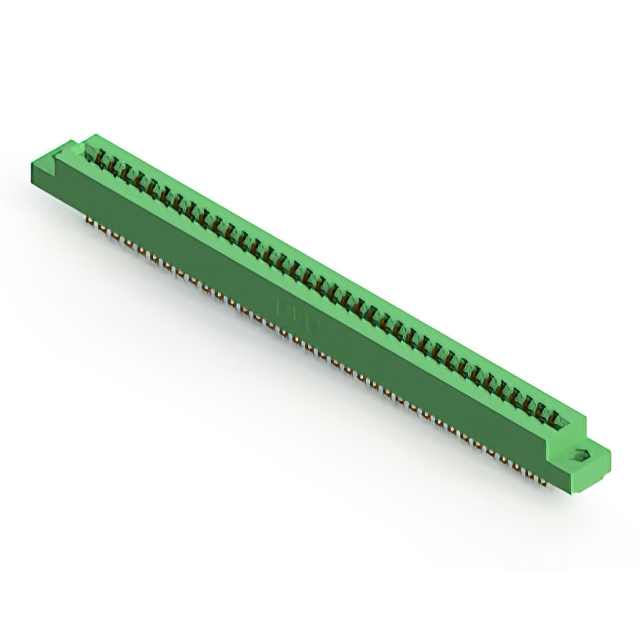

EDAC Inc. 305-072-555-504	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	Flush Mount Top Opening Unthreaded	Card Extender	0.156 "	3.96 mm

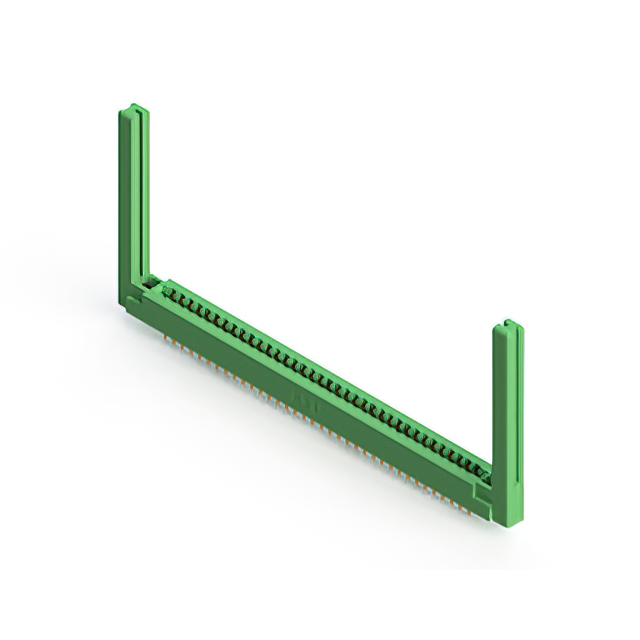

EDAC Inc. 305-072-520-558	Polyester Thermoplastic	2	-40 C	105 ░C	Gold	Semi Bellows	2	Dual	36	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Panel Mount Through Hole	Copper Alloy	Non Specified - Dual Edge	Green	3.96 mm	0.156 in	72	4-40 Flush Mount Threaded Insert Top Opening
