1058 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN ADAPT SMB PLUG TO BNC JACK
| Part | Center Contact Material | Insertion Loss | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Impedance | Mounting Type | Conversion Type | Frequency - Max [Max] | Convert From (Adapter End) | Convert To (Adapter End) | Center Contact Plating | Adapter Type | Center Gender | Style | Fastening Type | Mating Cycles | Number of Ports | Mounting Feature | Connector Type | Housing Color | Connector Style | Contact Termination | Shield Termination | Adapter Series | Fastening Type | Voltage Rating | Includes | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

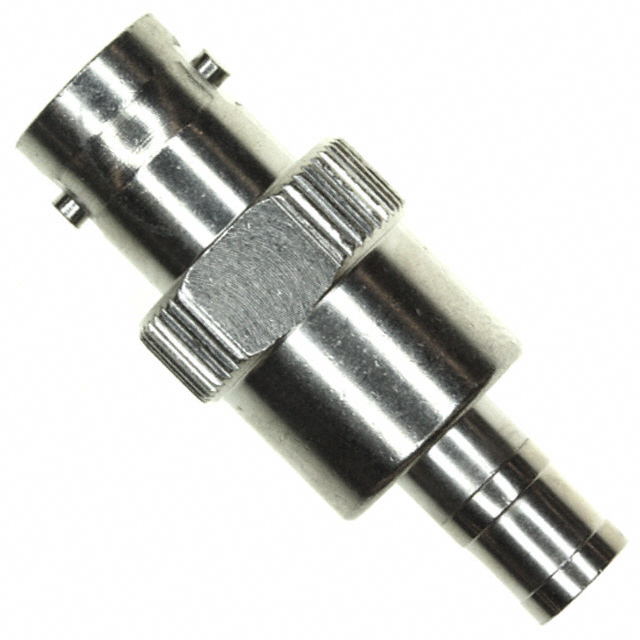

 TE Connectivity AMP Connectors | Beryllium Copper | 0.13 dB | Brass | -65 ░C | 125 °C | Nickel | Polytetrafluoroethylene (PTFE) | 50 Ohms | Free Hanging (In-Line) | Between Series | 4 GHz | Female Socket SMB Plug | BNC Jack Female Socket | Gold | Plug to Jack | Female to Female | Straight | Bayonet Lock Snap-On | |||||||||||||
 TE Connectivity AMP Connectors | Beryllium Copper | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Panel Mount Right Angle | Gold | Threaded | 500 | 1 | Flange | Receptacle Female Socket | Gold | SMA | Solder | Solder | |||||||||||||||

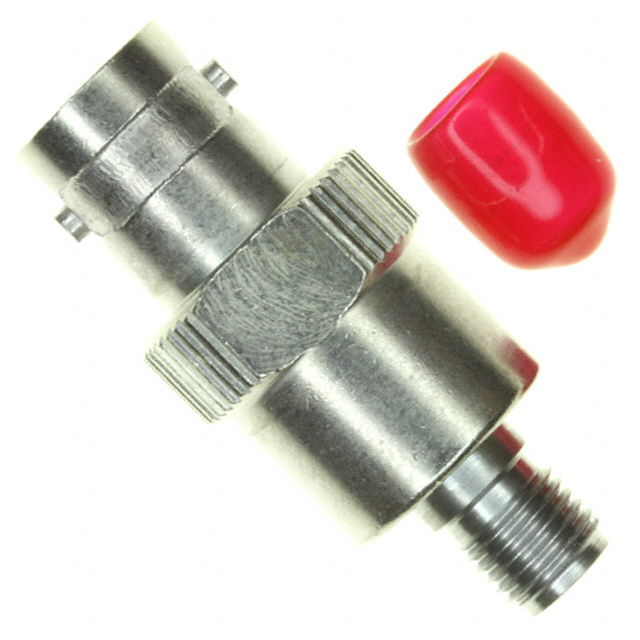

 TE Connectivity AMP Connectors | Beryllium Copper | Brass Stainless Steel | -65 ░C | 165 °C | Gold Passivated | Polytetrafluoroethylene (PTFE) | 50 Ohms | Free Hanging (In-Line) | Between Series | 4 GHz | BNC Jack Female Socket | SMA Jack Female Socket | Gold | Jack to Jack | Female to Female | Straight | Bayonet Lock | BNC to SMA | Threaded | ||||||||||||

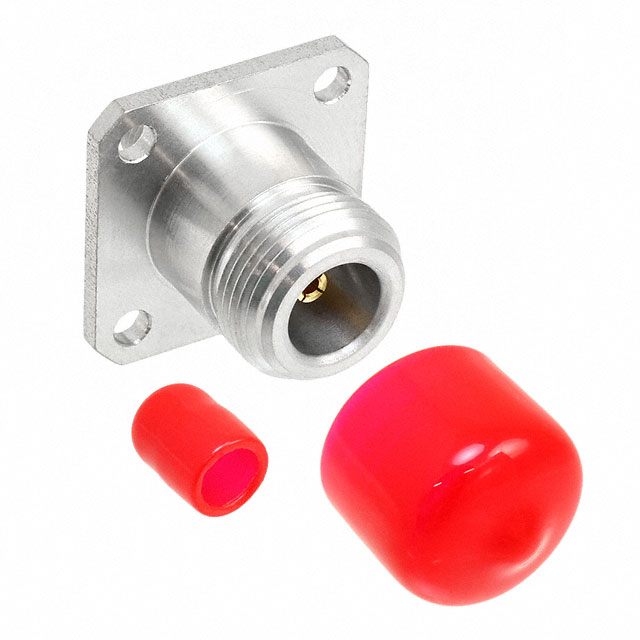

 TE Connectivity AMP Connectors | Beryllium Copper | 0.18 dB | Stainless Steel | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | Panel Mount | Between Series | 18 GHz | Female Socket SMA Jack | N Jack Female Socket | Gold | Jack to Jack | Female to Female | Straight | Flange | OSM to OSN | |||||||||||||
 TE Connectivity AMP Connectors | Brass | Stainless Steel | -65 ░C | 105 ░C | Gold Passivated | Polytetrafluoroethylene (PTFE) | 50 Ohms | Free Hanging (In-Line) | 18 GHz | Gold | Threaded | 500 | 1 | Plug Male Pin | Gold Silver | TNC | Solder | Solder | 335 V | ||||||||||||

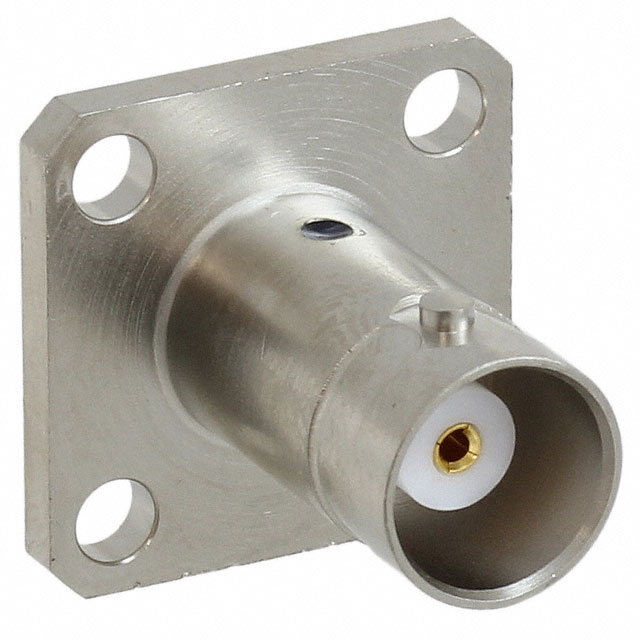

TE Connectivity AMP Connectors | Beryllium Copper | Brass | -65 ░C | 125 °C | Nickel | Polytetrafluoroethylene (PTFE) | 50 Ohms | Panel Mount | 4 GHz | Gold | Bayonet Lock | 500 | 1 | Flange | Female Socket Jack | Silver | BNC | Solder Cup | Solder | 500 V | |||||||||||

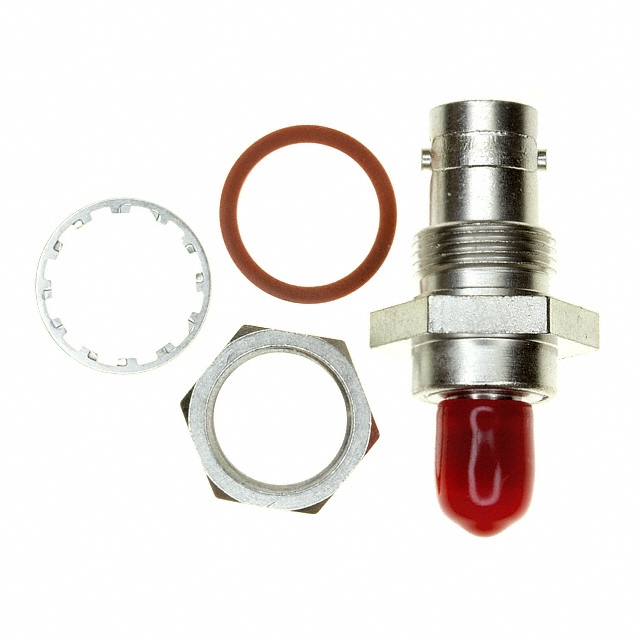

 TE Connectivity AMP Connectors | Beryllium Copper | Brass Stainless Steel | -65 ░C | 125 °C | Nickel; Passivated | Polytetrafluoroethylene (PTFE) | 50 Ohms | Panel Mount | Between Series | 4 GHz | BNC Jack Female Socket | SMA Jack Female Socket | Gold | Jack to Jack | Female to Female | Straight | Bayonet Lock | Bulkhead | BNC to SMA | Threaded | 1 Connector 1 Lockwasher 1 Nut | ||||||||||
 TE Connectivity AMP Connectors | Beryllium Copper | Brass | -65 ░C | 165 °C | Nickel | Polytetrafluoroethylene (PTFE) | 50 Ohms | Panel Mount | 4 GHz | Gold | Bayonet Lock | 500 | 1 | Flange | Female Socket Jack | Silver | BNC | Solder | Solder | 500 V | Extended Insulation |
