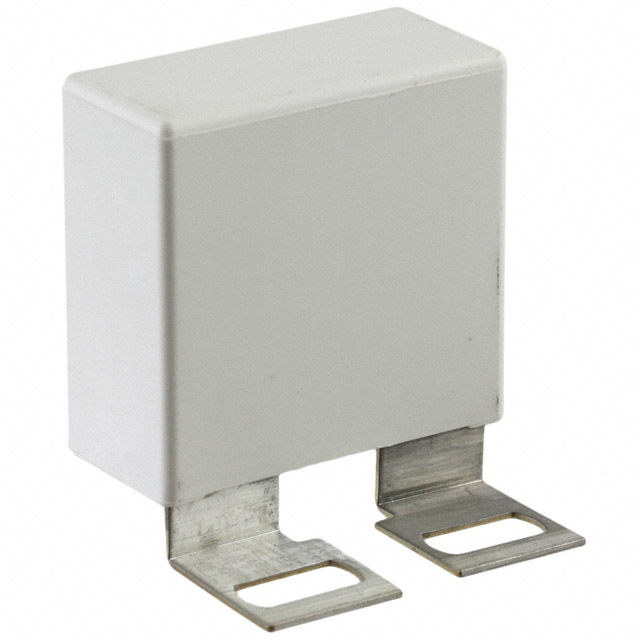

C4BSPB Series

Manufacturer: KEMET

Catalog

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - TABS, 1.5 ΜF, ± 5%, SNUBBER, PANEL MOUNT

Part	Termination	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Applications	ESR (Equivalent Series Resistance)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Dielectric Material	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)

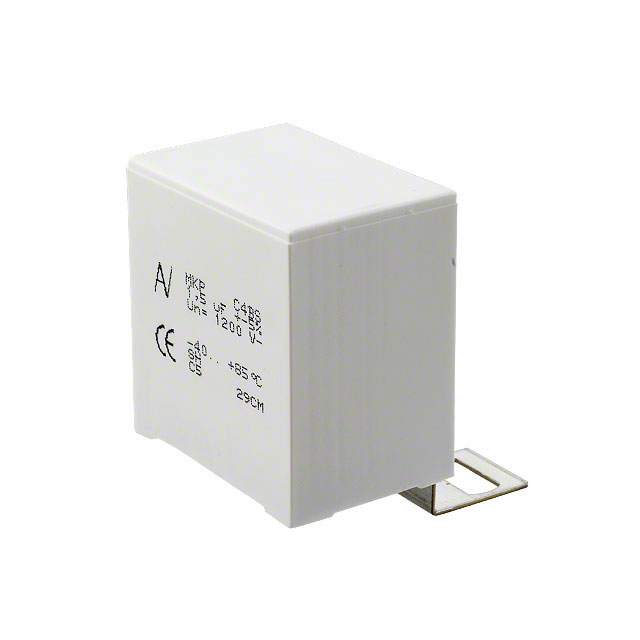

KEMET C4BSPBX4150ZBLJ	Screw Terminals	1.2 kV	1200 V	0.866 "	22 mm	DC Filtering DC Link Snubber	2.3 mOhms	630 V	85 °C	-40 C	1.181 in	30 mm	42 mm	1.654 in	1500 nF	Chassis Mount	1.772 "	45 mm	Rectangular Box	Polypropylene (PP) Metallized	5 %

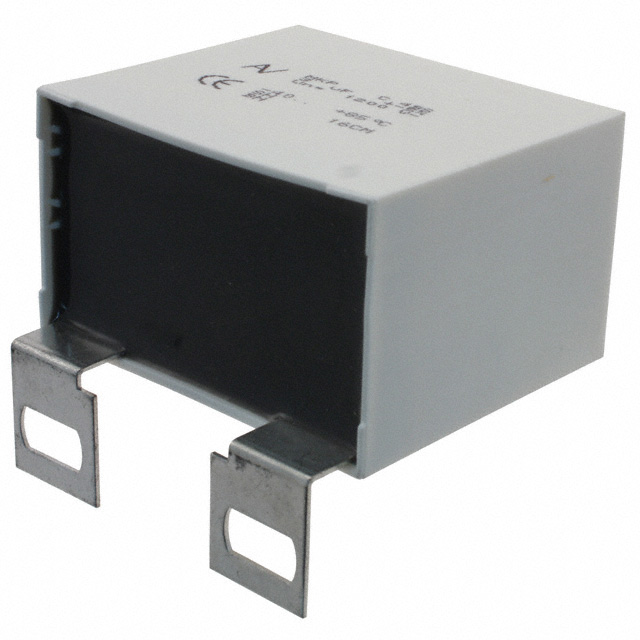

KEMET C4BSPBX4300ZBNJ	Screw Terminals	1.2 kV	1200 V	1.457 "	37 mm	DC Filtering DC Link Snubber	2.5 mOhms	630 V	85 °C	-40 C		1.378 in	2.264 in		3 µF	Chassis Mount			Rectangular Box	Polypropylene (PP) Metallized	5 %	57.5 mm	35 mm	1.969 in	50 mm

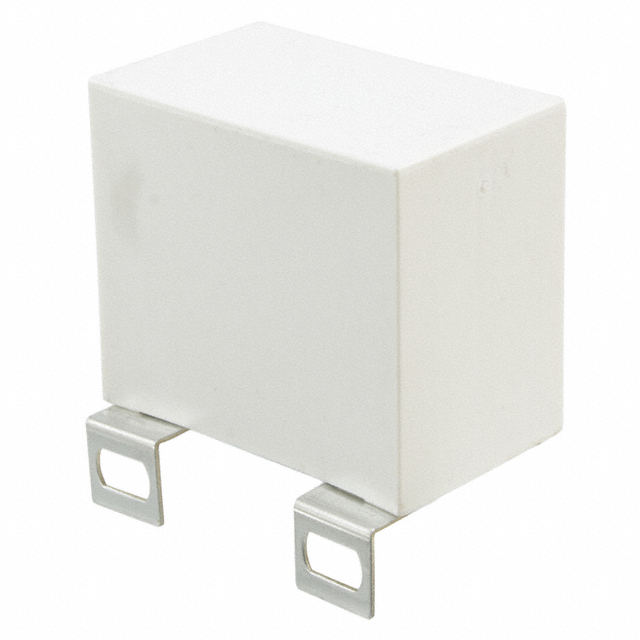

KEMET C4BSPBX4300ZANJ	Screw Terminals	1.2 kV	1200 V	1.614 in	41 mm	DC Filtering DC Link Snubber	2.5 mOhms	630 V	85 °C	-40 C		1.378 in	2.264 in		3 µF	Chassis Mount			Rectangular Box	Polypropylene (PP) Metallized	5 %	57.5 mm	35 mm	1.969 in	50 mm

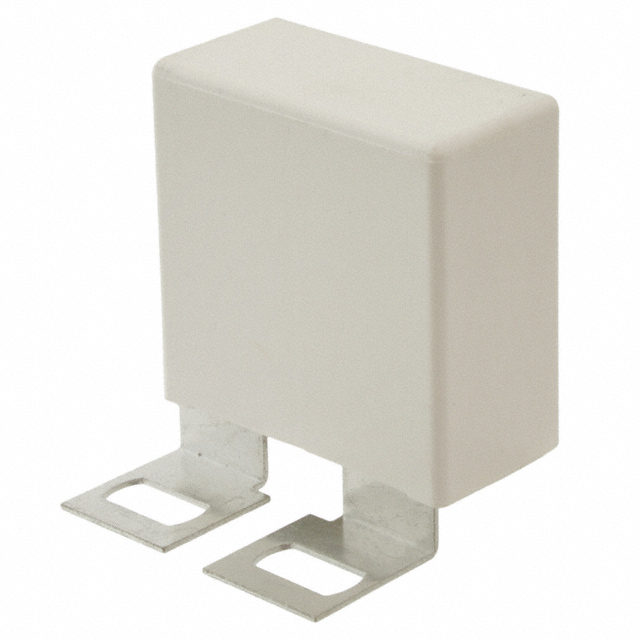

KEMET C4BSPBX3680ZBFJ	Screw Terminals	1.2 kV	1200 V	0.866 "	22 mm	DC Filtering DC Link Snubber	4.7 mOhm	630 V	85 °C	-40 C	0.787 in	20 mm	41.5 mm	1.634 in	0.68 µF	Chassis Mount			Rectangular Box	Polypropylene (PP) Metallized	5 %			1.575 in	40 mm
KEMET C4BSPBX3470ZBFJ	Screw Terminals	1.2 kV	1200 V	0.866 "	22 mm	DC Filtering DC Link Snubber	6.7 mOhms	630 V	85 °C	-40 C	0.787 in	20 mm	41.5 mm	1.634 in	0.47 µF	Chassis Mount			Rectangular Box	Polypropylene (PP) Metallized	5 %			1.575 in	40 mm
KEMET C4BSPBX4120ZBJJ	Screw Terminals	1.2 kV	1200 V	0.866 "	22 mm	DC Filtering DC Link Snubber	2.8 mOhms	630 V	85 °C	-40 C	1.102 "		42.5 mm	1.673 "	1.2 µF	Chassis Mount	1.457 in		Rectangular Box	Polypropylene (PP) Metallized	5 %		28 mm			37 mm

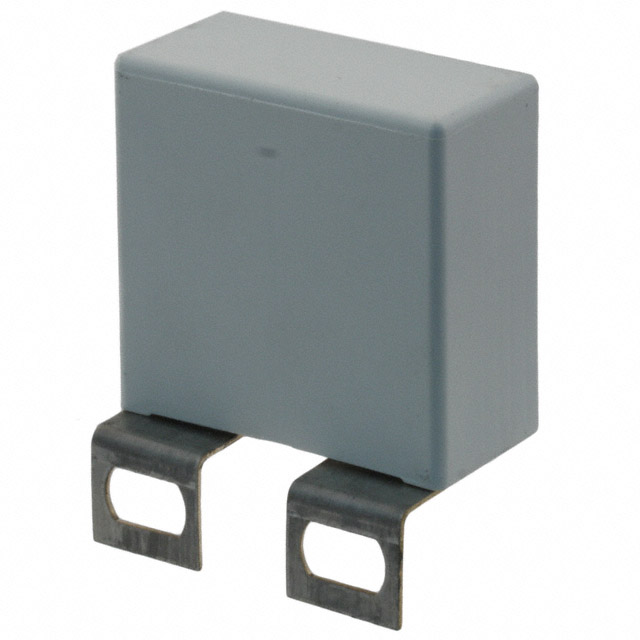

KEMET C4BSPBX3470ZAFJ	Screw Terminals	1.2 kV	1200 V	1.004 in	25.5 mm	DC Filtering DC Link Snubber	6.7 mOhms	630 V	85 °C	-40 C	0.787 in	20 mm	41.5 mm	1.634 in	0.47 µF	Chassis Mount			Rectangular Box	Polypropylene (PP) Metallized	5 %			1.575 in	40 mm

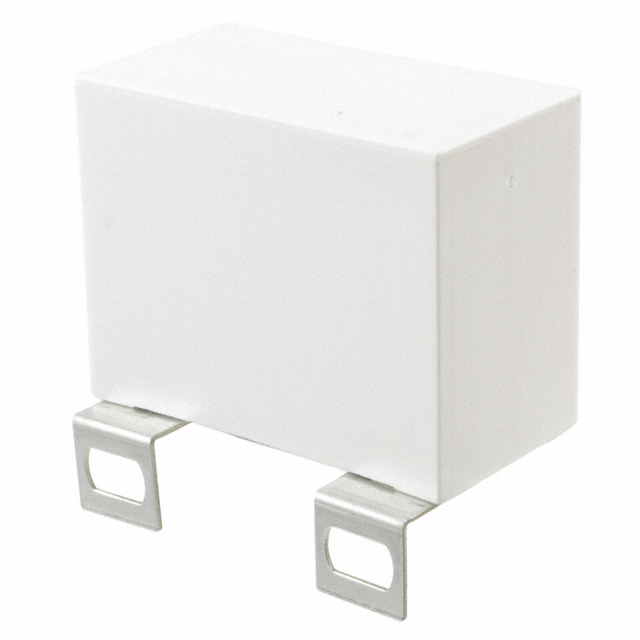

KEMET C4BSPBX4200ZAMJ	Screw Terminals	1.2 kV	1200 V	1.614 in	41 mm	DC Filtering DC Link Snubber	3.6 mOhms	630 V	85 °C	-40 C	1.181 in	30 mm	57.5 mm	2.264 in	2 µF	Chassis Mount	1.772 "	45 mm	Rectangular Box	Polypropylene (PP) Metallized	5 %
KEMET C4BSPBX4120ZB0J	Screw Terminals	1.2 kV	1200 V	0.866 "	22 mm	DC Filtering DC Link Snubber	2.8 mOhms	630 V	85 °C	-40 C	1.102 "		42.5 mm	1.673 "	1.2 µF	Chassis Mount	1.457 in		Rectangular Box	Polypropylene (PP) Metallized	5 %		28 mm			37 mm

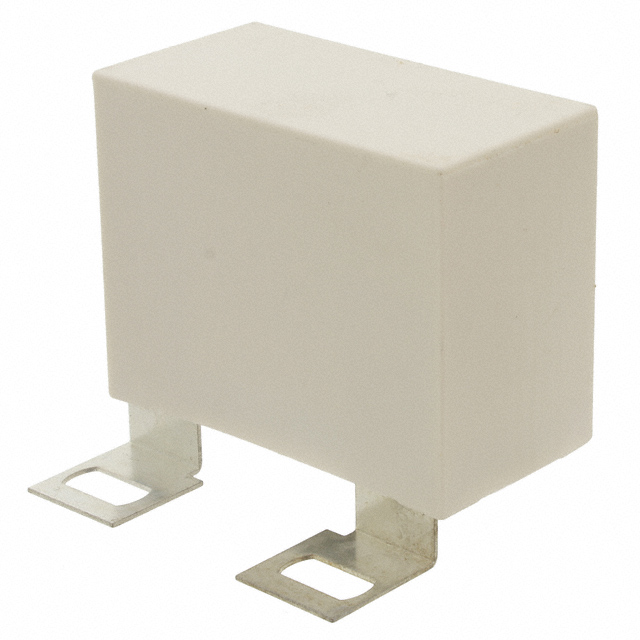

KEMET C4BSPBX4200ZBMJ	Screw Terminals	1.2 kV	1200 V	1.457 "	37 mm	DC Filtering DC Link Snubber	3.6 mOhms	630 V	85 °C	-40 C	1.181 in	30 mm	57.5 mm	2.264 in	2 µF	Chassis Mount	1.772 "	45 mm	Rectangular Box	Polypropylene (PP) Metallized	5 %
