50M030050 Series

Catalog

HEX SLOTTED SCREW, M3 X .5 THREA

...

Part	Head Diameter [diameter]	Head Diameter	Drive Type	Thread Size	Type	Length - Overall [x]	Length - Overall [x]	Screw Head Type	Material	Length - Below Head [x]	Length - Below Head [x]	Head Height [z]	Head Height [z]	Head Diameter	Head Diameter [diameter]	Head Height	Head Height	Length - Overall	Length - Overall	Head Diameter	Length - Below Head
Essentra Components 50M030050K004	0.197 in	5 mm	Slotted	M3x0.5	Bolt	0.248 in	6.3 mm	Hex Head	Nylon	4 mm	0.157 in

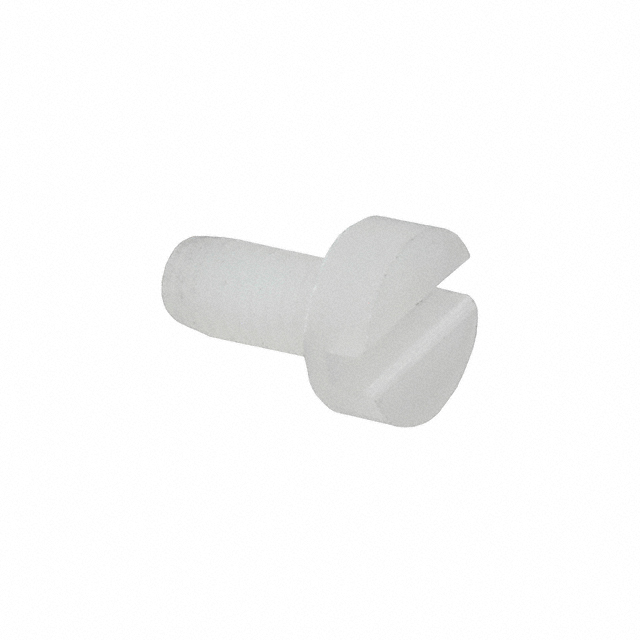

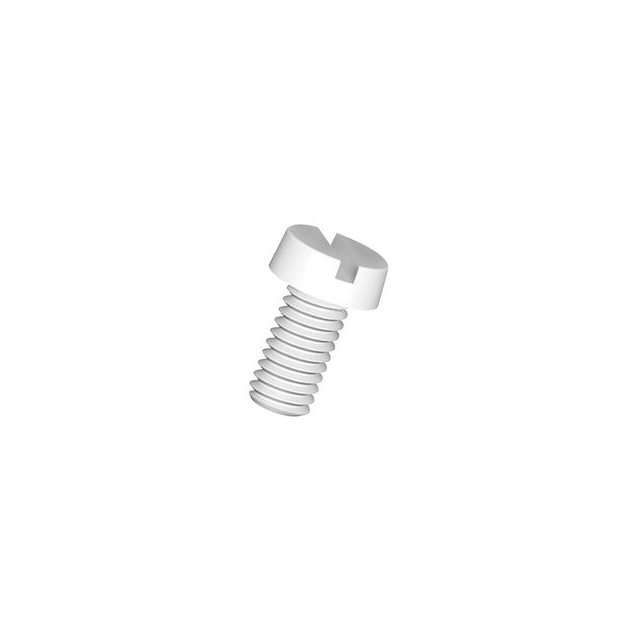

Essentra Components 50M030050D035		5.5 mm	Slotted	M3x0.5	Bolt	1.457 in	37 mm	Cheese Head	Nylon			0.079 "	2 mm	0.217 in
Essentra Components 50M030050T020	0.317 in		Slotted	M3x0.5	Thumb Screw	1.003 in	25.48 mm	Knob	Nylon	20 mm	0.787 in				8.05 mm	0.216 "	5.48 mm
Essentra Components 50M030050D010		5.5 mm	Slotted	M3x0.5	Bolt	0.472 in	12 mm	Cheese Head	Nylon	10 mm	0.394 in	0.079 "	2 mm	0.217 in
Essentra Components 50M030050D012		5.5 mm	Slotted	M3x0.5	Bolt	0.551 in	14 mm	Cheese Head	Nylon	12 mm	0.472 "	0.079 "	2 mm	0.217 in
Essentra Components 50M030050T016	0.317 in		Slotted	M3x0.5	Thumb Screw			Knob	Nylon	16 mm	0.63 in				8.05 mm	0.216 "	5.48 mm	0.846 in	21.48 mm
Essentra Components 50M030050M008		6.3 mm	Phillips	M3x0.5	Machine Screw	0.343 in	8.7 mm	Oval Head	Nylon	6.3 mm	0.248 in			0.248 in		0.094 "	2.4 mm			0.25 in
Essentra Components 50M030050H015		6.3 mm	Slotted	M3x0.5	Machine Screw	0.591 in	15 mm	Flat Head	Nylon		0.524 "			0.248 in		0.067 "	1.7 mm			0.25 in	13.3 mm
Essentra Components 50M030050J025	0.197 in	5 mm	Hex Socket	M3x0.5	Bolt			Hex Head	Nylon	25 mm	0.984 in							1.075 in	27.3 mm

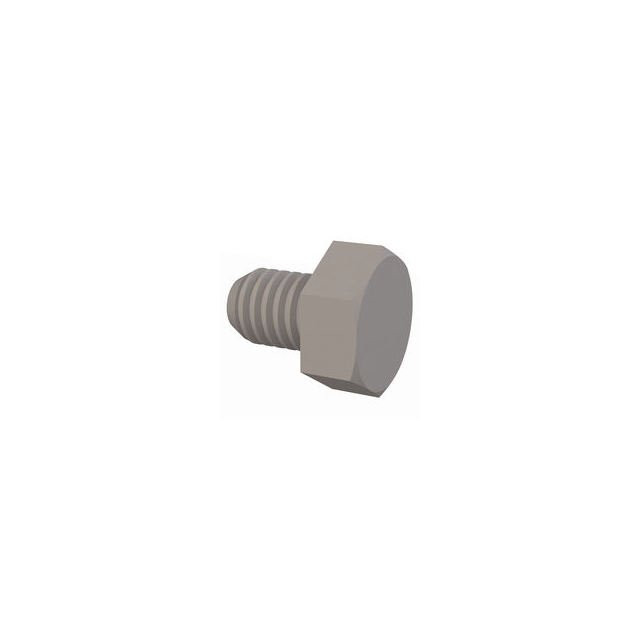

Essentra Components 50M030050J004	0.197 in	5 mm	Hex Socket	M3x0.5	Bolt	0.248 in	6.3 mm	Hex Head	Nylon	4 mm	0.157 in
