MS148 Series

Catalog

RF SHIELD 0.350"X0.583" SOLDER

Part	Type	Length - Overall [x]	Length - Overall [x]	Height - Overall [z]	Height - Overall [z]	Width - Overall [y]	Width - Overall [y]	Mounting Type	Ventilation	Length - Overall	Length - Overall	Width - Overall [x]	Width - Overall [x]

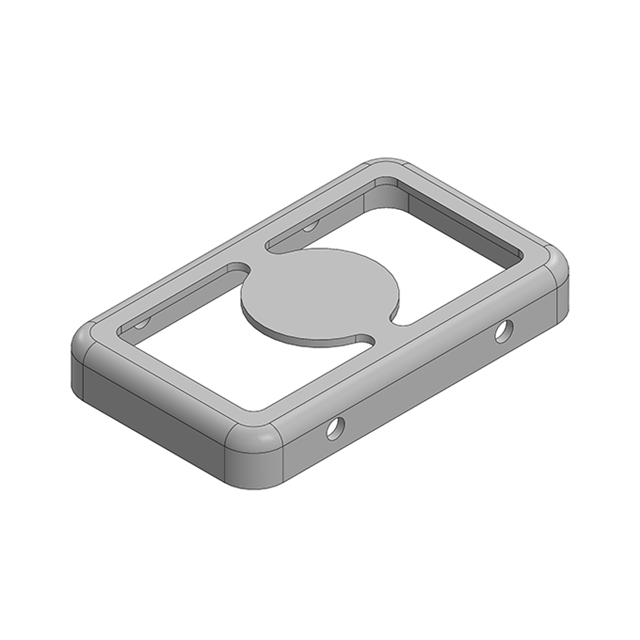

Masach Tech Ltd. MS148-10F	Frame	14.8 mm	0.583 in	0.079 in	2 mm	8.9 mm	0.35 in	Solder
Masach Tech Ltd. MS148-10S-NS	Shield 1-Piece	14.8 mm	0.583 in	0.079 in	2 mm	8.9 mm	0.35 in	Solder	Non-Vented
Masach Tech Ltd. MS148-10F-NS	Frame	14.8 mm	0.583 in	0.079 in	2 mm	8.9 mm	0.35 in	Solder

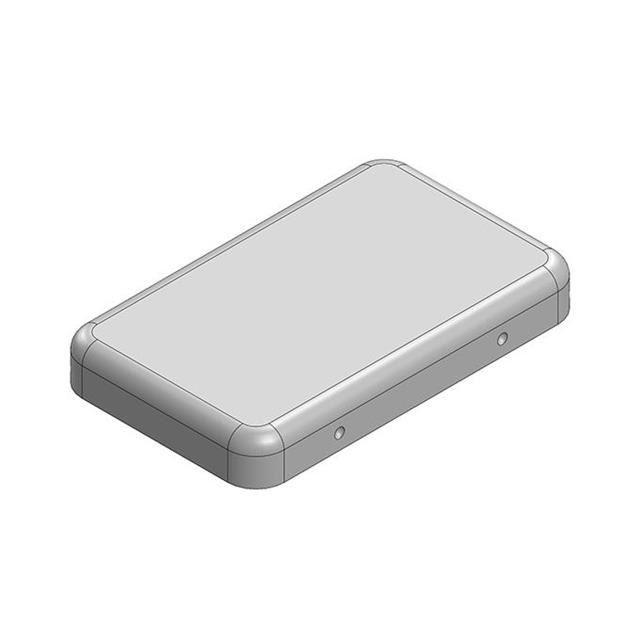

Masach Tech Ltd. MS148-10C-NS	Cover			0.079 in	2 mm			Snap Fit	Non-Vented	0.598 in	15.2 mm	0.366 in	9.3 mm

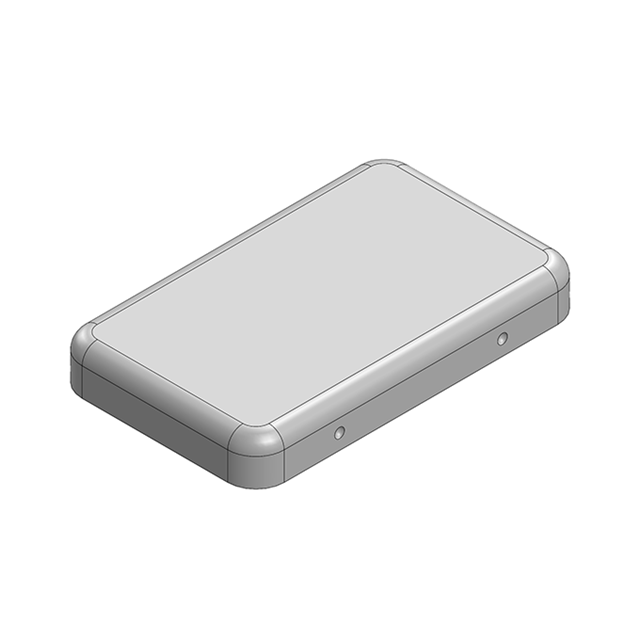

Masach Tech Ltd. MS148-10C	Cover			0.079 in	2 mm			Snap Fit	Non-Vented	0.598 in	15.2 mm	0.366 in	9.3 mm
