0324-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Termination	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Board Thickness	Board Thickness
Mill-Max Manufacturing Corp. 0324-2-15-80-34-80-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	12.12 mm	0.477 in	Tin	Swage	1.02 mm	0.04 "	200 Áin	5.08 Ám	0.094 in	2.39 mm	Beryllium Copper	1.63 mm	0.064 in	Standard Tail	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 0324-2-15-15-34-14-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	12.12 mm	0.477 in	Gold	Swage	1.02 mm	0.04 "	10 Áin	0.25 Ám	0.094 in	2.39 mm	Beryllium Copper	1.63 mm	0.064 in	Standard Tail	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 0324-2-15-80-34-14-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	12.12 mm	0.477 in	Gold	Swage	1.02 mm	0.04 "	10 Áin	0.25 Ám	0.094 in	2.39 mm	Beryllium Copper	1.63 mm	0.064 in	Standard Tail	0.125 in	3.18 mm

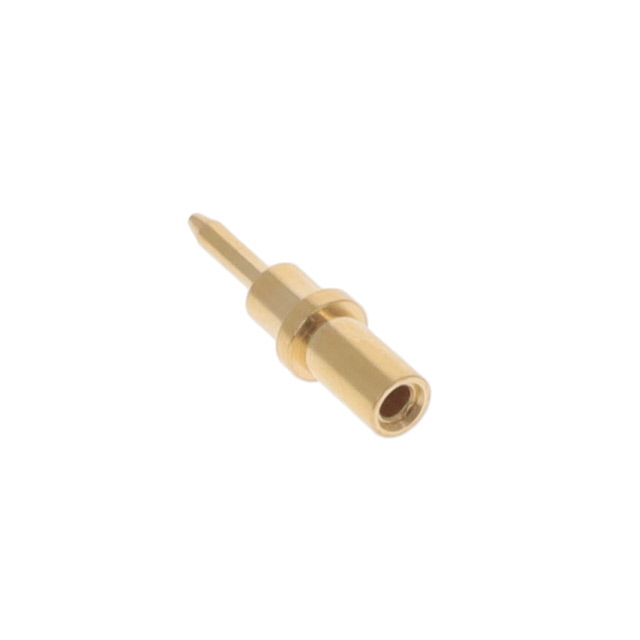

Mill-Max Manufacturing Corp. 0324-2-15-15-34-27-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	12.12 mm	0.477 in	Gold	Swage	1.02 mm	0.04 "	30 Áin	0.76 Ám	0.094 in	2.39 mm	Beryllium Copper	1.63 mm	0.064 in	Standard Tail	0.125 in	3.18 mm	1.57 mm	0.062 "
Mill-Max Manufacturing Corp. 0324-2-15-01-34-01-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	12.12 mm	0.477 in	Tin-Lead	Swage	1.02 mm	0.04 "	200 Áin	5.08 Ám	0.094 in	2.39 mm	Beryllium Copper	1.63 mm	0.064 in	Standard Tail	0.125 in	3.18 mm	1.57 mm	0.062 "
Mill-Max Manufacturing Corp. 0324-2-15-80-34-27-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	12.12 mm	0.477 in	Gold	Swage	1.02 mm	0.04 "	30 Áin	0.76 Ám	0.094 in	2.39 mm	Beryllium Copper	1.63 mm	0.064 in	Standard Tail	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 0324-2-15-01-34-27-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	12.12 mm	0.477 in	Gold	Swage	1.02 mm	0.04 "	30 Áin	0.76 Ám	0.094 in	2.39 mm	Beryllium Copper	1.63 mm	0.064 in	Standard Tail	0.125 in	3.18 mm	1.57 mm	0.062 "
