3545S Series
Manufacturer: Bourns Inc.
Beta
⌘K

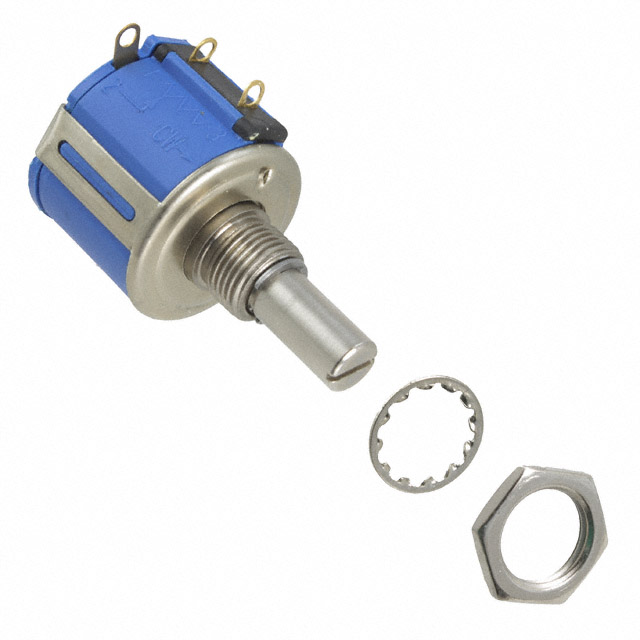

POT 5K OHM 1.5W WIREWOUND LINEAR
| Part | Size - Body [diameter] | Size - Body [diameter] | Resistance (Ohms) | Built in Switch | Number of Turns | Tolerance | Rotation | Termination Style | Resistive Material | Actuator Length [x] | Actuator Length [x] | Temperature Coefficient | Power (Watts) | Mounting Type | Adjustment Type | Actuator Type | Bushing Thread | Taper | Number of Gangs | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 22.23 mm | 0.875 " | 5 kOhms | None | 5 | 5 % | 1800 ° | Solder Lug | Wirewound | 0.812 in | 20.63 mm | 50 ppm/░C | 1.5 W | Panel Mount | User Defined | Slotted | 3/8-32 | Linear | 1 | 0.2497 in | 6.34 mm | |
Bourns Inc. | 22.23 mm | 0.875 " | None | 5 | 5 % | 1800 ° | Solder Lug | Wirewound | 0.812 in | 20.63 mm | 50 ppm/░C | 1.5 W | Panel Mount | User Defined | Slotted | 3/8-32 | Linear | 1 | 0.2497 in | 6.34 mm | 1k | |

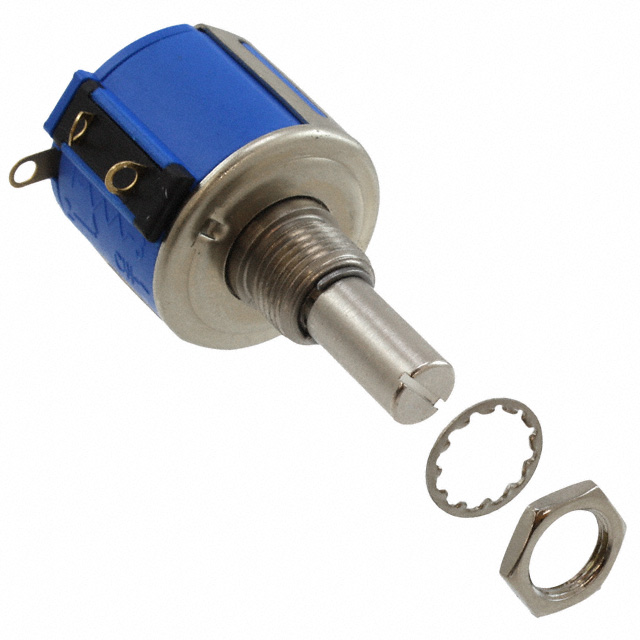

 Bourns Inc. | 22.23 mm | 0.875 " | None | 5 | 5 % | 1800 ° | Solder Lug | Wirewound | 0.812 in | 20.63 mm | 50 ppm/░C | 1.5 W | Panel Mount | User Defined | Slotted | 3/8-32 | Linear | 1 | 0.2497 in | 6.34 mm | 10k |
