MOP-TFT320240 Series

Catalog

TFT DISPLAYS & ACCESSORIES 3.5 IN TFT CAPACITIVE TOUCH

Part	Dot Pitch [y]	Dot Pitch [x]	Viewing Area [y]	Viewing Area [x]	Backlight	Touchscreen	Graphics Color	Display Type	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Interface	Viewing Area [z]

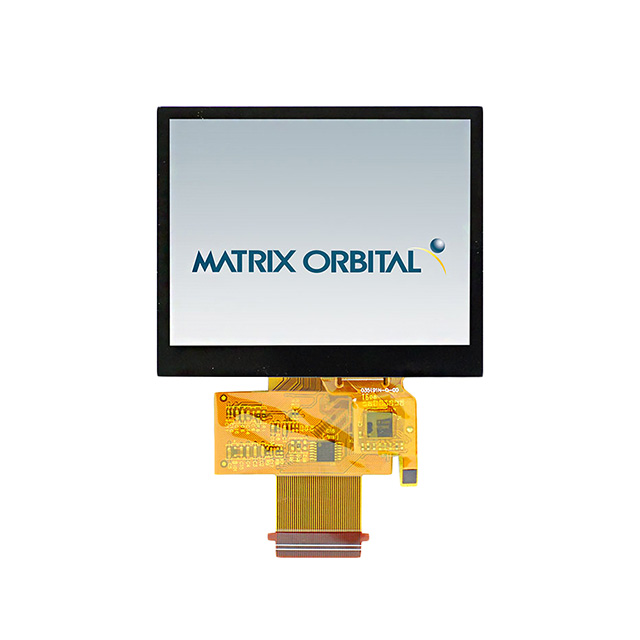

Matrix Orbital MOP-TFT320240-35A-BLM-TPC	0.22 mm	0.22 mm	53.56 mm	71.08 mm	LED	Capacitive	Blue Green Red	TFT - Color	320	240	Transmissive	Parallel 24-Bit (RGB)

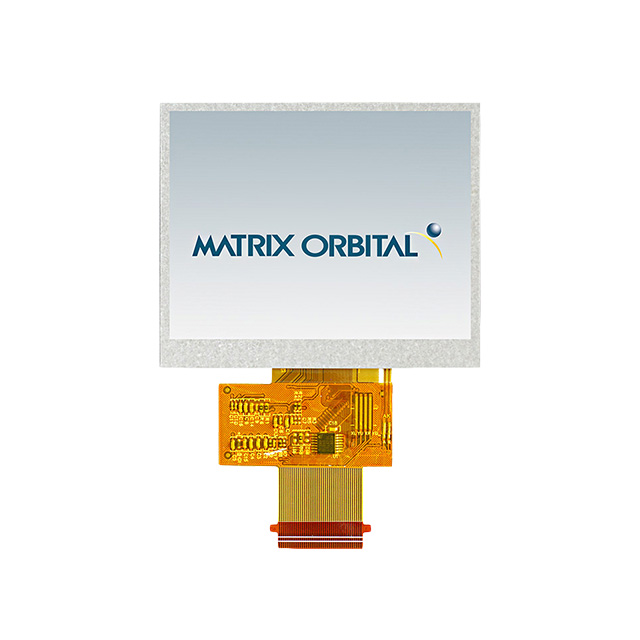

Matrix Orbital MOP-TFT320240-35A-BLM-TPN	0.22 mm	0.22 mm	52.56 mm	70.08 mm	LED		Blue Green Red	TFT - Color	320	240	Transmissive	Parallel 24-Bit (RGB)

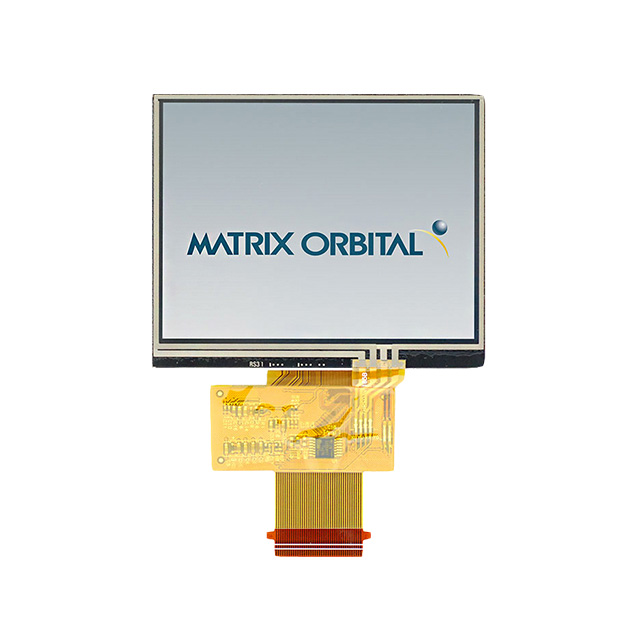

Matrix Orbital MOP-TFT320240-35A-BLM-TPR	0.22 mm	0.22 mm	54.78 mm	72.28 mm	LED	Resistive	Blue Green Red	TFT - Color	320	240	Transmissive	Parallel 24-Bit (RGB)

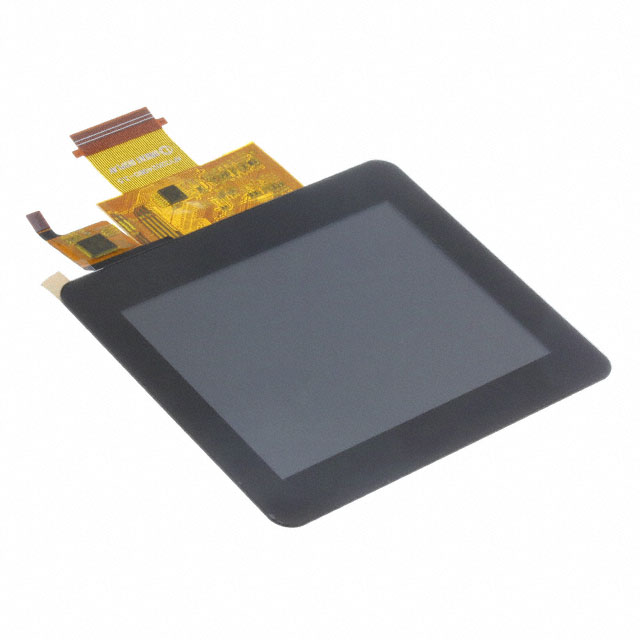

Matrix Orbital MOP-TFT320240-35G-BLM-TPC	0.22 mm	0.22 mm	73.1 mm		LED	Capacitive	Blue Green Red	TFT - Color	320	240 pixels	Transmissive	Parallel 24-Bit (RGB)	55.5 mm
