EN3P5M Series

Catalog

CONN RCPT MALE 5POS GOLD SOLDER

Part	Connector Type	Insert Material	Voltage Rating	Contact Material	Termination	Mounting Feature	Orientation	Mounting Type	Ingress Protection	Fastening Type	Color	Shielding	Primary Material	Contact Finish - Mating	Applications	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]

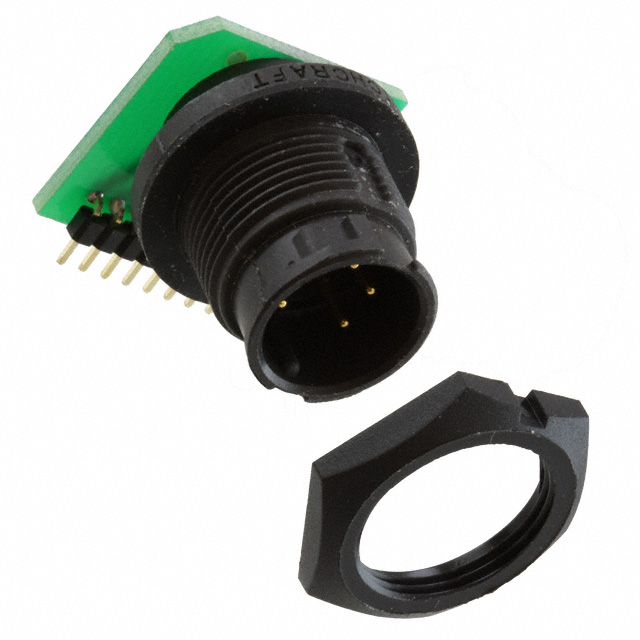

Switchcraft Inc. EN3P5MRAPCBN	Male Pins Receptacle	Elastomer	250 VAC	Copper Alloy	Circuit Board Solder	Bulkhead - Front Side Nut	Keyed	Panel Mount Right Angle Through Hole	IP66/IP68	Bayonet Lock	Black	Unshielded	Plastic	Gold	General Purpose Instrumentation Marine Medical	4 A	UL94 V-0	65 °C	-40 °C

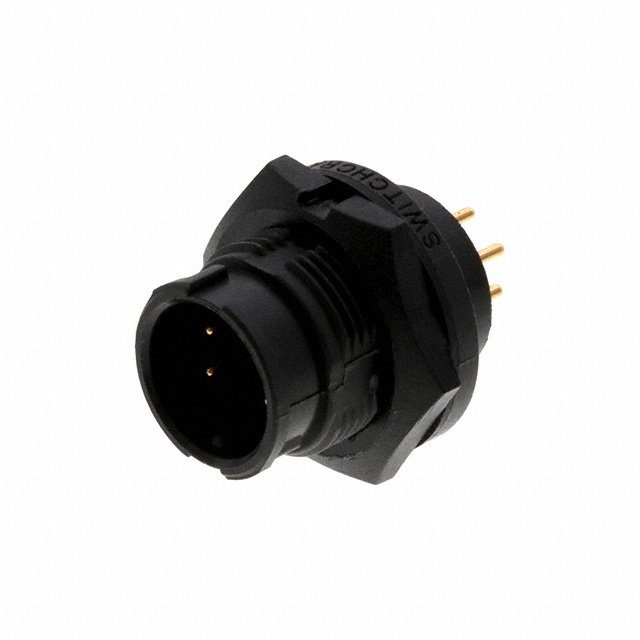

Switchcraft Inc. EN3P5MPX	Male Pins Receptacle	Elastomer	250 VAC	Copper Alloy	Solder	Bulkhead - Front Side Nut	Keyed	Panel Mount Through Hole	IP66/IP68	Bayonet Lock	Black	Unshielded	Plastic	Gold	General Purpose Instrumentation Marine Medical	7.5 A	UL94 V-0	65 °C	-40 °C

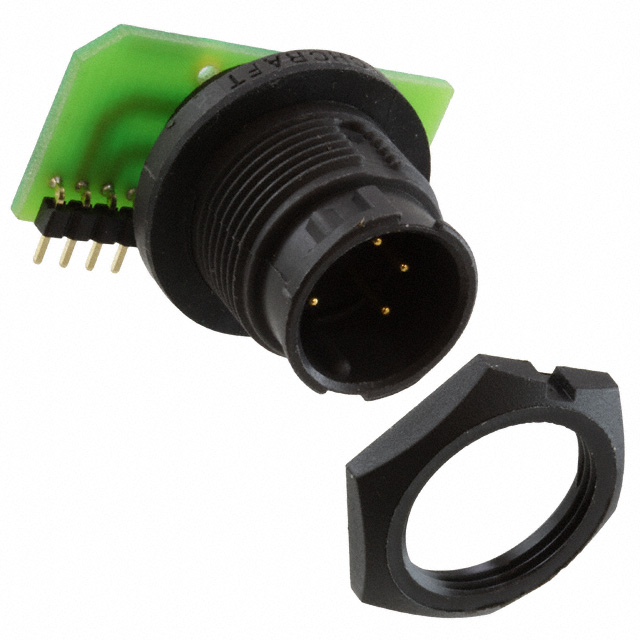

Switchcraft Inc. EN3P5MRAPCBW	Male Pins Receptacle	Elastomer	250 VAC	Copper Alloy	Circuit Board Solder	Bulkhead - Front Side Nut	Keyed	Panel Mount Right Angle Through Hole	IP66/IP68	Bayonet Lock	Black	Unshielded	Plastic	Gold	General Purpose Instrumentation Marine Medical	4 A	UL94 V-0	65 °C	-40 °C

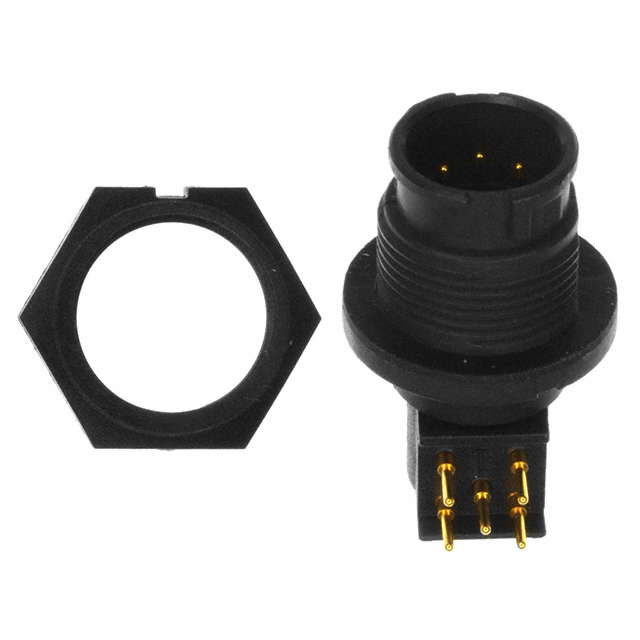

Switchcraft Inc. EN3P5MRAPC	Male Pins Receptacle	Elastomer	250 VAC	Copper Alloy	Solder	Bulkhead - Front Side Nut	Keyed	Panel Mount Right Angle Through Hole	IP66/IP68	Bayonet Lock	Black	Unshielded	Plastic	Gold	General Purpose Instrumentation Marine Medical	4 A	UL94 V-0	65 °C	-40 °C
