IL-G-9P Series
Manufacturer: JAE Electronics
Beta
⌘K

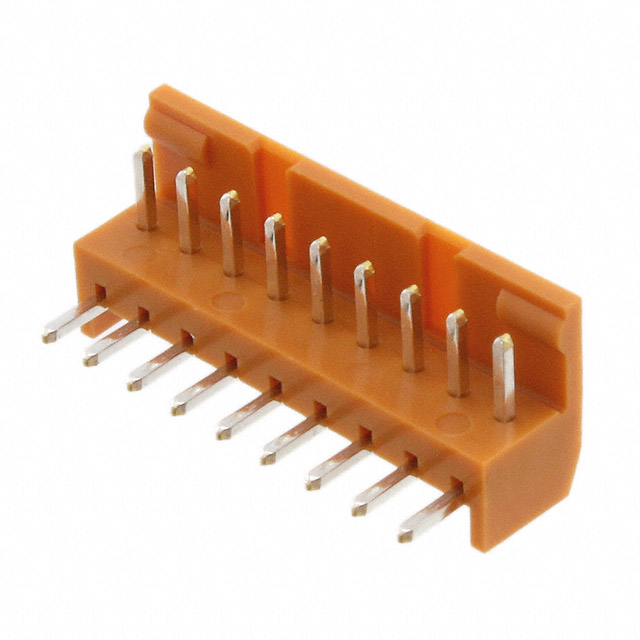

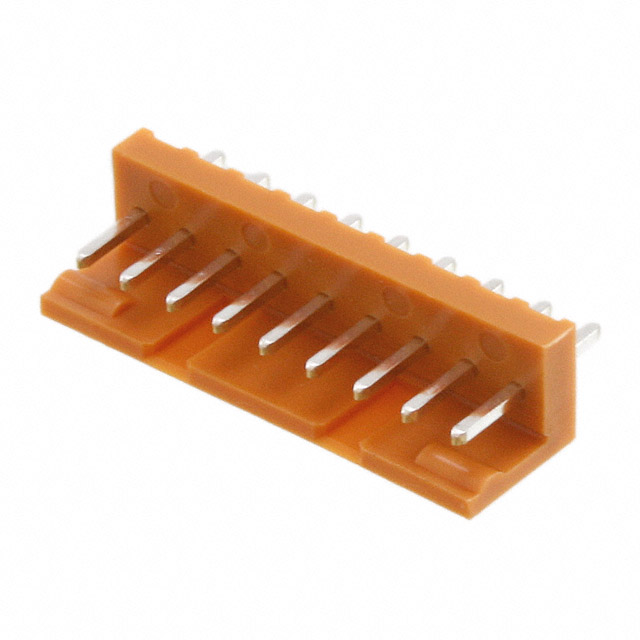

CONN HEADER R/A 9POS 2.5MM
| Part | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Insulation Color | Insulation Material | Contact Type | Insulation Height [custom] | Insulation Height [custom] | Contact Length - Post | Contact Length - Post | Shrouding | Contact Material | Number of Positions | Mounting Type | Style | Termination | Fastening Type | Current Rating (Amps) | Contact Shape | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Number of Positions Loaded | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 2.5 mm | 0.098 in | 4 mm | 0.157 in | Tin | Brown | Nylon 6/6 Polyamide (PA66) | Male Pin | 0.236 " | 6 mm | 0.138 in | 3.5 mm | Shrouded - 1 Wall | Brass | 9 | Right Angle Through Hole | Board to Cable/Wire | Solder | Friction Lock | 3 A | Square | 1 | 85 °C | -40 C | UL94 V-0 | All | Header |
