MEAS PTX101 Series

Catalog

PTX101-0002-H12-1110: CTO-11500000-30

Part	Package / Case	Actuator Type	Voltage - Supply	Termination Style	Output Signal	For Measuring	Linear Range [Max]	Linear Range [Max]	Linear Range [Min]	Linear Range [Min]	Technology	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output	Linear Range [Max] [x]	Linear Range [Max] [x]	Linear Range [Min] [x]	Linear Range [Min] [x]	Voltage - Supply [Max]	Voltage - Supply [Min]
TE Connectivity AMP Connectors PTX101-0002-H12-1110	Module	String Potentiometer	20 V	Cable	Clockwise Increase	Linear Position	50.8 mm	2 in	0 "	0 mm	Resistive	0.5 kOhms	90 °C	-40 C	Chassis Mount
TE Connectivity AMP Connectors PTX101-0100-H11-1110

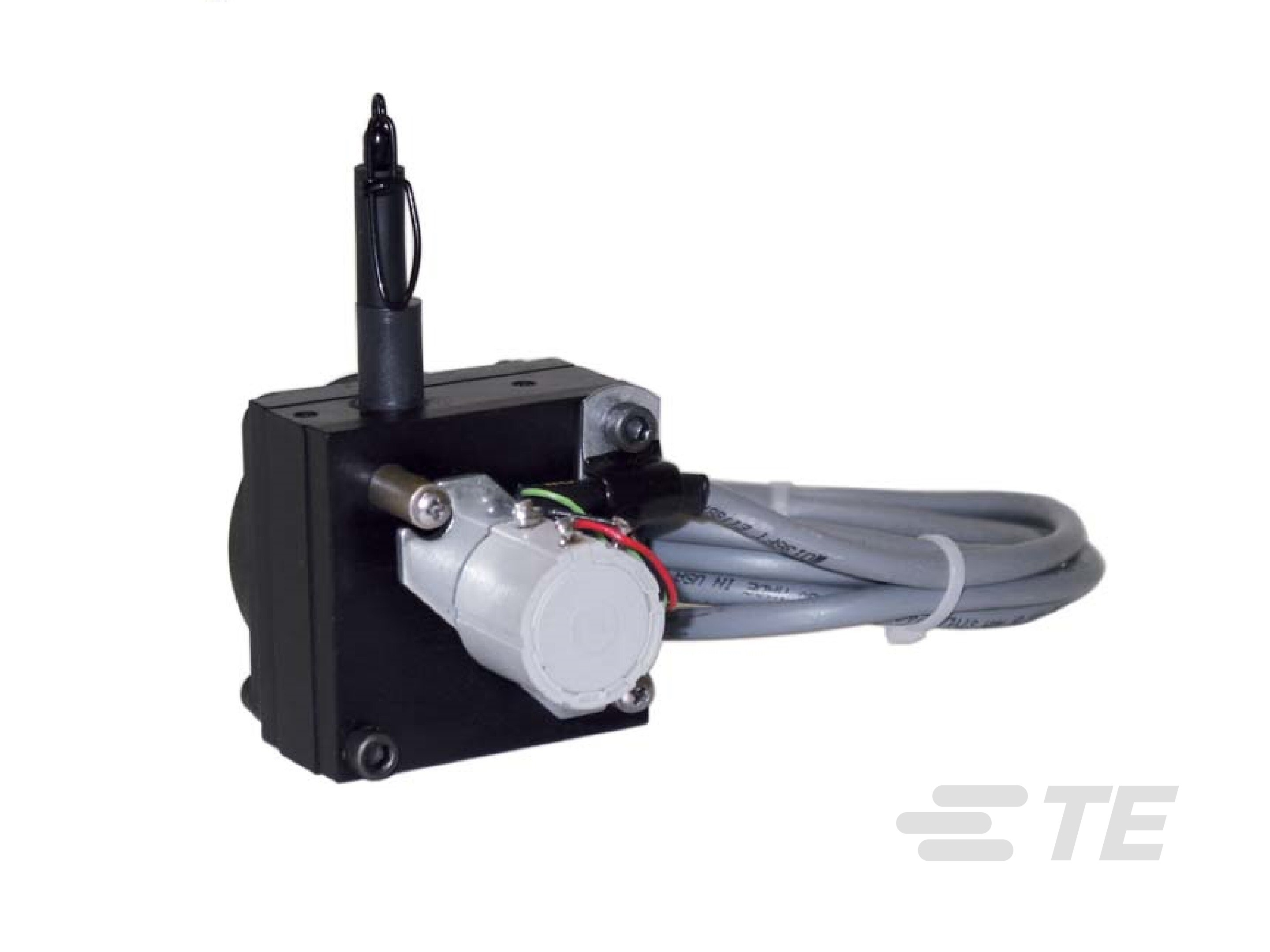

TE Connectivity AMP Connectors PTX101-0040-H11-4100	Module	String Potentiometer		Cable	Clockwise Increase	Linear Position					Resistive	10000 Ohms	90 °C	-40 C	Chassis Mount	Analog Voltage	40.16 in	1020 mm	0 mm	0 in	30 VDC	0 V
