1551 Series

Catalog

WIRE, HOOK UP MIL-W-76B TYPE MW, PVC, WHITE, 22 AWG, 0.357 MM², 1000 FT

Part	Jacket Color	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Qualification	Jacket (Insulation) Material	Conductor Material	Wire Gauge	Length [x]	Length [x]
ALPHA WIRE 1551 WH001	White	Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in	304.8 m	1000 ft	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG

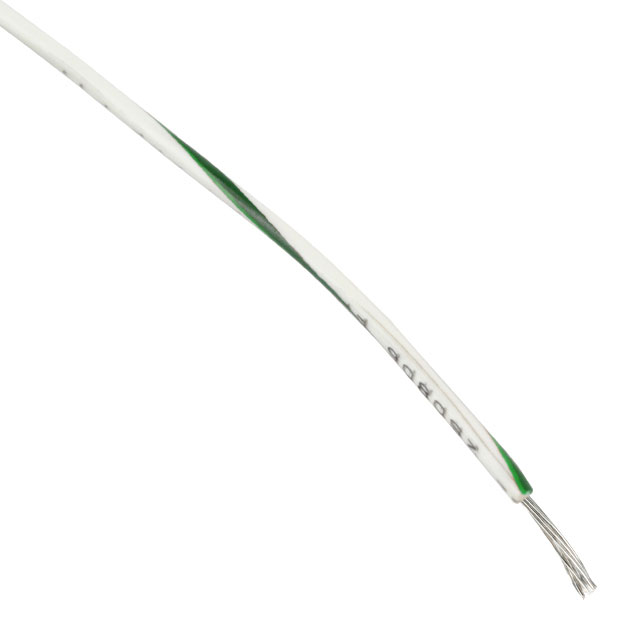

ALPHA WIRE 1551 WG005		Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in			MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG	100 ft	30.5 m
ALPHA WIRE 1551 WG001		Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in	304.8 m	1000 ft	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG
ALPHA WIRE 1551 OR005	Orange	Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in			MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG	100 ft	30.5 m

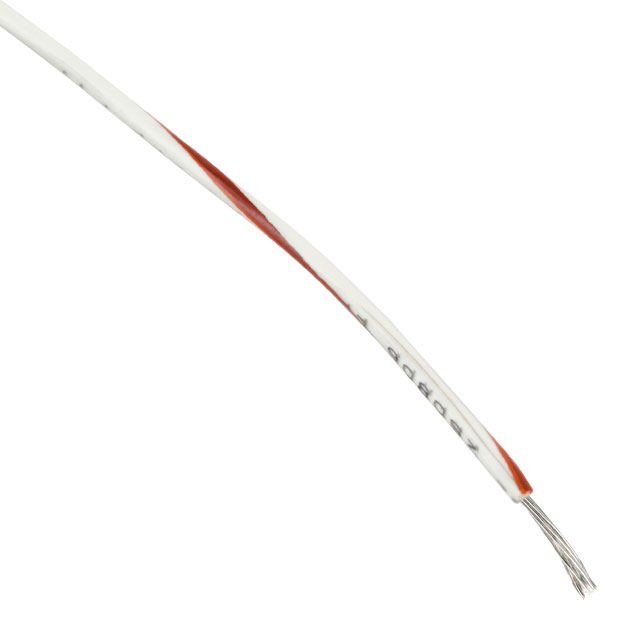

ALPHA WIRE 1551 WR005	White Red Stripe	Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in			MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG	100 ft	30.5 m
ALPHA WIRE 1551 WH005	White	Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in			MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG	100 ft	30.5 m
ALPHA WIRE 1551 BK001	Black	Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in	304.8 m	1000 ft	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG
ALPHA WIRE 1551 BR005	Brown	Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in			MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG	100 ft	30.5 m
ALPHA WIRE 1551 SL005	Slate	Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in			MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG	100 ft	30.5 m

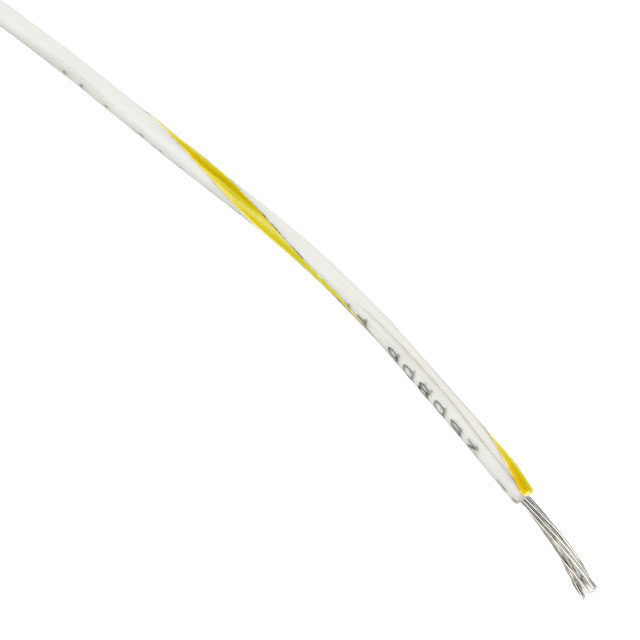

ALPHA WIRE 1551 WY001	White Yellow Stripe	Hook-Up	0.062 in	1.57 mm	1 kV	80 °C	-40 C	30 AWG	7	0.41 mm	0.016 in	304.8 m	1000 ft	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG
