Z51F0811 Series

Manufacturer: ZiLOG

Catalog

IC MCU 8BIT 8KB FLASH 16TSSOP

Part	Program Memory Type	Program Memory Size	Speed	Data Converters	Core Size	EEPROM Size [custom]	EEPROM Size [custom]	RAM Size [custom]	RAM Size [custom]	Mounting Type	Core Processor	Oscillator Type	Package / Case [y]	Package / Case	Package / Case [y]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Connectivity	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Package / Case [x]
ZiLOG Z51F0811RFX	FLASH	8 KB	12 MHz	A/D 8x12b	8-Bit	512	8	8	256	Surface Mount	8051	Internal	4.4 mm	16-TSSOP	0.173 in	1.8 V	5.5 V	I2C SPI UART/USART	14	85 C	-40 ¯C
ZiLOG Z51F0811RJX	FLASH	8 KB	12 MHz	A/D 12x12b	8-Bit	512	8	8	256	Surface Mount	8051	Internal		28-TSSOP		1.8 V	5.5 V	I2C SPI UART/USART	26	85 C	-40 ¯C	0.173 " 4.4 mm
ZiLOG Z51F0811QUX	FLASH	8 KB	12 MHz	A/D 15x12b	8-Bit	512	8	8	256	Surface Mount	8051	Internal		32-VFQFN Exposed Pad		1.8 V	5.5 V	I2C SPI UART/USART	30	85 C	-40 ¯C

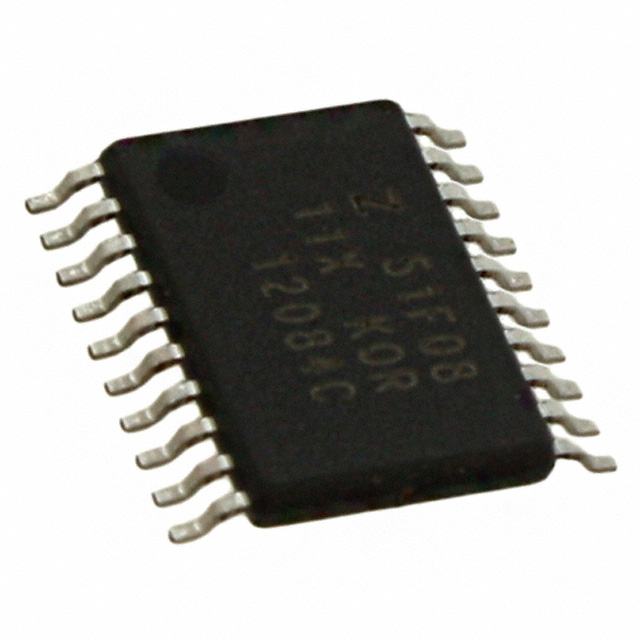

ZiLOG Z51F0811RHX	FLASH	8 KB	12 MHz	A/D 9x12b	8-Bit	512	8	8	256	Surface Mount	8051	Internal		20-TSSOP	4.4 mm	1.8 V	5.5 V	I2C SPI UART/USART	18	85 C	-40 ¯C		20-TSSOP	0.173 "
