RC1083B Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPST 8A 125V
| Part | Mechanical Life | Electrical Life | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Color - Actuator/Cap | Mounting Type | Termination Style | Approval Agency | Actuator Marking | Circuit | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

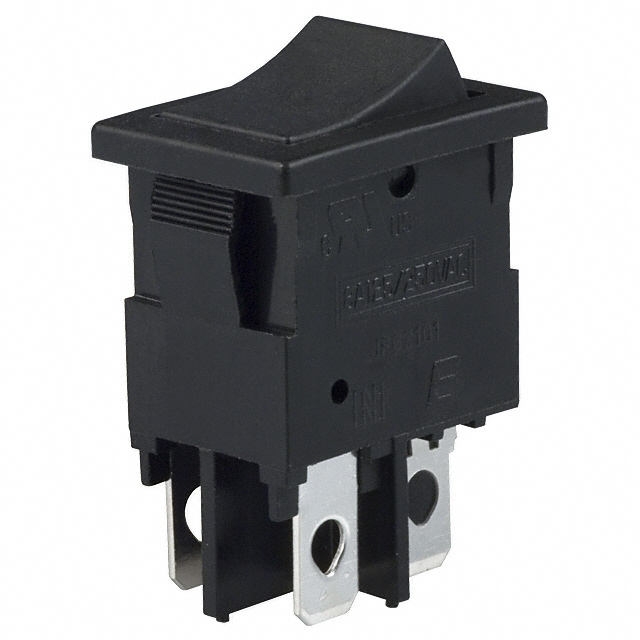

 E-Switch | 15000 Cycles | 10000 Cycles | On-Off | 8 A | 125 V | 13 mm | 19.3 mm | Black | Panel Mount Snap-In | Quick Connect | CSA cUL cULus UL VDE | No Marking | DPST | Concave (Curved) | 85 °C | -30 ░C |
 E-Switch | 15000 Cycles | 10000 Cycles | On-Off | 8 A | 125 V | 13 mm | 19.3 mm | Black | Panel Mount Snap-In | Quick Connect | CSA cUL cULus UL VDE | Rectangle on End | DPST | Concave (Curved) | 85 °C | -30 ░C |

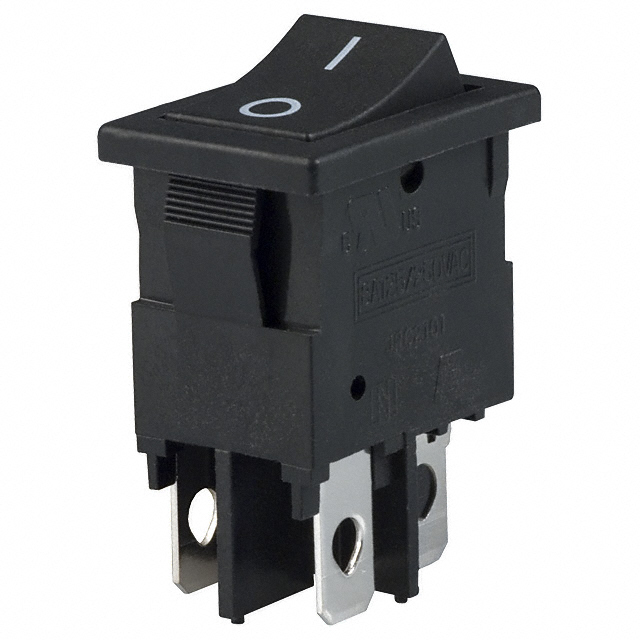

 E-Switch | 15000 Cycles | 10000 Cycles | On-Off | 8 A | 125 V | 13 mm | 19.3 mm | Black | Panel Mount Snap-In | Quick Connect | CSA cUL cULus UL VDE | O - | DPST | Concave (Curved) | 85 °C | -30 ░C |
