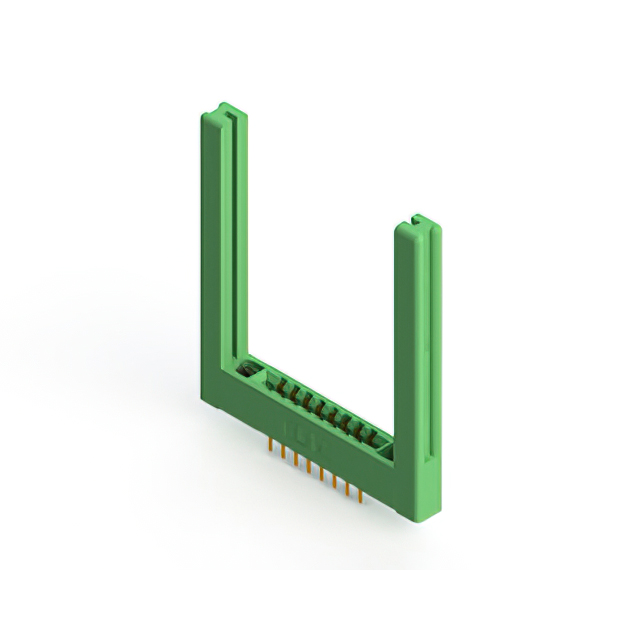

305-016 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 16POS 0.156
| Part | Mounting Type | Contact Type | Color | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Termination Rows | Contact Material | Number of Positions | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Read Out | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Board Edge Straddle Mount | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | 8 | 8 | 8 | Dual | Solder |
 EDAC Inc. | Board Edge Straddle Mount | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 2 | 8 | 8 | 8 | Dual | Solder |
 EDAC Inc. | Board Edge Straddle Mount | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | 2 | 8 | 8 | 8 | Dual | Solder | ||
 EDAC Inc. | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 2 | 8 | 8 | 8 | Dual | Solder Eyelet(s) | ||
 EDAC Inc. | Panel Mount Through Hole | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 2 | 8 | 8 | 8 | Dual | Solder | |
 EDAC Inc. | Board Edge Straddle Mount | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | 8 | 8 | 8 | Dual | Solder |
 EDAC Inc. | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 8 | 8 | 8 | Dual | Solder Eyelet(s) | ||||
 EDAC Inc. | Board Edge Straddle Mount | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | 2 | 8 | 8 | 8 | Dual | Solder | ||
 EDAC Inc. | Board Edge Straddle Mount | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 8 | 8 | 8 | Dual | Solder | |||
 EDAC Inc. | Board Edge Straddle Mount | Semi Bellows | Green | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Gold | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Copper Alloy | 16 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 8 | 8 | 8 | Dual | Solder |
