A-DS 15 Series

Catalog

CONN D-SUB PLUG 15POS VERT SLDR

Part	Voltage Rating	Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size, Connector Layout	Material Flammability Rating	Termination	Connector Style	Contact Type	Number of Positions	Contact Finish	Connector Type	Current Rating (Amps)	Contact Finish Thickness	Number of Rows [custom]	Mounting Type	Flange Feature	Features	Wire Gauge [Max]	Wire Gauge [Min]	Ingress Protection	Backset Spacing	Backset Spacing

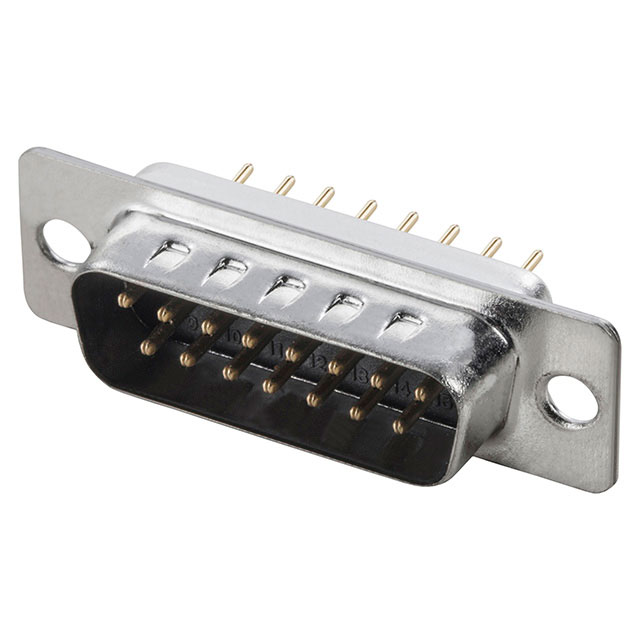

Assmann WSW Components A-DS 15 PP/Z-BK	250 VAC	Black	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	105 ░C	Copper Alloy	2	UL94 V-0	Solder	D-Sub	Signal	15	Gold	Plug Male Pins	3 A	Flash	2	Through Hole	Housing/Shell (Unthreaded)	Grounding Indents

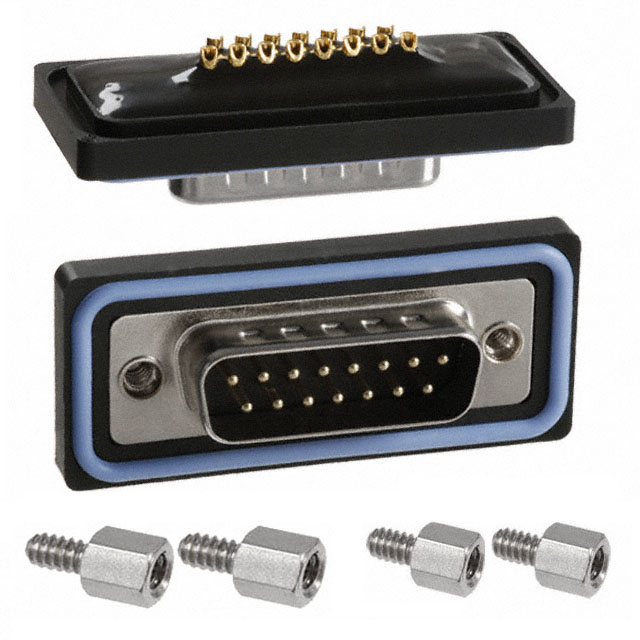

Assmann WSW Components A-DS 15 LL-WP		Black	Glass Filled Nylon Polyamide (PA)			Copper Alloy	2			D-Sub	Signal	15	Gold	Plug Male Pins			2	Panel Mount	Female Screwlock Mating Side	Grounding Indents	26 AWG	22 AWG	IP67 - Dust Tight Waterproof

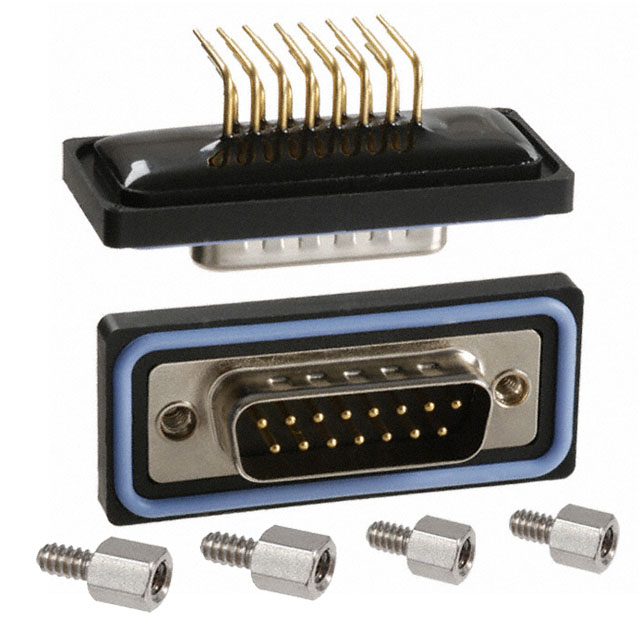

Assmann WSW Components A-DS 15 AA-WP		Black	Glass Filled Nylon Polyamide (PA)			Copper Alloy	2		Solder	D-Sub	Signal	15	Gold	Plug Male Pins			2	Panel Mount Right Angle Through Hole	Female Screwlock Mating Side	Grounding Indents			IP67 - Dust Tight Waterproof	0.244 in	6.2 mm
