HEDS-9100 Series

Catalog

ROTARY ENCODER OPTICAL 1000PPR

Part	Termination Style	Encoder Type	Output Type	Orientation	Mounting Type	Actuator Type	Pulses per Revolution

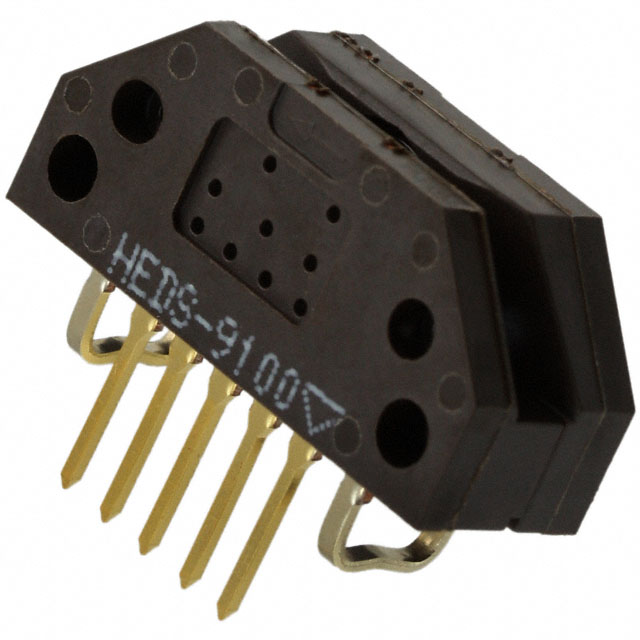

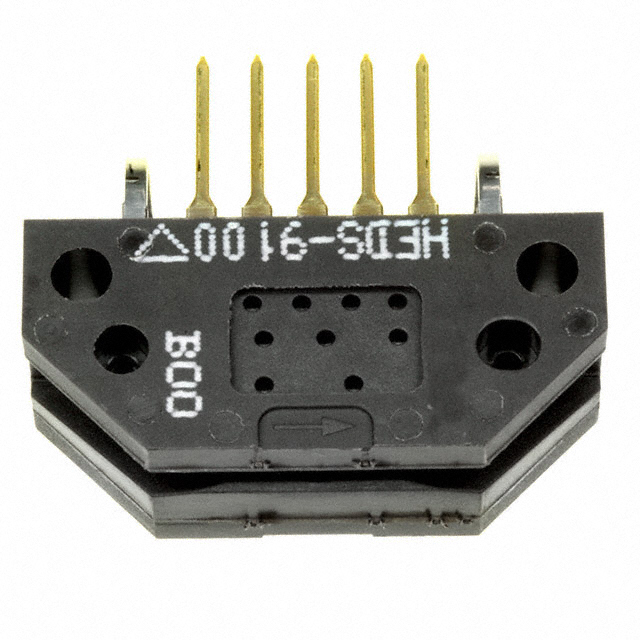

Broadcom Limited HEDS-9100#B00	Terminal Pins	Optical	Quadrature (Incremental)	Vertical	Chassis Mount	Codewheel Not Included	1000
Broadcom Limited HEDS-9100#S00	Terminal Pins	Optical	Quadrature (Incremental)	Vertical	Chassis Mount	Codewheel Not Included	50
Broadcom Limited HEDS-9100#K00	Terminal Pins	Optical	Quadrature (Incremental)	Vertical	Chassis Mount	Codewheel Not Included	96

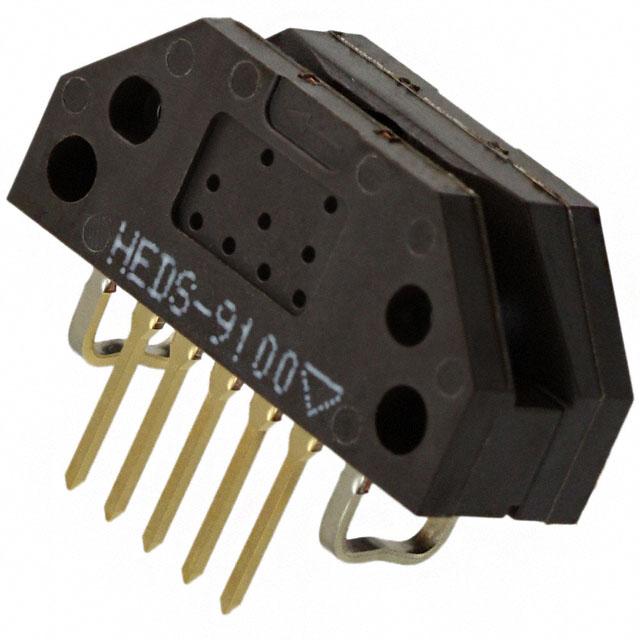

Broadcom Limited HEDS-9100#C00	Terminal Pins	Optical	Quadrature (Incremental)	Vertical	Chassis Mount	Codewheel Not Included	100

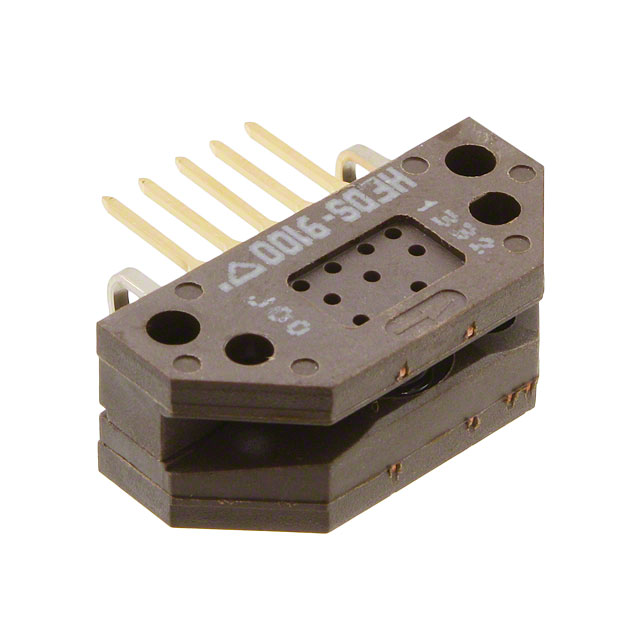

Broadcom Limited HEDS-9100#J00	Terminal Pins	Optical	Quadrature (Incremental)	Vertical	Chassis Mount	Codewheel Not Included	1024
Broadcom Limited HEDS-9100#I00	Terminal Pins	Optical	Quadrature (Incremental)	Vertical	Chassis Mount	Codewheel Not Included	512

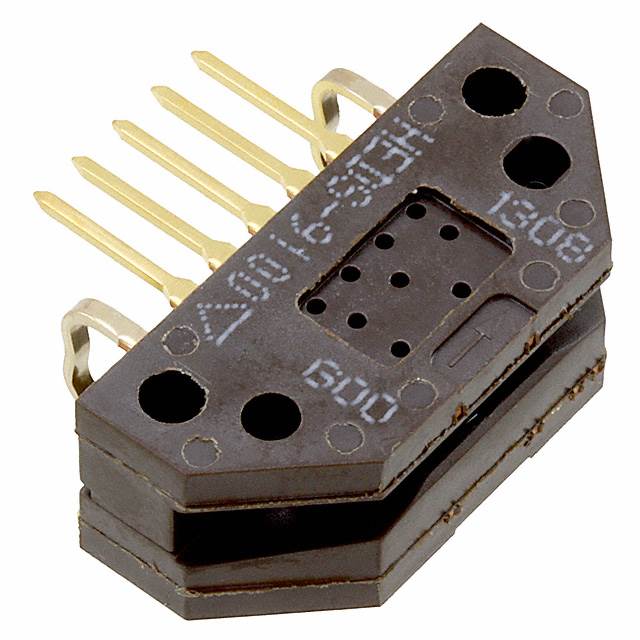

Broadcom Limited HEDS-9100#G00	Terminal Pins	Optical	Quadrature (Incremental)	Vertical	Chassis Mount	Codewheel Not Included	360

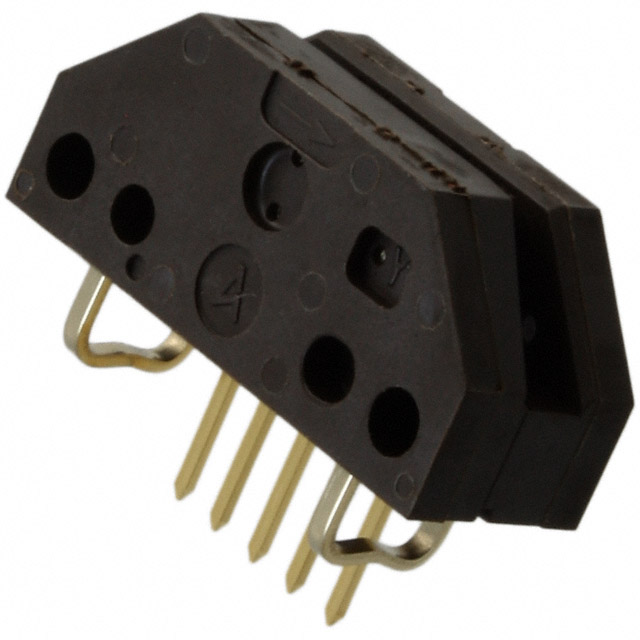

Broadcom Limited HEDS-9100#E00	Terminal Pins	Optical	Quadrature (Incremental)	Vertical	Chassis Mount	Codewheel Not Included	200
