SK Series
Manufacturer: NKK Switches
Beta
⌘K

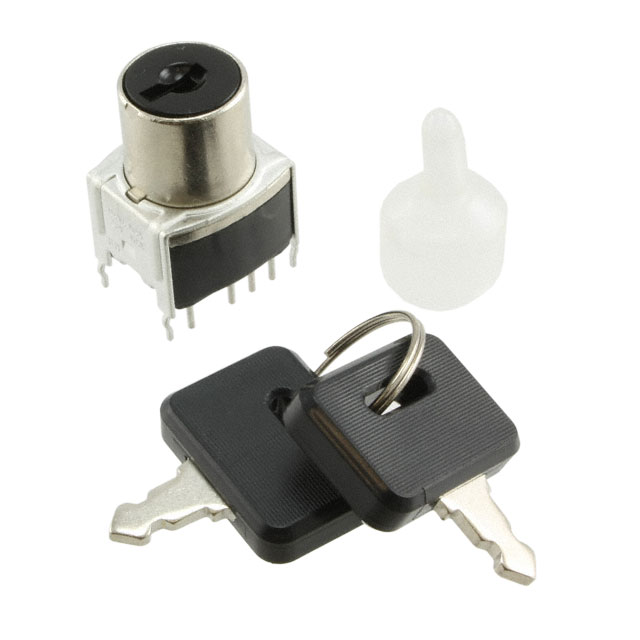

KEYLOCK SWITCH, PROCESS SEALED, ON-ON-ON, SP3T, SK SERIES, 3 POSITION, PC PIN
| Part | Mechanical Life | Electrical Life | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Features | Key Removable Positions | Mounting Type | Switch Function | Contact Timing | Voltage Rating - AC | Current Rating (Amps) | Voltage Rating - DC | Contact Material | Contact Finish | Actuator Type | Angle of Throw | Key Removable Positions | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 10000 Cycles | SP3T | -25 °C | 70 °C | PC Pin | Process Sealed | 2 | Through Hole | On-On-On | Non-Shorting (BBM) | 28 V | 0.4 VA | 28 V | Beryllium Copper | Gold | Flat Key | 45 ° | ||
 NKK Switches | SP3T | -40 C | 85 °C | Solder Lug | Antistatic | Panel Mount Snap-In | On-On-On | Non-Shorting (BBM) | 28 V | 0.4 VA | 28 V | Beryllium Copper | Gold | Flat Key | 45 ° | All | 14.5 mm |
