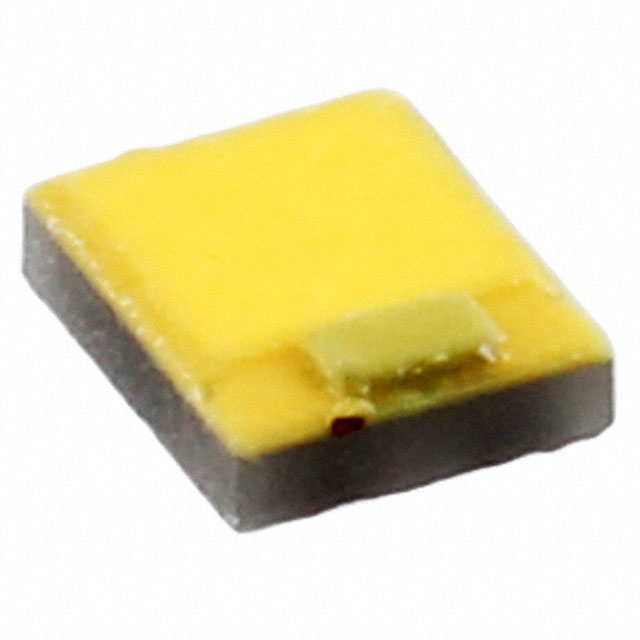

LXZ2 Series

Manufacturer: Lumileds

Catalog

LED UNI-COLOR WHITE 185LM 2700K CHIP LED 3-PIN SMD T/R

Part	Thermal Resistance of Package	Mounting Type	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	CCT (K)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Current - Max [Max]	Flux @ 85°C, Current - Test	Color	Package / Case	Viewing Angle
Lumileds LXZ2-2780-3	3 °C/W	Surface Mount	2.8 V	SMD	0.08 "	1.64 mm	0.065 in	2.04 mm	2700 K	3-Step MacAdam Ellipse	0.78 mm	0.031 in	94 lm/W	80	1.2 A	185 lm	Warm White	0806 (2016 Metric)	120 °
Lumileds LXZ2-3590-5	3 °C/W	Surface Mount	2.8 V	SMD	0.08 "	1.64 mm	0.065 in	2.04 mm			0.78 mm	0.031 in	87 lm/W	90	1.2 A	171 lm	Warm White	0806 (2016 Metric)	116 °
Lumileds LXZ2-3580-5	3 °C/W	Surface Mount	2.8 V	SMD	0.08 "	1.64 mm	0.065 in	2.04 mm			0.78 mm	0.031 in	105 lm/W	80	1.2 A	205 lm	Warm White	0806 (2016 Metric)	120 °
Lumileds LXZ2-2780-5	3 °C/W	Surface Mount	2.8 V	SMD	0.08 "	1.64 mm	0.065 in	2.04 mm	2700 K	5-Step MacAdam Ellipse	0.78 mm	0.031 in	94 lm/W	80	1.2 A	185 lm	Warm White	0806 (2016 Metric)	120 °
Lumileds LXZ2-2790-5	3 °C/W	Surface Mount	2.8 V	SMD	0.08 "	1.64 mm	0.065 in	2.04 mm	2700 K	5-Step MacAdam Ellipse	0.78 mm	0.031 in	82 lm/W	90	1.2 A		Warm White	0806 (2016 Metric)	120 °
