MAX489 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

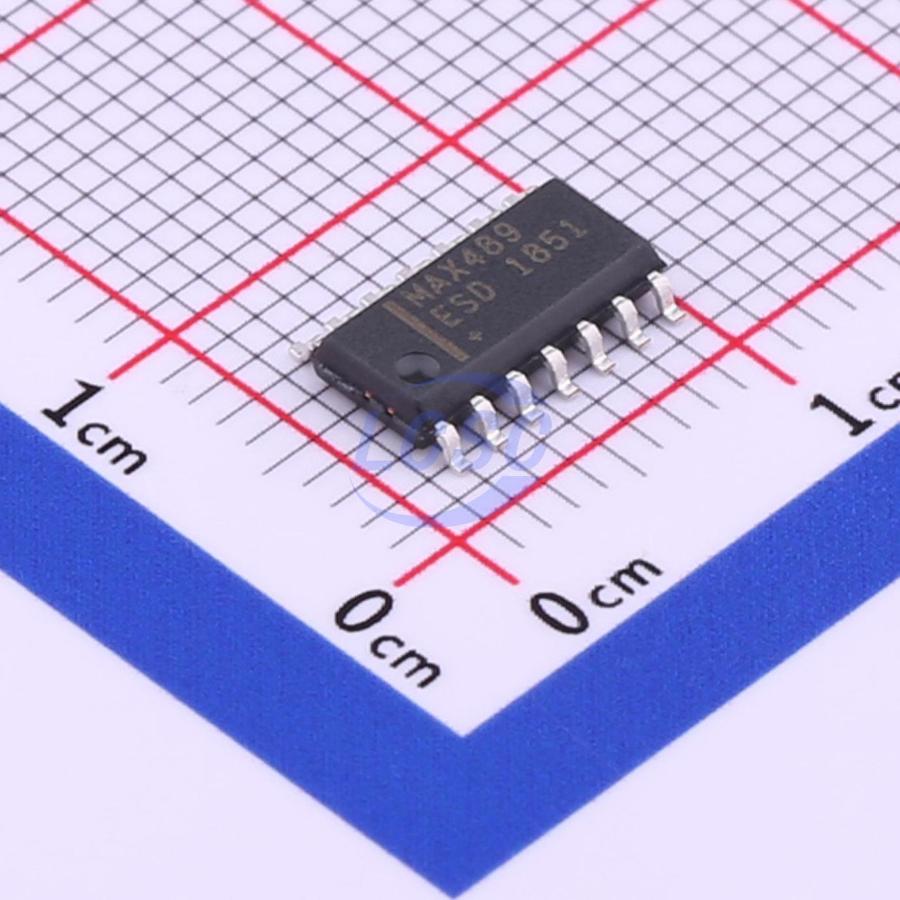

IC TRANSCEIVER FULL 1/1 14SOIC

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Protocol	Mounting Type	Duplex	Package / Case [x]	Package / Case [y]	Package / Case	Receiver Hysteresis
Analog Devices Inc./Maxim Integrated MAX489EESD+T	Transceiver	85 °C	-40 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Surface Mount	Full	0.154 in	3.9 mm	14-SOIC	70 mV
Analog Devices Inc./Maxim Integrated MAX489CPD	Transceiver	70 °C	0 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Through Hole	Full	0.3 "	7.62 mm	14-DIP	70 mV
Analog Devices Inc./Maxim Integrated MAX489CSD	Transceiver	70 °C	0 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Surface Mount	Full	0.154 in	3.9 mm	14-SOIC	70 mV
Analog Devices Inc./Maxim Integrated MAX489EESD	Transceiver	85 °C	-40 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Surface Mount	Full	0.154 in	3.9 mm	14-SOIC	70 mV
Analog Devices Inc./Maxim Integrated MAX489ESD+T	Transceiver	85 °C	-40 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Surface Mount	Full	0.154 in	3.9 mm	14-SOIC	70 mV
Analog Devices Inc./Maxim Integrated MAX489EPD+	Transceiver	85 °C	-40 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Through Hole	Full	0.3 "	7.62 mm	14-DIP	70 mV
Analog Devices Inc./Maxim Integrated MAX489ECPD	Transceiver	70 °C	0 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Through Hole	Full	0.3 "	7.62 mm	14-DIP	70 mV
Analog Devices Inc./Maxim Integrated MAX489ESD+	Transceiver	85 °C	-40 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Surface Mount	Full	0.154 in	3.9 mm	14-SOIC	70 mV
Analog Devices Inc./Maxim Integrated MAX489EEPD+	Transceiver	85 °C	-40 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Through Hole	Full	0.3 "	7.62 mm	14-DIP	70 mV
Analog Devices Inc./Maxim Integrated MAX489CSD+T	Transceiver	70 °C	0 °C	4.75 V	5.25 V	250 KBd	RS422 RS485	Surface Mount	Full	0.154 in	3.9 mm	14-SOIC	70 mV
