H2103 Series
Manufacturer: Harwin Inc.
Beta
⌘K
MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES
| Part | Board Thickness | Board Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Length - Above Flange | Length - Above Flange [x] | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Type | Contact Finish | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Mounting Type | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Length - Overall | Length - Overall | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

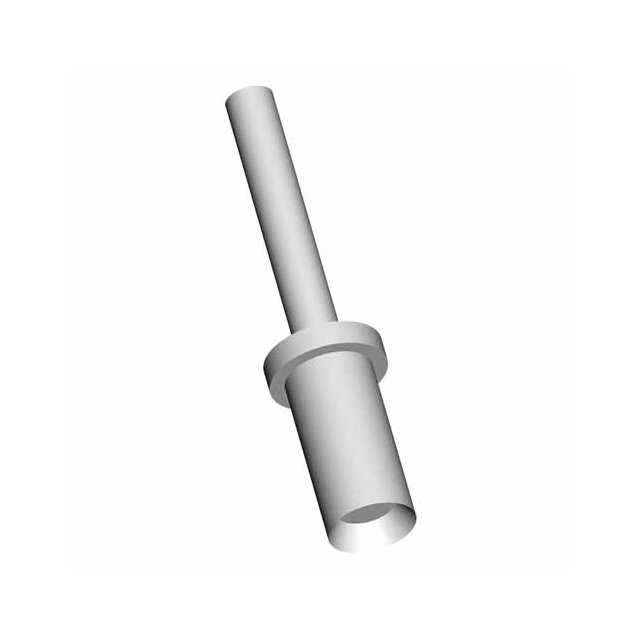

 Harwin Inc. | 0.126 in | 3.2 mm | 3.68 mm | 0.145 " | Brass | 6.02 mm | 0.237 in | 0.402 " | 10.2 mm | Swage | PC Pin | Tin | Single End | 0.094 " | 2.39 mm | Non-Insulated | Through Hole | 0.97 mm | 0.038 in | 1.87 mm | 0.074 " | 0.07 in | 1.78 mm | ||||

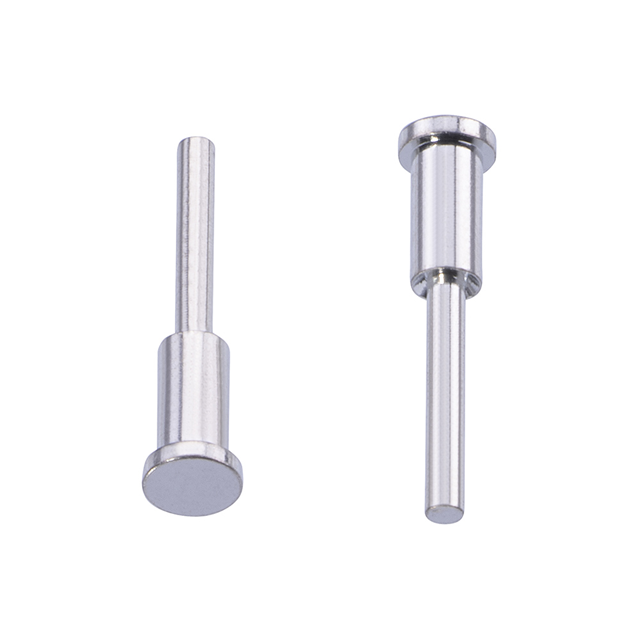

 Harwin Inc. | 0.126 in | 3.2 mm | Brass | Solder | PC Pin | Tin | Single End | 0.094 " | 2.39 mm | Non-Insulated | Through Hole | 1.87 mm | 0.074 " | 0.07 in | 1.78 mm | 0.415 in | 10.54 mm | 0.038 in | 0.97 mm |
