1337582 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

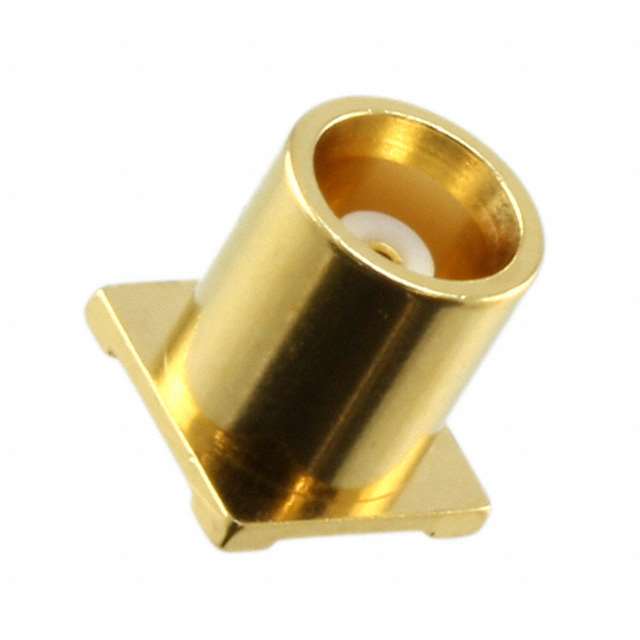

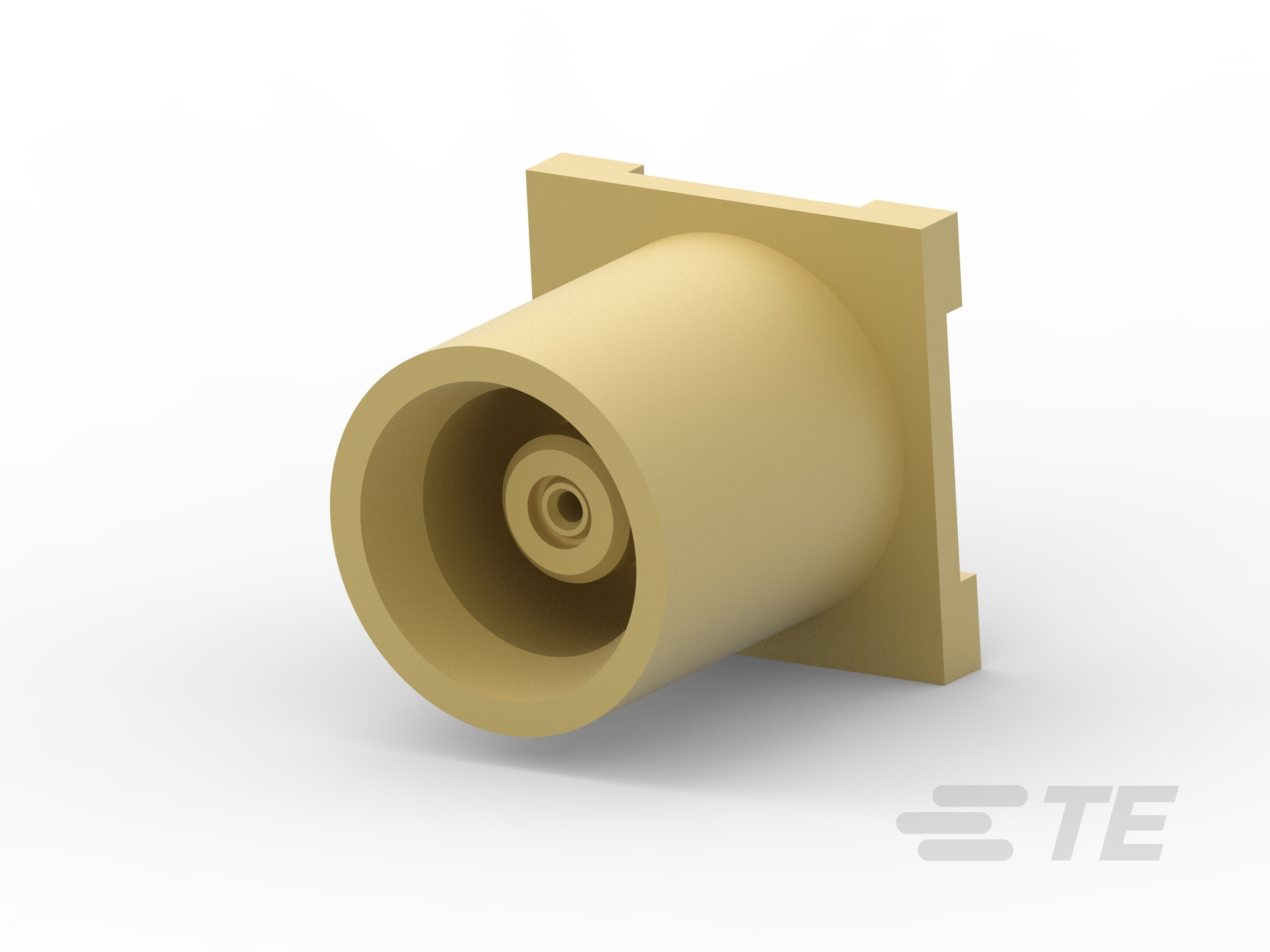

CONN MCX JACK STR 50 OHM SMD
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Voltage Rating | Dielectric Material | Insertion Loss | Center Contact Plating | Body Material | Frequency - Max [Max] | Number of Ports | Impedance | Shield Termination | Contact Termination | Fastening Type | Connector Type | Mounting Type | Housing Color | Connector Style | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | -65 ░C | 165 °C | 500 | 335 V | Polytetrafluoroethylene (PTFE) | 0.1 dB | Gold | Brass | 6000 MHz | 1 | 50 Ohms | Solder | Solder | Snap-On | Female Socket Jack | Surface Mount | Gold | MCX | Phosphor Bronze |
 TE Connectivity AMP Connectors | Gold | -65 ░C | 165 °C | 500 | 335 V | Polytetrafluoroethylene (PTFE) | 0.1 dB | Gold | Brass | 6000 MHz | 1 | 50 Ohms | Solder | Solder | Snap-On | Female Socket Jack | Surface Mount | Gold | MCX | Phosphor Bronze |
