VB10 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

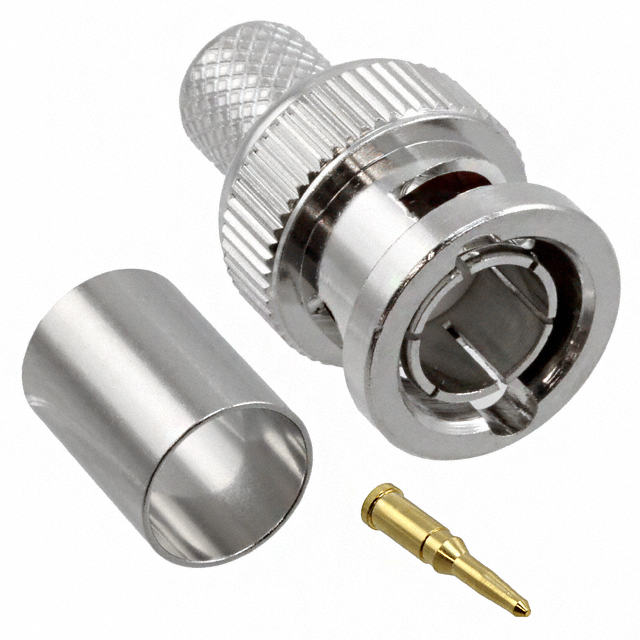

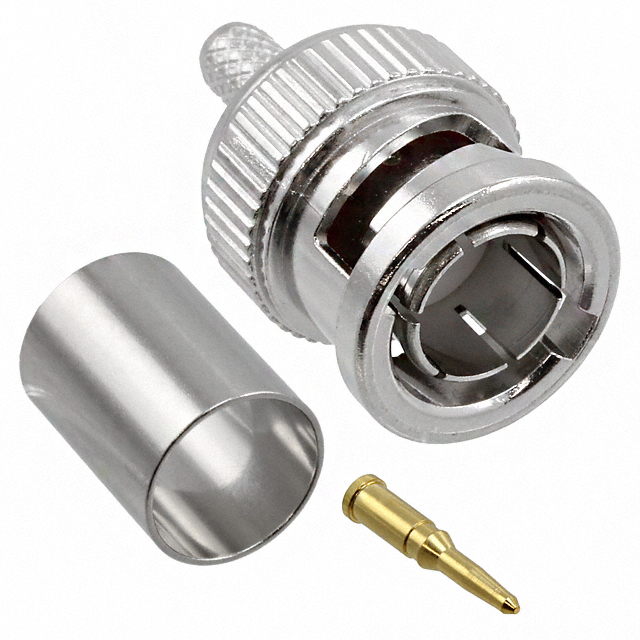

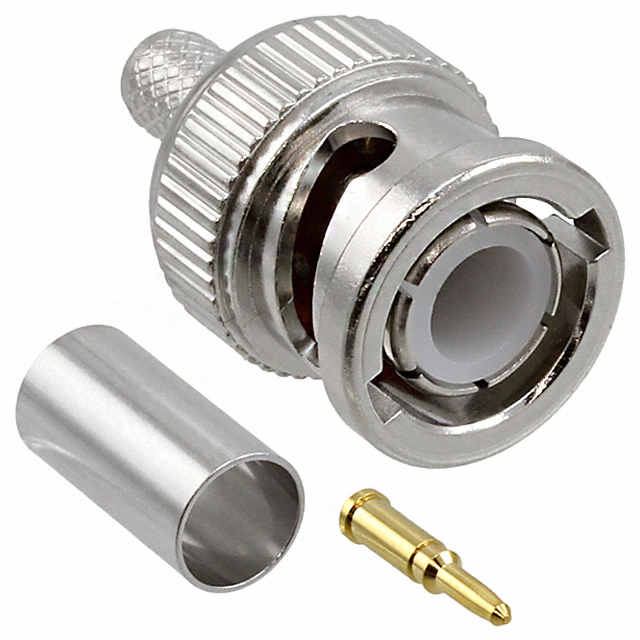

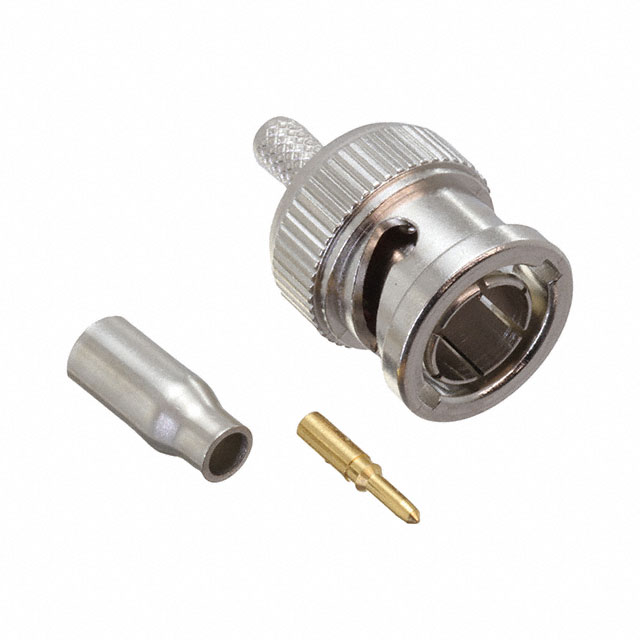

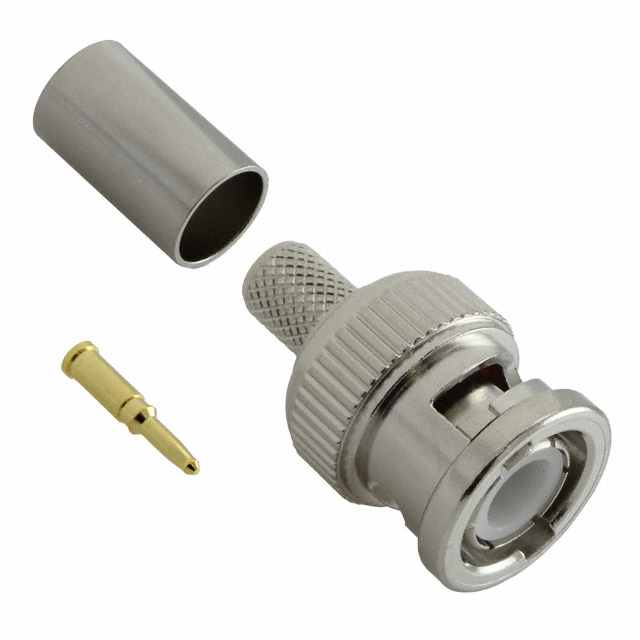

CONN BNC PLUG STR CRIMP
| Part | Center Contact Plating | Cable Group | Mounting Type | Shield Termination | Connector Style | Contact Termination | Connector Type | Number of Ports | Fastening Type | Mating Cycles | Insertion Loss | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Includes | Center Contact Material | Housing Color | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Gold | Belden 9275 | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | |||||||||||||
 Cinch Connectivity Solutions | Gold | 188 316 KX22 KX3 RG-174 URM-95 | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | 500 | 0.2 dB | Nickel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 500 V | 1 Connector 1 Contact 1 Ferrule | Brass | Silver | 4 GHz | 50 Ohms |
 Cinch Connectivity Solutions | Gold | RG-59 | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | 500 | 0.2 dB | Nickel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 500 V | 1 Connector 1 Contact 1 Ferrule | Brass | Silver | 1 GHz | 75 Ohms |
Cinch Connectivity Solutions | Gold | PSF1/3M | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | 500 | 0.1 dB | Nickel | Polyoxymethylene (POM) | -55 C | 85 °C | Brass | 500 V | 1 Connector 1 Contact 1 Ferrule | Brass | Silver | 1 GHz | 75 Ohms |
Cinch Connectivity Solutions | Gold | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | ||||||||||||||
 Cinch Connectivity Solutions | Gold | 223 400 RG-142 | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | 500 | 0.2 dB | Nickel | Polyoxymethylene (POM) | -55 C | 85 °C | Brass | 500 V | 1 Connector 1 Contact 1 Ferrule | Brass | Silver | 4 GHz | 50 Ohms |
 Cinch Connectivity Solutions | Gold | 187 RG-179 | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | 500 | 0.1 dB | Nickel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 500 V | 1 Connector 1 Contact 1 Ferrule | Brass | Silver | 1 GHz | 75 Ohms |
 Cinch Connectivity Solutions | Gold | CT125 | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | 500 | 0.1 dB | Nickel | Polyoxymethylene (POM) Acetal | -55 C | 85 °C | Brass | 500 V | 1 Connector 1 Contact 1 Ferrule | Brass | Silver | 1 GHz | 75 Ohms |
Cinch Connectivity Solutions | Gold | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | ||||||||||||||
 Cinch Connectivity Solutions | Gold | 187 RG-179 | Free Hanging (In-Line) | Crimp | BNC | Crimp | Plug Male Pin | 1 | Bayonet Lock | 500 | 0.1 dB | Nickel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 500 V | 1 Connector 1 Contact 1 Ferrule | Brass | Silver | 1 GHz | 75 Ohms |
