PV3WF2 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSHBUTTON SPDT 2A 48V
| Part | Mechanical Life | Electrical Life | Switch Function | Termination Style | Ingress Protection | Illumination Voltage (Nominal) | Type | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Marking | Illumination Type, Color | Actuator Type | Current Rating (Amps) | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

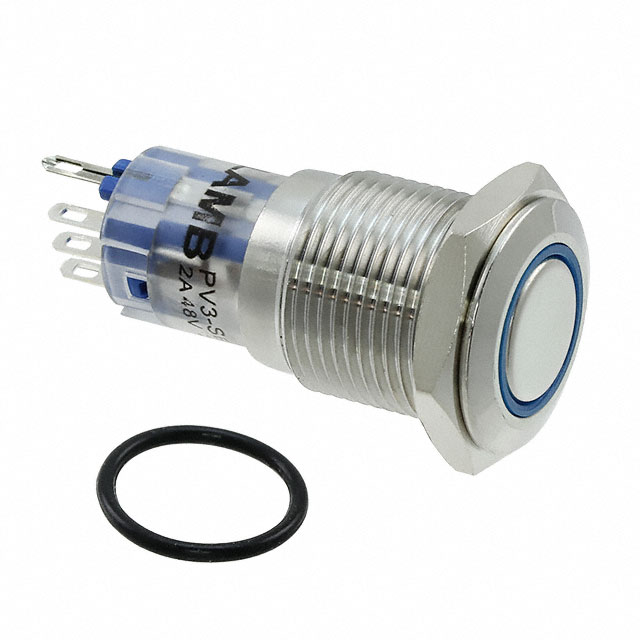

 E-Switch | 200000 Cycles | 50000 Cycles | On-Mom | Solder Lug | IP67 - Dust Tight Waterproof | 2.8 VDC | Anti-Vandal Illuminated | 16 mm | 48 V | Panel Mount Front | 55 °C | -20 ░C | SPDT | No Marking | Blue LED | Button Flush Round | 2 A | Silver |

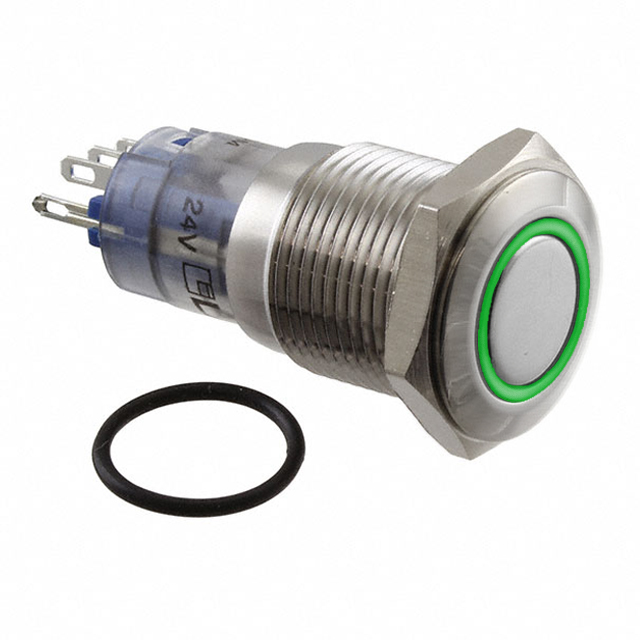

 E-Switch | 200000 Cycles | 50000 Cycles | On-Mom | Solder Lug | IP67 - Dust Tight Waterproof | 24 V | Anti-Vandal Illuminated | 16 mm | 48 V | Panel Mount Front | 55 °C | -20 ░C | SPDT | No Marking | Green LED | Button Flush Round | 2 A | Silver |
